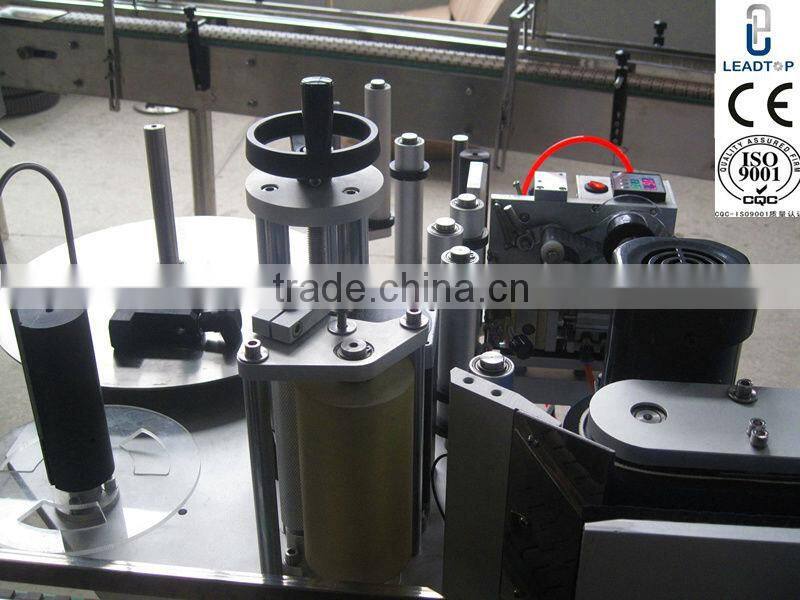

MT-200 Round Bottle Automatic Labeling Machine

Summary:

MT-200 model vertical type round bottle non-dry tape marking machine, in order to achieve rationalization of production target and design. Labeling process automation, simple operation, the production speed is quick, labeling position, beautiful, neat, For pharmaceutical, chemical and foodstuff trades etc circular vessels labeling.

Working principle:

The machine can packing different objects into labeling machine belt conveyor, by driving a bottle into the bottle conveying institutions, continuous motion by depending on fiber detected after bottle, photoelectric signal transmission to PLC, by PLC output signal processing will lose to the stepping motor, the standard of stepping motor, through the rolling institutions will stick son, tag labeling of objects by labeling machine conveyor belt into the next procedure or containers.

Main machine running adopts stepping motor driver, sets of (Taiwan) PLC control system, sets of (Taiwan) touch screen, keyence fiber (Japan) device etc imported components, gathers numerous leading technology, make it become the industry has the advantage of technology products.

Microcomputer automatic control, interface screen friendly human-machine interface, ingenious mechanical structure, make the operation simple and powerful function, Can realize tag number, counting, set print control, labeling, lack of control, marking, colorless such abnormalities automatic detection and alarm functions, Random capacity and the quantity management label, Adjust tightness labels, The length and tags, Host height and adjust position before, Optional ribbon typewriter one, Labeling and tag with reaction degree detection.

The machine adopts high-quality T6 aluminum and stainless steel SUS304, well made, in conformity with the requirements of GMP.

Main Technical Data:

Driver:

Stepping motor

Operation:

Right or left

Poster speed:

0-200 PCS/min

Packaging Range:

20 - 100mm diameter

Height 25-350mm

Label size

width 10-150mm length 15-200mm

Labeling precision

+ 1mm (depending on the bottle degree, perpendicular round)

Maximum diameter volume label:

dia.300mm

Coil diameter:

Dia. 75mm label

Weight:

200kg

Power supply:

AC220V  0.5Kw 60HZ

Overall Size:

2000X1300X1500

Ribbon Coding machine:

HP 260Q
