MT-130A Carton single side seal sticker automatic labeling machine
- 25 Set / Sets per Month
- Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Chemical, Commodity, Food, Medical | Packaging Type: | Cartons |
Packaging Material: | Paper, Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V 50/60Hz | Power: | 800W | Place of Origin: | Zhejiang, China |
Brand Name: | LTPM CHINA | Model Number: | MT-130A | Dimension(L*W*H): | 2200*1400*1500MM |
Weight: | 180KGS | Certification: | CE,GMP | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

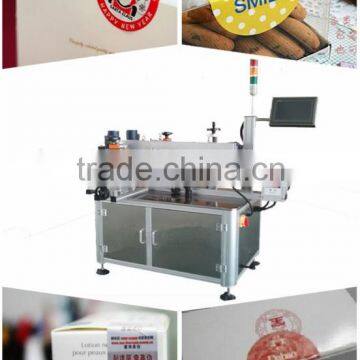

MT-130A Carton single side seal
sticker automatic labeling machine
Device characteristics:
--Adopt mature technology PLC control system, operation is stable and high-speed.
--Using touch-screen control operating system, simple and efficient.
--Upgrade new standard station design, the angle can adjust depends on different carton size.
--Top press device ensure stability of carton when labeling, particularly applicable for light and small cartons.
--Combine the characteristic of light label objects, adopt Belt conveyor with High stability.
Mechanical Design:
1. Using side label method, add Press carton structure, ensure the stability of carton.
2. When the label touch the carton, the brush firm the front label; make sure the label is smooth and firm.
3. Conveyor speed can be adjusted to match up the send label speed, ensure label no wrinkle.
4. The inverter control the Motor, make sure the conveyor speed,press carton speed and send label speed synchronous operation, label surface is smooth and label position is accurate.
5. The durable engine and parts are solid and durable, adopt standardized modular design completely interchangeable, 24-hour operation ensure the security and stability.
6. The whole machine use S304 stainless steel and anodized senior aluminum alloy, Never rust and with high corrosion resistance.
Technical Parameters:
Model | MT-130A |
The standard system | Servo Motor |
Capacity | 20-130 carton/min |
Operating Direction | Left or right |
Label speed | ≤35 m/min |
Tags volume inner diameter | 76 mm |
Tags volume outer diameter | 350 mm (max) |
Label Specifications | Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand) |
Labeling accuracy | ±1.0mm (subject to the roughness of the plane) |
Weight | 180KGS |
Total motor power | 800W |
Power supply | AC220V 50/60HZ Single phase |
Size appearance (mm) | 2200 (L) 1400 (W) 1500(H) |
Coding Machine for Expiring date and Production Date Printing:

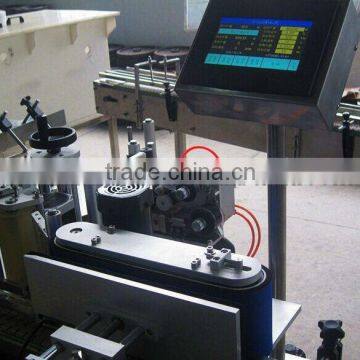

Touch Screen Operation:
1. 24*7days hotline service.
2. Technology Support: we offer engineer at site training and intsllation service all over the world.
3. Documentation: DQ, IQ, OQ, PQ, FAT, SAT, Manual, etc for GMP validation purpose.
4. One year spare parts Free Guarantee
5. Production Solution Suggestion
LTPM CHINA Your Best Pharmaceutical Production Solution ! Welcome to contact us for more information.
