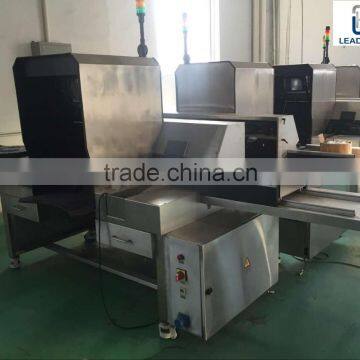

LTDJ-150 Bottle light Inspection Machine

Simple Instruction:

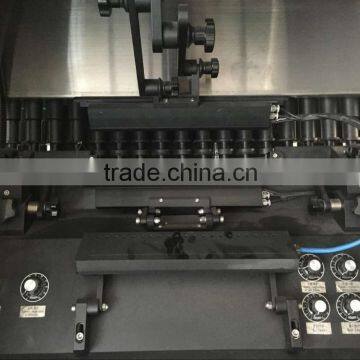

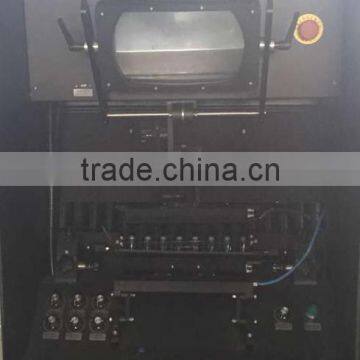

   The Preparation bottles are orderly arranged on the conveying shaft through the bottle feeding device. When entering into the high speed automatic rotation section, the impurities in the solution in the bottles will float, then they will pass through the dark inspection room and advance through rotation, and they will pass through the light curtain of focused light source in turn. The Tyndall effect( in a darkroom, make a beam of parallel light pass through the sol that is absolutely transparent viewed by luminous light column can be observed, among which particles twinkle, this phenomenon is called Tynall effect.) produced granules, and therefore they are easily indentified. Various slight products through the low power magnifier. With the Aid of hte PLC automatic control system, the inspector just needs to identify defective products, and the conforming and nonconforming products can automatically enter their respective channels through the automatic rejecting system.

Feature:

1)       High effciency: The inspeciton efficiency is enhanced and the operation intensity is reduced, so that the inspector can concentrate on inspecting product defects.

2)        Wide application range: It can inspect ampoule bottles, vials, prefilling syringes, large infusion bottles, cartridge syringes for dentistry.

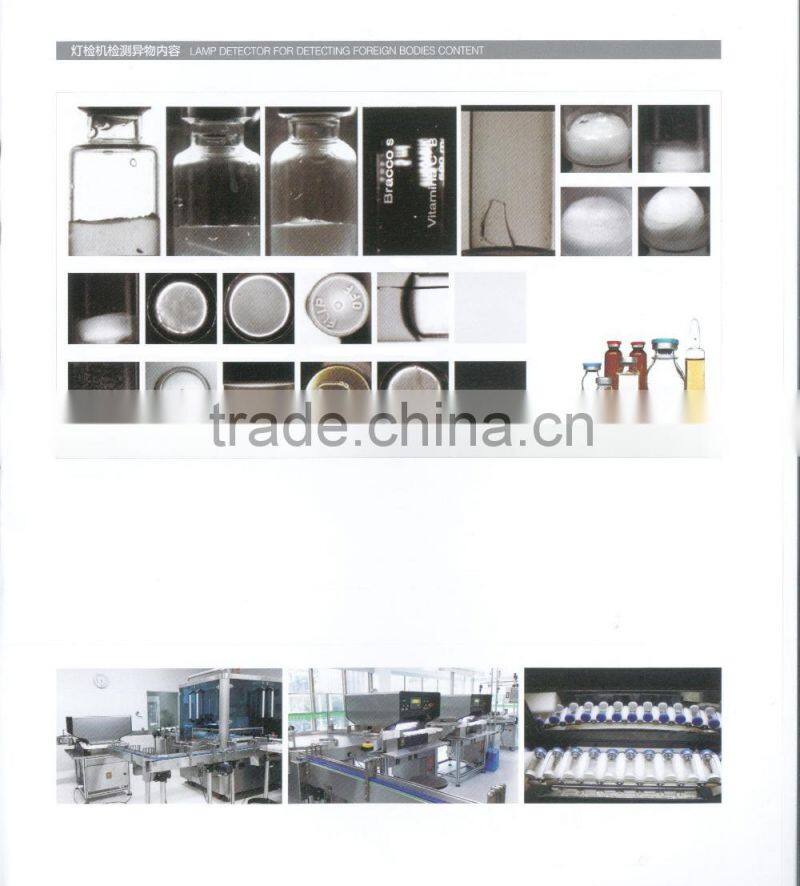

3)        It can inspect various defects simultaneously: granules, impurities, glass vessel apprearance defects, microwave cracks.

4)       The Tynall effect is adopted, and hte focused light curtain intensifies the contrast of impure granules, easily indentified.

5)        The adjustable high efficiency cold light source makes the inspection more effective in conjunction with the reflector and low power magnifier.

6)        The turning speed of the net belt and the rotation speed of the roller are adjustable so as to achieve the best inspection angle.

7)        The light source color temperature can be selected with adjustable illuminance and angle so as to achieve the best inspection effect.

 Main Technical Data:

For more informations, please contact us by mail or telephone call.
