EP14 T25-13HP3 LED Light

Name: EP14 T25-13HP3 LED Light
Price: Negotiable

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Product Details

LED Light Source:	Warm White	Type:	Corn Lights	Input Voltage(V):	24
Lamp Power(W):	3.5	Lamp Luminous Flux(lm):	150	Lamp Luminous Efficiency(lm/w):	150
Color Temperature(CCT):	Warm White	Working Temperature(℃):	3000, 4000	Working Lifetime(Hour):	50000
Lamp Body Material:	Iron	Base Type:	E14
Place of Origin:	Taiwan	Model Number:	EP14 T25-13HP3

Indicators EP14 T25-13HP3 LED Light

Specification

EGTech Technology products EP14 T25-13HP3 24V on web

EP14 T25-13HP3 24V LED Bulb Electrical and Optical Charactertics

Type	Red	Yellow	Blue	Green	White
LED SMD Type	5050-3	5050-3	5050-3	5050-3	5050-3
LED Quantity	13	13	13	13	13
Single Intensitv(mcd)	5054	6582	2431	10210	13560
Color Temperature(K)	1001	1429	>=100000	7468	7000~9000
View Angle(Degree)	180	180	180	179.6	180
Wave Length(nm)	630	590	470	515	X:0.282, Y:0.291
Voltage(V)	24	24	24	24	24
Current(mA)	150	150	150	150	150
Power consumption(W)	3.6	3.6	3.6	3.6	3.6
Luminance(LM)	78.3	84.96	24.75	115.14	149.82
Operating Temperature(Degree C)	-20 ~ +50	-20 ~ +50	-20 ~ +50	-20 ~ +50	-20 ~ +50
Storage Temperature(Degree C)	-40 ~ +100	-40 ~ +100	-40 ~ +100	-40 ~ +100	-40 ~ +100
Dimension(DxH mm)	23.5x54.7	23.5x54.7	23.5x54.7	23.5x54.7	23.5x54.7
Life Cycle(hrs)	30000	30000	30000	30000	30000

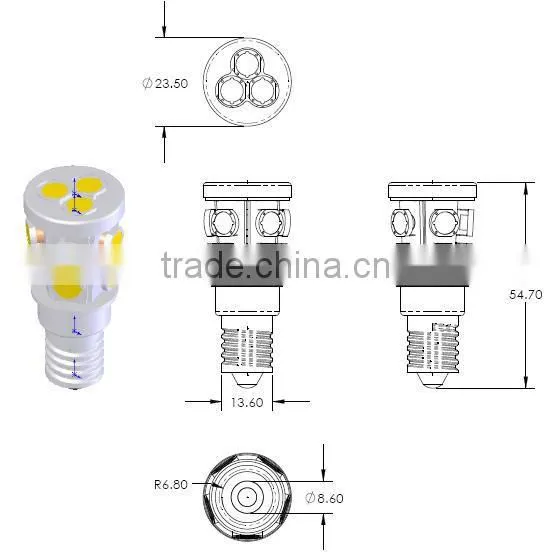

Outline Drawing
