Full Automatic Rain Water Gutter Roll Forming Machine & Equipment

Full Automatic Rain Water Gutter Roll Forming Machine & Equipment photo-1
Full Automatic Rain Water Gutter Roll Forming Machine & Equipment photo-2

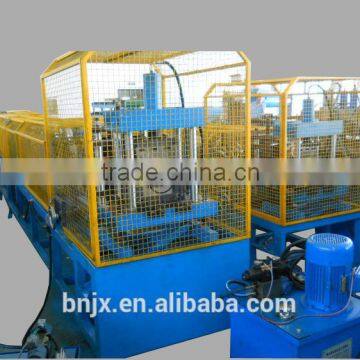

Full Automatic Rain Water Gutter Roll Forming Machine & Equipment photo-3

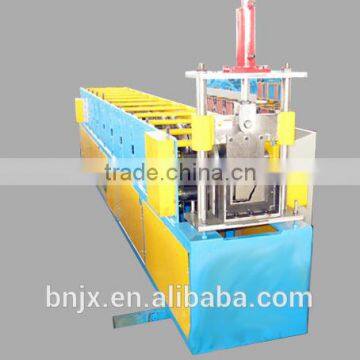

Full Automatic Rain Water Gutter Roll Forming Machine & Equipment photo-4

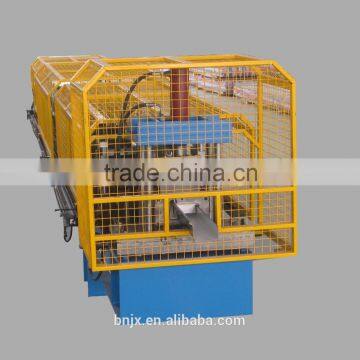

Full Automatic Rain Water Gutter Roll Forming Machine & Equipment photo-5
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Bender
Pipe Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Pipe Bender
Pipe Material Stainless Steel
Application Drain Pipe
Production Capacity 10m-15m/min
Place of Origin Jiangsu, China
Brand Name BN
Model Number Downpipe Machinery
Voltage 380 V, 50 Hz, 3Phase
Power(W) 5.5KW
Dimension(L*W*H) 7600*1600*1600
Weight 7
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Main Features

1.machine adopt advanced technicall

2.high quality of the structure

3,one year warranty

4.more the 10 years experience

profile


Equipment Flowsheet
Detailed Technology
3T hydraulic decoiler
Coil weight (Max)
3000kg
Inter diameter of coil
420mm-510mm
Working by hydraulic pressure
8-12Mpa with connect with the decoiler hydraulic unit
Working lift journey
Maximal 250mm
Working function
forward and reverse movable
Move journey
maximal 2 meters
Forming Section
 Roller material
ASTM1045 chrome plated surface with chrome,CNC,
Thickness range
0.3-0.8mm
Main motor power
5.5kw, AC motor, motor inside of main machine
Roll station
about 16 stations (according the final design)
Shaft diameter
¢65mm
 Machine roll forming speed
 not less than 12m/min
Transmission
by chain, one inch, Single line
Post cutting system
Material of blade
Cr12, 58-62 HRC hardness
Cutting power
hydraulic, 5.5KW
Working pressure
12Mpa adjustable
 Length measuring
Automatic encoder length measuring
brand
Omron
Tolerance of length
+/- 1.5mm for each piece end product
The cutting sequence is also contained and controlled by the same PLC program
Hydraulic station
Hydraulic power
5.5kw
Working pressure
12Mp adjustable
Solenoid valve
1 groups
Hydraulic oil
46# hydraulic oil
Color
Blue (or base on customer request)
Quantity
1
Control desk
Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme will be provided.

 language
English and Chinese
Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Control panel
Button-type switch and touch screen
Unit of length
millimeter
PLC brand
Panasonic
Packing & Delivery

No paking, directly fix the machine to the container with belt and wood.

Our Service

1.1 year and life-long maintenance;

2.Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;

3.Installation Days:about 5-7 days


Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!

Certifications
Our Company

Our main products include roll forming machines, guardrail roll forming machines, steel deck forming machines, door & window frame roll forming equipment, steel metal door making lines, guide rail rollforming machines, upright post roll formers, pipe and tube roll formers, purlin cold roll forming machines, T-bar forming machines, grape trellis roll forming machines, roof tile forming machines, steel metal panel roll forming machines, stud and track forming machines, cable tray roll forming machines, shelf rack making machines, gutter roll forming machines, roller shutter manufacturing lines, car bumper forming machines, car door forming machines, distribution cabinet making machines, channel roll forming machines and so on.
