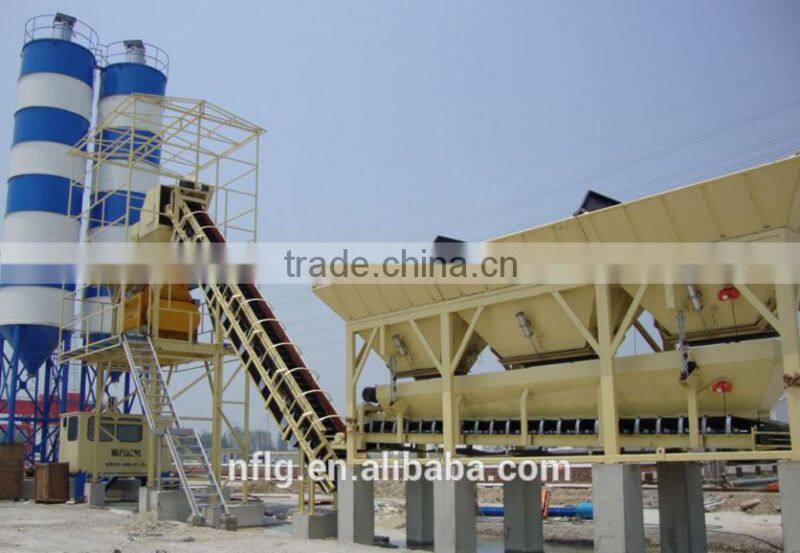

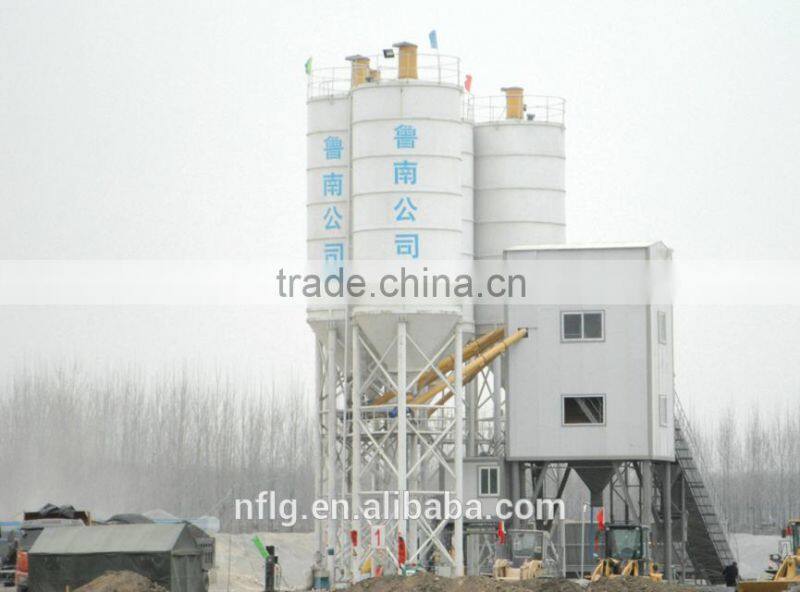

180m3/h,HZS180 modular concrete batching plant
Price Service Product Service Technology Service
1. Brief introduction for modular concete batching plant
The concrete mix plant is developed by NFLG on the base of absorbing latest technology achievement and applying rich experience
of NFLG in the field of concrete mix plant. It’s suitable to be used in bridge, road, dam, airport and other big scale construction
project.
2. Characteristics for modular concete batching plant
1. Modular design, convenient to relocate and transfer, it takes just5-7 days to complete installation;
2.Compact structure, requires little land;
3.Completely mobile steel structure foundation;
4.Accurate dosage system, ensuring concrete quality;
5. Intelligent management system, easy to operate;
6. Green and environment friendly, fully enclosed structure, effectively controls dust and noise pollution.
3.Parameters for modular concete batching plant
| modular concete batching plant | |||||||
|---|---|---|---|---|---|---|---|
| Model | HZS50 | HZS75 | HZS100 | HZS150 | HZS200 | ||
| Productivity | 50 | 75 | 100 | 150 | 200 | ||
| Mixer | Model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | |
| Power(Kw) | 2×22 | 2×30 | 2×37 | 2×55 | 2×75 | ||
| Output(m3) | 1 | 1.5 | 2 | 3 | 4 | ||
| Aggregate Size(mm) | ≤80 | ≤100 | ≤120 | ≤150 | ≤150 | ||
| Capacity(m3) | 15 | 15 | 15 | 15 | 20 | ||
| Distribution bin | Number | 3 | 3 | 3 | 4 | 4 | |
| Belt conveyor capacity(m3/h) | 400 | 500 | 400 | 600 | 600 | ||
| Weighing range and tolerance | Aggregate scale | 2500±2% | 3500±2% | 4500±2% | 6500±2% | 4×4800±2% | |
| Cement scale | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | ||
| Fly ash scale | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | ||
| Water scale | 300±1% | 400±1% | 500±1% | 700±1% | 900±1% | ||
| Additive scale | 30±1% | 30±1% | 30±1% | 80±1% | 80±1% | ||
| Total power | 155 | 195 | 250 | 255 | 330 | ||
| Discharge height | 4 | 4.2 | 4.2 | 4.2 | 4.2 | ||
NFLG has already obtained 16 national science and technology progress prizes, 45 provincial science and technology progress prizes and several municipal or district-level science and technology progress prizes, together with 17 National Invention Patents, 204 National Utility Model Patents and 5 appearance patents.
Integrated Solution
NFLG is an experienced engineering company, specializing in development and manufacture of aggregate mining, waste processing, sand making and construction material making machinery and providing customer-tailored integrated solutions.
Service Support
24h Customer Service System
Here is the information center for contacting us. We will be on line around-the-clock, providing you with one-stop service including introduction to service outlets, product design, technical support, product complaints, service complaints, repair and stand parts consultancy. All your needs can be delivered in an accurate and effective manner. Our powerful personnel (information exchange center, product promotion center, industrial service center, customer satisfaction improvement center, customer behavior analysis center and so on) and technical strength will enable your needs to be delivered, replied and satisfied in first time. You can contact us any time anywhere through the contact information on your PC or phone.
Carefree Cloud Service System
NFLG cloud service system can collect data of equipment operating status and physical condition of parts with its automation control and Internet of Things and send data to cloud servers through Internet or wireless networks. Then the technical service team of NFLG will analyze such data professionally and initially supply customers with remote equipment diagnosis and maintenance, thus realizing the housekeeping style carefree cloud equipment service. Additionally, the analysis, suggestion and other value-added services, such as, energy saving, cost reduction, efficiency and quality improvement and business-assisted management.
Technical expert team
The expert team consisting of doctors, masters, senior engineer, professors, doctoral advisers and other high-level technical talents has the capability of overcoming difficulties independently or jointly with colleges and universities.The expert team is equipped with a 500m² lab center to conduct experiments of cement concrete, asphalt concrete and dry mixing mortar materials as well as detection & analysis of raw materials.
Our Advantage
Strength of R&D: The dedicated spirit of products leads engineering mixing;
Digital production: information- oriented, data- oriented,intelligence-oriented
Cloud platform: NFLG develops a cloud platform service system;
Equipment Upgrading:A new plant with service-created values -- upgrading and renovation of NFLG old plant;
- An expert service team
- "low price high value"service
- Energy saving and low carbon
We have a professional installation and after-sales staff;
We have the largest factories and production capacity;
We have a professional sales and service team;
The NFLG, worthy of your trust!
