Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Inspection Machine For All Type Defect In Printing Processes

Inspection Machine For All Type Defect In Printing Processes

Inspection Machine For All Type Defect In Printing Processes photo-1

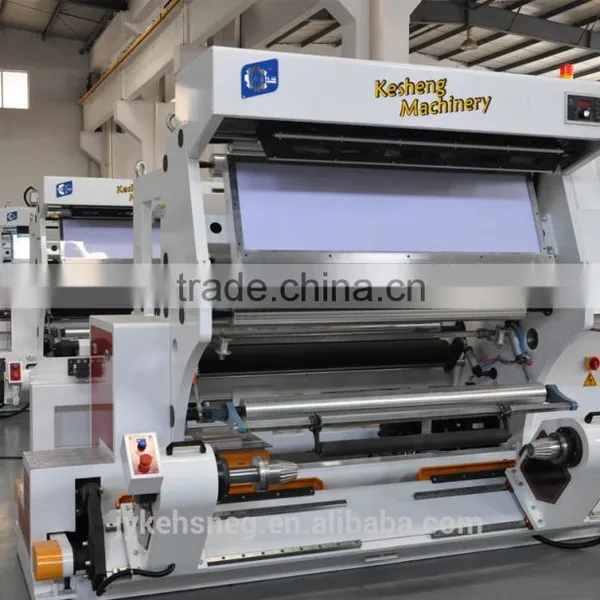

Inspection Machine For All Type Defect In Printing Processes photo-2

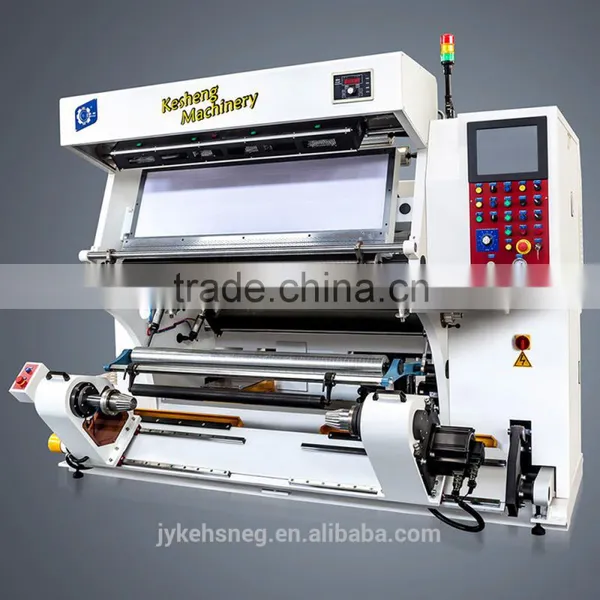

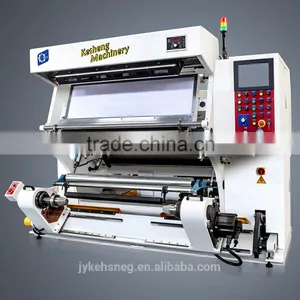

Inspection Machine For All Type Defect In Printing Processes photo-3
Inspection Machine For All Type Defect In Printing Processes photo-4

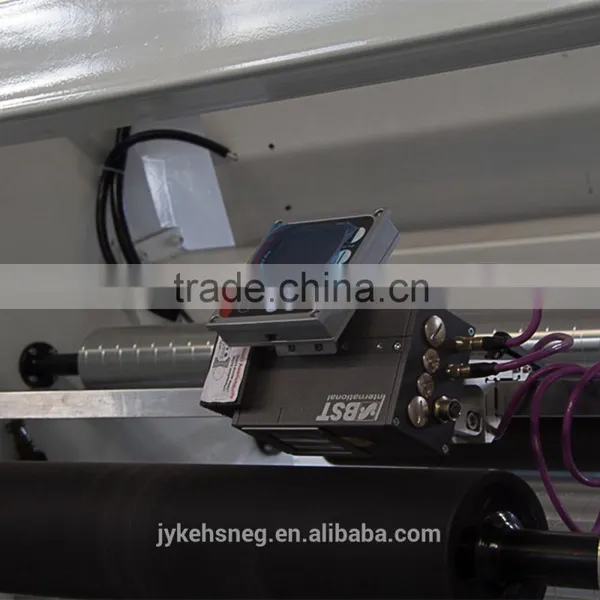

Inspection Machine For All Type Defect In Printing Processes photo-5
Inspection Machine For All Type Defect In Printing Processes photo-6
US$ 65,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Packing machienry
Packaging Type:
Cartons, Film
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Packing machienry
Packaging Type Cartons, Film
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Other, electric/pneumatic/Hydraulic
Voltage 380V/50HZ(Customized)
Power About 15KW
Place of Origin Jiangsu, China
Brand Name KESHENG
Model Number KJP-A
Weight About4200KGS
Dimension(L*W*H) L3000*W2300*H2300mm
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

                 Inspection Machine For All Type Defect In Printing Processes

 With advanced tech,a full range of defects can be 100% inspected.Such like black spot/missing print/dirty spot deckle/color cast/mis-registration.

Inspection Machine For All Type Defect In Printing Processes

 Click here to view all our topest inspection machines>>

Application Range

Inspection Machine For All Type Defect In Printing Processes



Machine Parameters

Unwind width range

Max1300mm

Rewind Max diameter

φ800mm

Unwind Paper tube diameter

3” 6”

Rewind Paper tube diameter

3” 6”

Unwind Max diameter

φ800mm

L/EPC Correction Accuracy

<±0.3mm

Mechanical speed

350m/min

Tension setup range

3-30kg

Rewind accuracy

±0.3mm

Traction motor power

3.0KW

Rewind motor power

5.0KW

Inspections System

Optional

Unwind motor power

5.0KW

Material thickness range

12um-150um

Tension control

PLC(Panasonic Japan)

Web guide control

BST(Germany)

Note:Inspection System is not incluing the price.Our machine can communicate with any inspection system.This type is uaually with stroboscope for manual eye inspection or chinese brand on-line inspection system.
What KeSheng Do

Inspection Machine For All Type Defect In Printing Processes

Why KeSheng

√ OEM ODM Slitter Manufacturer With 10 Years Factory Experience;
√ Alibaba Gold Supplier With Trade Assurance Payment Supported;
√ Own Steel Material Market,CNC Processing Machine,International Standard No-dust Workshop;
√ European Quality,China Price;
√ Business Contract And Non-disclosure Agreement Are Always Ready For You;
√ Excellent Team Service,Customers Can Easily Reach Us Rapidly(24*7 Hours Available);
√ Powelful design team,Rich Experience Engineers,Top Before Service and After Service;
√ Focus On Every Detail,Every Process;
√ Power Capabilities To Help You Win More Benefit And Markets By Our Cost-saving Solutions.
√ Strict QC System, 7S Management, ISO9001:2008 Certified Company;
