Inspector For Detecting The Printing Quality

Inspector For Detecting The Printing Quality thumbnail-1
Inspector For Detecting The Printing Quality thumbnail-2
Inspector For Detecting The Printing Quality thumbnail-3
Inspector For Detecting The Printing Quality thumbnail-4
Inspector For Detecting The Printing Quality thumbnail-5
Inspector For Detecting The Printing Quality thumbnail-6
Inspector For Detecting The Printing Quality photo-1
Inspector For Detecting The Printing Quality photo-2
Inspector For Detecting The Printing Quality photo-3
Inspector For Detecting The Printing Quality photo-4
Inspector For Detecting The Printing Quality photo-5
Inspector For Detecting The Printing Quality photo-6
US$ 80,000 - 85,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Packing machienry
Packaging Type:
Cartons, Film
Contact Supplier Request Quote Chat Now
Jiangyin Kesheng Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Packing machienry
Packaging Type Cartons, Film
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Other, electric/pneumatic
Voltage 380V/50HZ(Customized)
Power About 15KW
Place of Origin Jiangsu, China
Brand Name KESHENG
Model Number KJP-E
Weight About5000KGS
Dimension(L*W*H) L2950*W2400*H2270mm
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

                           Inspector For Detecting The Printing Quality

 With advanced tech,a full range of defects can be 100% inspected.Such like black spot/missing print/dirty spot deckle/color cast/mis-registration.

 Inspector For Detecting The Printing QualityInspector For Detecting The Printing Quality

Inspector For Detecting The Printing Quality

Click here to view all our topest inspection machines>>

Application Range

Inspector For Detecting The Printing Quality



Machine Parameters

Unwind width range

Max1300mm

Rewind Max diameter

φ800mm

Unwind Paper tube diameter

3” 6”

Rewind Paper tube diameter

3” 6”

Unwind Max diameter

φ800mm

L/EPC Correction Accuracy

<±0.3mm

Mechanical speed

400m/min

Tension setup range

3-30kg

Rewind accuracy

±0.3mm

Traction motor power

3.0KW

Rewind motor power

5.0KW

Inspections System

Optional

Unwind motor power

5.0KW

Material thickness range

12um-150um

Tension control

PLC(Germany Beckhoff)

Web guide control

BST(Germany)

Functions KJP-E Inspector For Detecting The Printing Quality

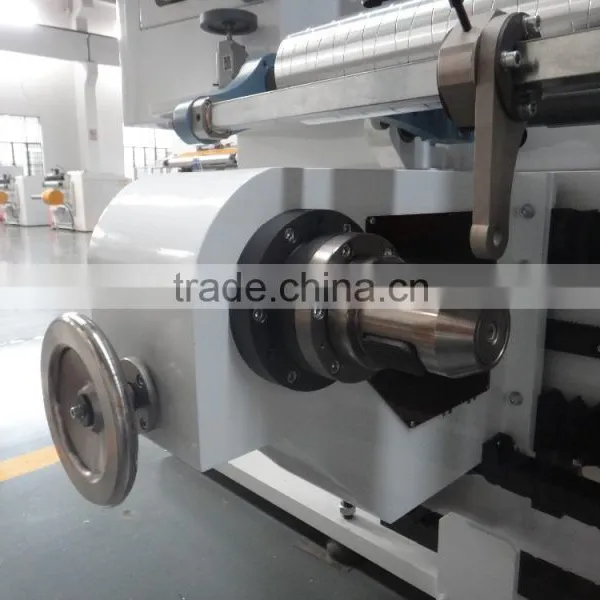

Unwind:
√ Shaftless,pneumatic clamp.3&6 inch are both available.
√ Web guide:Germany BST web guide control,tracking edge or printing line.
√ Motor drive:Japan panasonic Servo motor.
√ Unwind tension:Italy Re pressure sensor detect tension,tension controlled by PLC(Germany Beckhoff).
√ Diameter calculater:By encoder,Machine will alarm when short of material automatically.
√ Press roller:Pressure adjusted by SMC precision pressure regulating valve.
Traction:
√ Motor drive:Japan panasonic Servo motor.
√ Traction roller:Roll surface adopt mirror polish treatment to ensure running stably for hig speed.
√ Traction press roller:Rubber roller,pneumatic control,air pressure can adjust according to the material.
√ Meter counter:By encoder.Machine will automatically stop when reach the target meter.
                          Traget meter can set up in the touch screen.

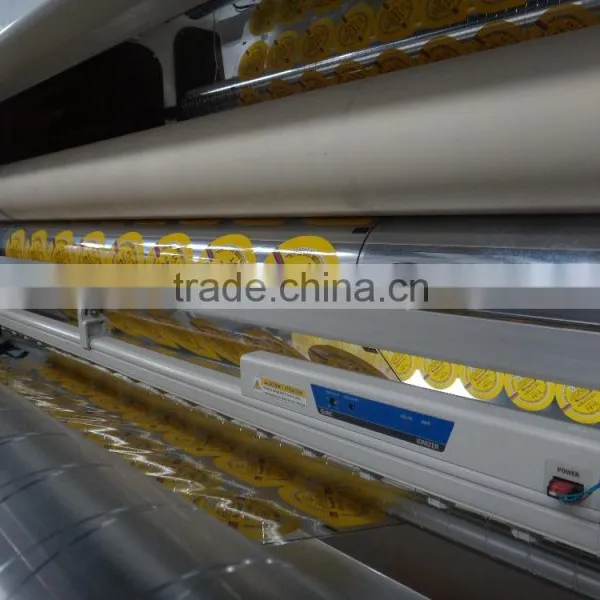

Inspection:
√ Observation light box:L1400*W400mm to easy observe.(This part is optional).
√ Detect:We save the position for update for 100% on line inspection.
√ Splice table:Easy to cut and join the material better on this platform.

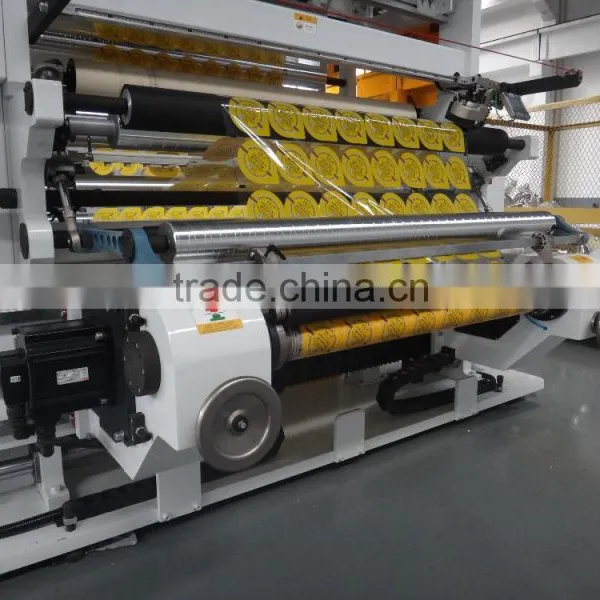

Rewind:
√ Shaftless,pneumatic clamp.3&6 inch are both available.
√ Motor drive:Japan panasonic Servo motor.
√  Rewind direction:Forward&Backward.
√ Rewind tension:Italy Re pressure sensor detect tension,tension controlled by PLC(Germany Beckhoff).
√ Diameter calculater:By encoder,Machine will alarm when short of material automatically.
√ Press roller:Pressure adjusted by SMC precision pressure regulating valve.
Other configurations:
√ Steel structure.
√ All the rotate part adopt NSK bearings.
√ All the machine part are made by CNC machine.
√ All the operation place have emergency stop button to keep savety.
Customized is available!Customized is available!Customized is available!
Note:Inspection System is not incluing the price.Our machine can communicate with any inspection system.We
         have already cooperated with AVT from Israel and FUTEC form Japan.
What KeSheng Do

Inspector For Detecting The Printing Quality

Why KeSheng

√ OEM ODM Slitter Manufacturer With 10 Years Factory Experience;
√ Alibaba Gold Supplier With Trade Assurance Payment Supported;
√ Own Steel Material Market,CNC Processing Machine,International Standard No-dust Workshop;
√ European Quality,China Price;
√ Business Contract And Non-disclosure Agreement Are Always Ready For You;
√ Excellent Team Service,Customers Can Easily Reach Us Rapidly(24*7 Hours Available);
√ Powelful design team,Rich Experience Engineers,Top Before Service and After Service;
√ Focus On Every Detail,Every Process;
√ Power Capabilities To Help You Win More Benefit And Markets By Our Cost-saving Solutions.
√ Strict QC System, 7S Management, ISO9001:2008 Certified Company;

Company Information

 Inspector For Detecting The Printing Quality

                                                                                                    CNC Machine

 Inspector For Detecting The Printing Quality

Assemble Drawing

                                                                                                      Working Flow



                                                     Our International Standrad Dust Free Workshop

Inspector For Detecting The Printing Quality



Exhibitions

   We take part in more than ten times fairs every year such us Chinaplas,Dupar Fair,Plastic And Rubber Indonesia,

   Plastivision Inida.As a result,Now we have established long-time and friendly cooperation with many famous

   enterprises.I want share with the fair time in below pictures.

  Inspector For Detecting The Printing Quality

                                                                 Warmly Welcome To Visit Our Factory

Inspector For Detecting The Printing Quality

Package&Delivery

                                                                                     Standard Sea Package

Inspector For Detecting The Printing Quality
