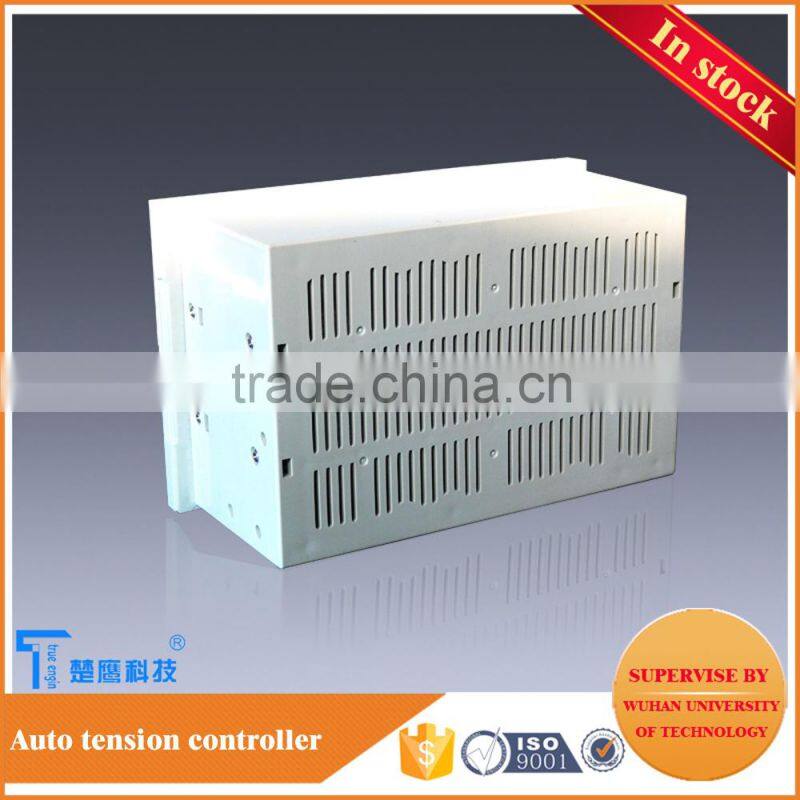

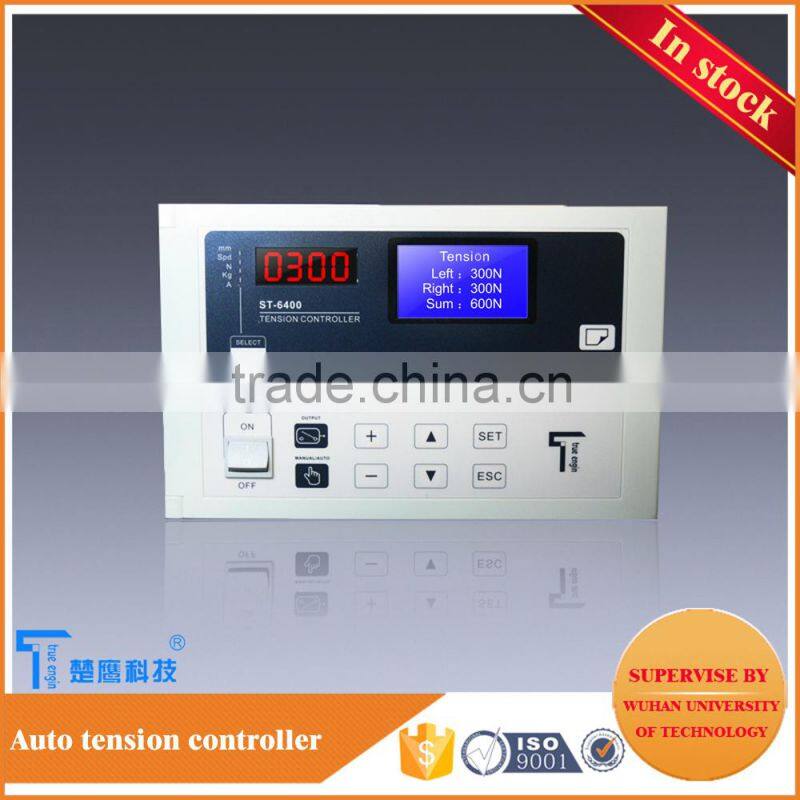

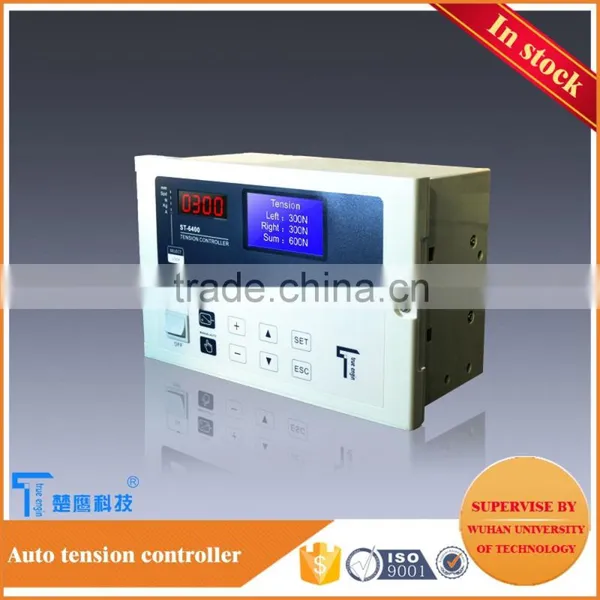

PID Caculation Auto tension controller

FOB Price

USD $350 - $450 / Unit

1 Unit(Min.Order)

Product Details

Place of Origin:	Hubei, China	Brand Name:	True Engin	Model Number:	ST-6400
Type:	Roller	Use:	Other, Mitsubishi	Printing Type:	Offset Printing Machine

ST-6400F Auto tension controller (Feedback type)

Outline and installing size

Characters:

*User parameters are optional,Can reduce the amount of common use parameters

*Calculus by the algorithm can achieve taper tension control

*Automatic recognition, automatic adaptation electric, speed startup mode

*With stop output memory function

*STS,STSA tension loadcell for option

*Double location switch,Speed-up Speed-down tension automatically compensation

*Intelligently adapt to PID calculation,stable control,no overshoot

*Over-current, overheating protection switching power supply, long-term reliable operation

Parameters
Model		ST-6400
Power Supply		AC 180~260V 50/60HZ
Input	Analog singal	1.L+~L-;R+~R-;Left,right tension loadcell signal input STS tension loadcell signal (0~200mv,power supply DC5V) STSA tension loadcell signal(0~15mv;power supply DC5v) 2.AI1.AI2:two roads external analog voltage input 0~10V/0~5V
	Digital signal	1.MC0:Main axle proximity switch speed signal ( proximity switch PNP Type,voltage supply DC24V) 2.MC1,MC5,MC6:points control signal (24V+high electric control signal)
Output	Main output	PA,PB:Two roads 24V/4A power output directly drive magnetic powder clutch or brake
	Auxiliary output	SA,SB:Two roads DC0~10V/0~5V output can drive torque type inverter Synchronously, SA and PA main axle output changes synchronously,SB and PB main axle output changes synchronously.
Outline size		246154114mm

Wuhan True Engin Technology Development Co., Ltd.: Contact nameCassie Xiong; Phone86-27-18963972711; Address D-1-011, Family Housing Type Office Building, Nanhu Agricultural Park, No. 501, Luoshi South Road, East Lake Development Distric Wuhan,Hubei
