Specifications
1. high Adhesion Strength2. super Holding Power
3 good Conductivity
4. CTI certificated.
FEATURES:
1) Soft aluminum foil, coated with aggressive solvent-based
acrylic adhesive, which provides with high peel adhesion and quick
sticking
2) Designed for sealing joints and seams of foil jacket facings in
air-conditioning duct work and for fixing copper tubing in
refrigerators
Specifications:
1) Foil Thickness: 20.30, 40, 50, 70,100μ
2) Roll width: 48, 50, 60, 72, 75, 96, 100mm
3) Roll length: 27, 30, 45, 50m
4) Log roll: 1.2 x 45m, 1.2 x 50m
5) Jumbo roll: 1.2 x 1200m, 1.2 x 1000m
TYPICAL PHYSICAL PROPERTIES:
PROPERTIES |
UNIT |
VALUE |
TEST METHOD |
Total Thickness (Foil + Adhesive) |
Micron |
65 |
Micrometer |
Peel Adhesion |
N/25mm |
18 ~ 22 |
PSTC-1 |
Rolling Tack (11mm ball) |
cm |
10 |
PSTC-6 |
Adhesion to liner |
N/25mm |
£ 0.5 |
PSTC-4 |
Applying Temperature |
°C |
+10 ~ +40 |
---------- |
Temp. Resistance |
°C |
-20 ~ +120 |
---------- |
Remarks:
1. The data above are typical results and subject to change without notice.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm;
Length: Cut Roll & Log Roll ±0.3m, Jumbo Roll ±0.5%.
3. The products should be stored at room temperature and kept from wet and heat source.
4. It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, and free of grease and oil.
5. The user should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for user’s special purpose and technique
Inner packing:
Cut roll: printed core and shrink wrapping
Log roll: cardboard wrapping
Jumbo roll: plastic film + corrugated board wrapping
Outer packing:
Cut roll: carton
Log roll: carton + pallet / wooden case
Jumbo roll: wooden case
Specifications:
1:Excellent quality.
2:24-hour online sevice.
3:Tailor-made.
4:Small order accepted.
5: State-of-the-art weaving & coating equipment.
6:One-stop shop of high quality fiberglass cloth.
7: timely delivery.

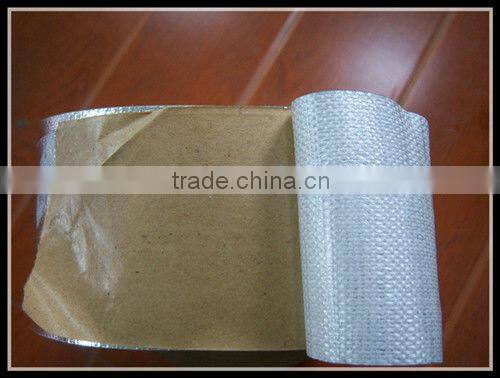

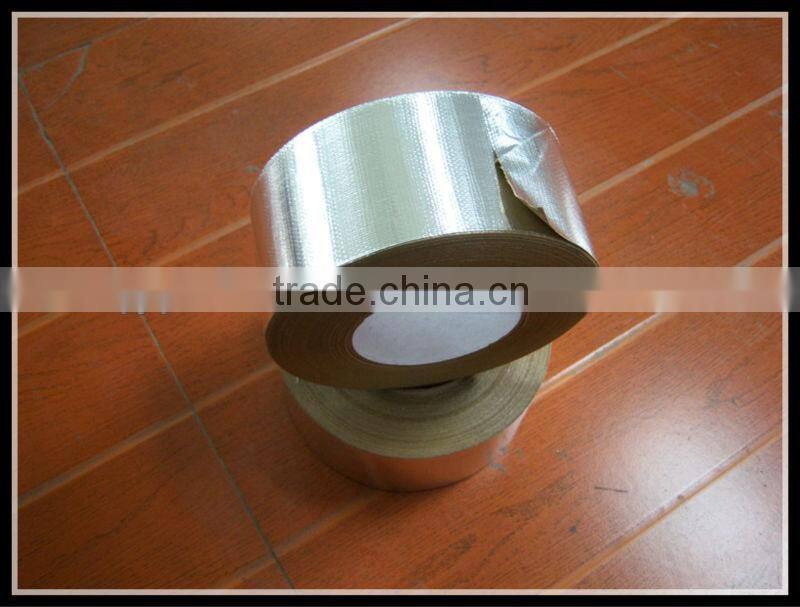

Product show

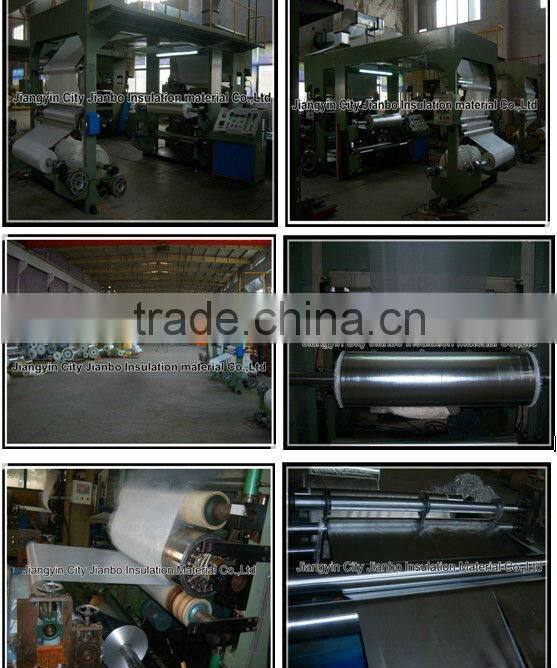

Production procedure
Application:
--Pipe protection
--Motor vehicle, construction, chemical, shipbuilding industry
--Fire seclusion cover

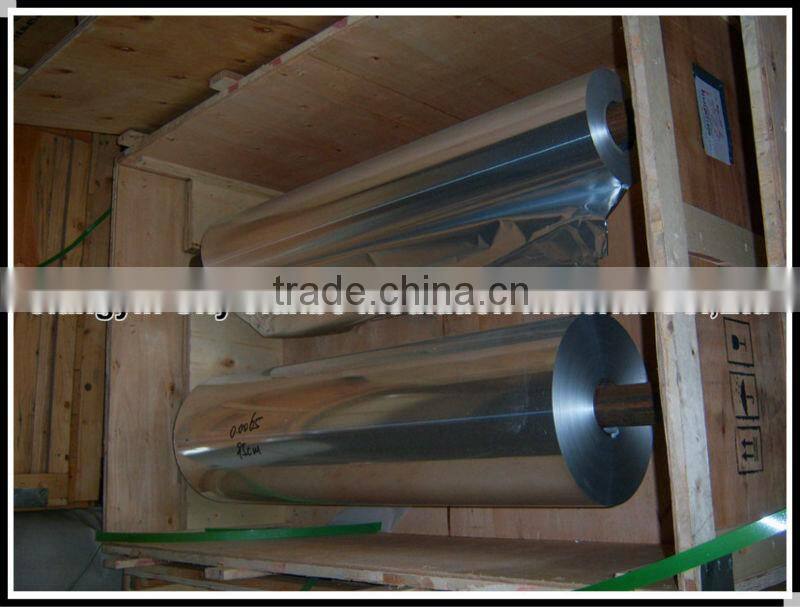

Row material:

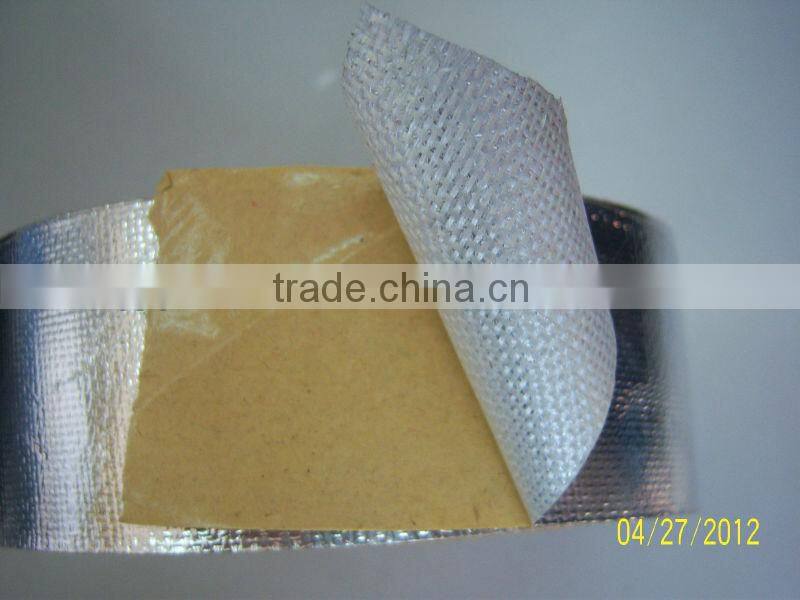

Out looking:

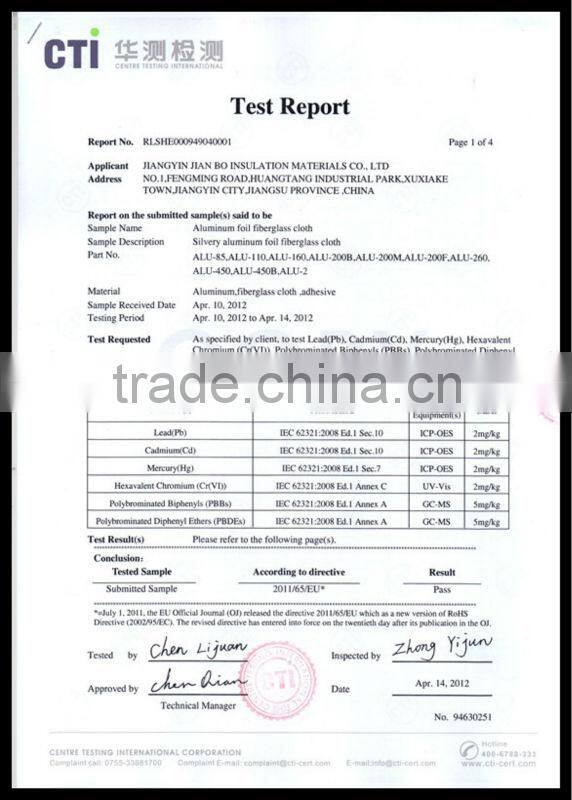

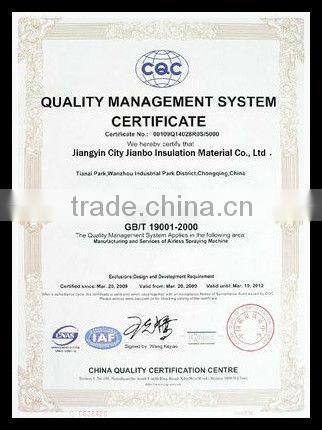

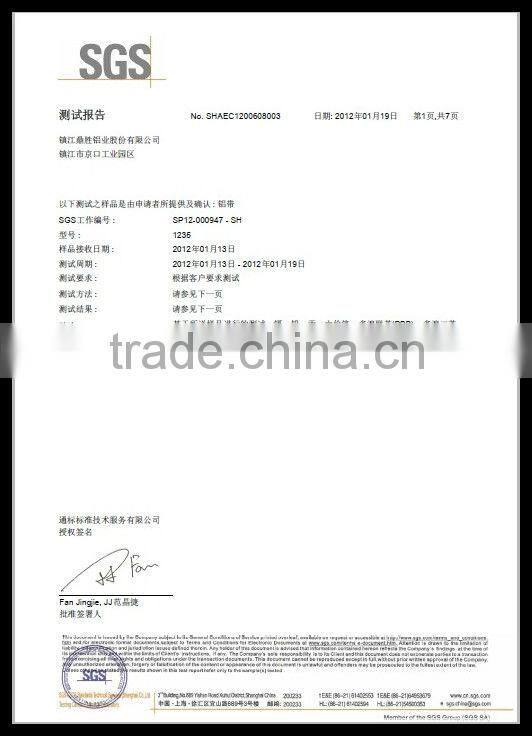

Certificated:
Very happy to receive your kindly inquiry of any items!
Have a nice day! (*^__^*) ……
