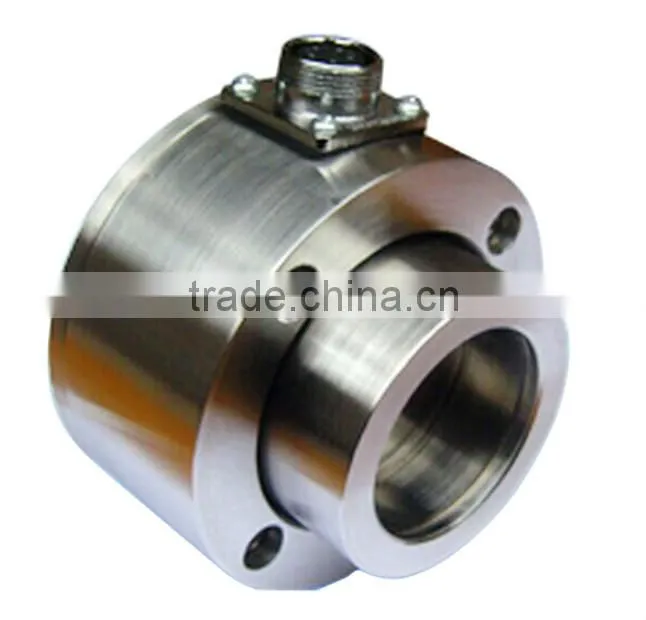

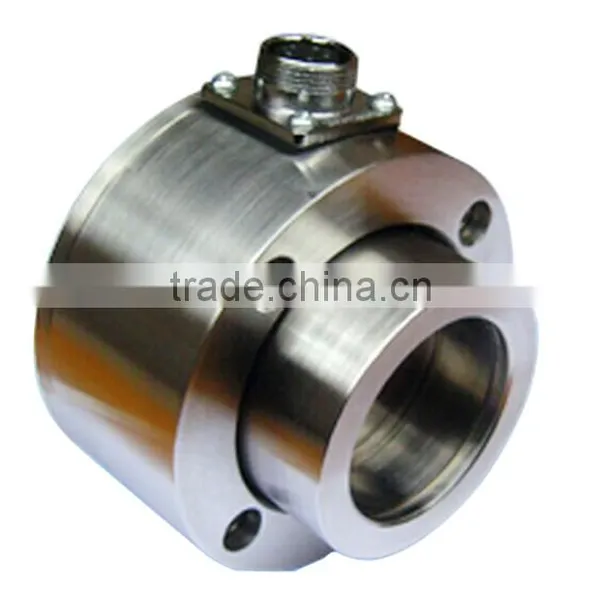

flange shaft tension sensor

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port ShangHai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China	Brand Name	True Engin
Model Number	STSF flange tension sensor	Use	Textile Finishing Machinery
Type	Sensor

Product Description

Specifications

Movable shaft tension sensor
1.High accuracy
2.Easy to install
3.Wholesale price
4.Fast delivery.

Movable shaft tension sensor

Features & Applications:

FLANGE Tension sensor design in movable shaft structure, in the production process of ontinuous material, it is easy to replace the tension measuring roll. It can be mounted on the side of equipment with bolt, it can also be installed in the top of the device through the mounting bracket matching. Electrical connector surface sensor has a red dot indicating the positive direction of sensor axis. Even wrap angle of the material is smaller, it also can ensure the accurate measurement of tension when the dead-weight of tension measuring roll is big.

Technical features:

10 times overload capacity, zero point stability, no need to re-calibrate the sensor.

20:1 force measurement range, within the force measuring range, the accuracy can be 0.5%

The rated range 250, 500, 1000N, suitable for application widely

Sensor is made of stainless steel, corrosion resistance, high reliability

Capacity: 250N 500N 1000N

Specification

Rated Output	1.5 ± 2.0% mV / V
Non-linearity	≤ 0.02~0.05 % F.S.
Hysteresis	≤ 0.02~0.05 % F.S.
Creep(30min)	≤ 0.03 % F.S
Repeatability	≤ 0.02~0.05 % F.S.
Temperature Effect On Output	≤ ± 0.03% F.S. / 10ºC
Temperature Effect On Zero	≤ ± 0.03 % F.S. / 10ºC
Input Impedance	380 ± 2Ω
Output impedance	350 ± 2Ω
Insulation	≥ 5000MΩ/50VDC
Recommended Excitation	12V
Maximum excitation	10~15 V
Operation Temperature Range	- 20 ~ 70 ºC
Safe Overload	1000 % F.S.
Standard signal output throug amplifier	(0-5)v,(0-10)v,(4-20)mA optional
Material	Stainless steel
Cable Color Code	Input: Red(+) Green(-); Output: Yellow(+) White(-);

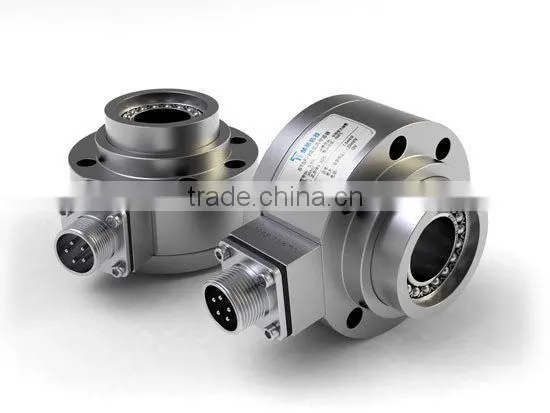

Effect picture
