Polyurethane Rigidity Smart Cup Scraper Pig
- Dalian/Tianjin Port
- T/T
You May Like
-
Polyurethane Smart Cup Rigidity Cup Scraper Pig
-
Pipe Elastic Scraper Smart Cup Pig With Electronic Transmitter
-
Pipeline's Inner Paraffin Removal Equipment Rigidity Smart Cup Scraper Pig
-
Piping Impurity Scraper Smart Cup Pig for Wax Removal
-
Pigging Operation Cleaning Smart Cup Polyurethane Scraper Pig for Gas Pipe
-
Polyurethane Rigidity Rechargeable Lithium Batteries Elastic Scraper Pig
Product Details
| Place of Origin | Liaoning, China | Brand Name | WS, WS | |
| Model Number | QDQ-G | Condition | New |
Product Description

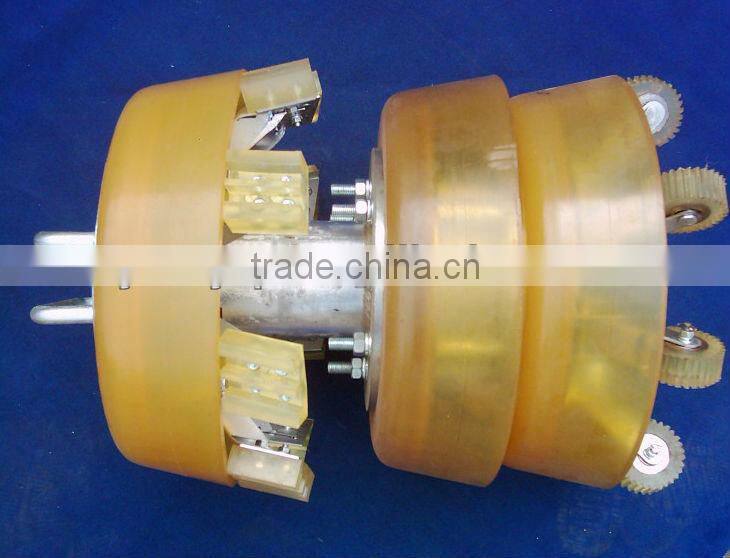

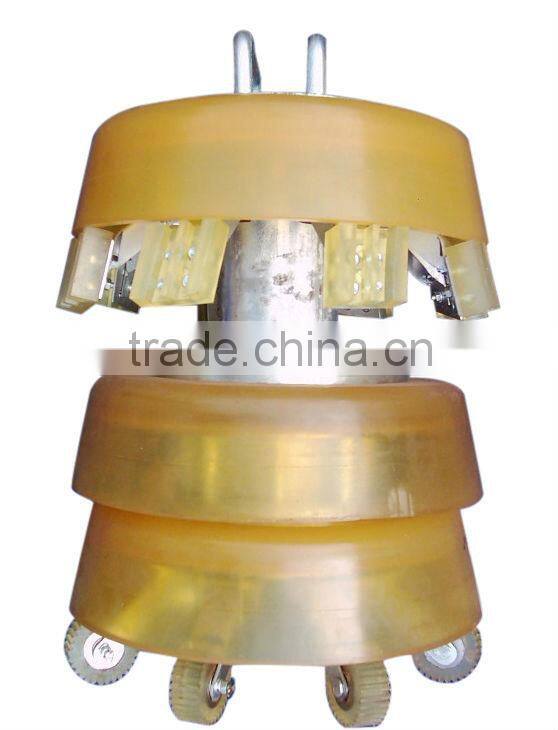

Polyurethane rigidity smart cup scraper pig
Products Description
QDQ - G type elastic scraper pig including electronic transmitter is installed inside.
the sealing rubber cup, wherein the sealing cup and supporting the blade support structure mounted on the same main body.
2)supporting structure composed of a connecting rod, support bar and a spring, spring is installed in the opening with slide the centering cylinder.
3)centralizing cylinder are uniformly fixed on the main body of the cylindrical surface.
4)The utility model has the advantages of body structure is not damaged, effectively eliminate the pipeline plugging accident, obviously improve the quality of cleaning decaling improving the cleaning efficiency.
Design criteria
SY/T 0533-94 (Released of China petroleum and natural gas corporation)
Material
Skin bowl, pouring polyurethane
Frame, stainless steel
The transmitter electronic transmitter
Polyurethane (PU) disc physical index
No. | Factory inspection main indicators | Unit | Guide Cup | Seal Cup | Test method |
1 | Hardness(SHORE A) | degree | 85 | 80 | GB531-92 |
2 | Tensile strength | MPa | 50 | 40 | GB528-82 |
3 | Elongation at break | % | 600 | 700 | GB528-82 |
4 | Tensile set | % | 12 | 12 | GB528-82 |
5 | Tear strength | KN/m | 90 | 75 | GB530-81 |
6 | Impact resilience | % | 35 | 55 | GB1681-91 |
7 | Akron abrasion | Cm3/1.61Km | 0.01 | 0.01 | GB1698-82 |

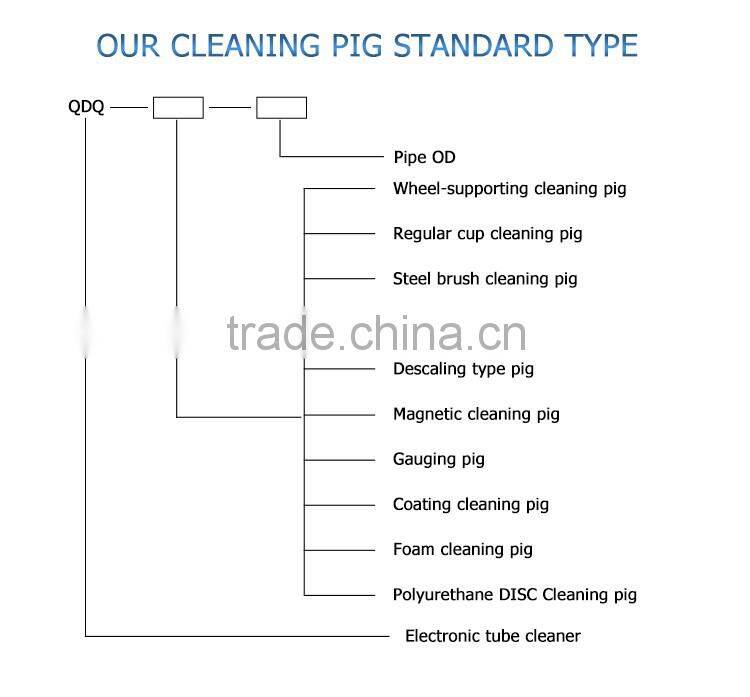

Our cleaning pig standard Type

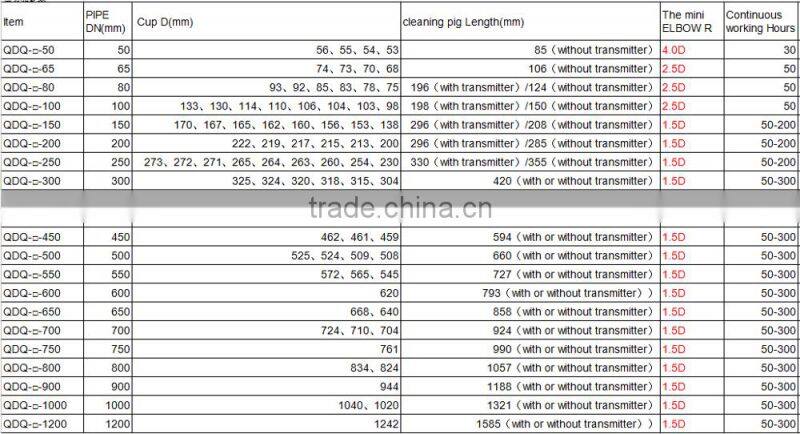

Our electronic cleaning pig specification
Remarks:Other specification pls let us know, we can manufacture as per your data.
Cleaning pig application |
1.To be used for sweeping pipeline and cleaning various impurity After finished the pipe construction and pre-silicon . |
2.To be Used for the exhausting gas before do the pipeline hydrostatic test and dewatering after test. |
3.To check the roundness error before usage and whether the position of live ball valve and pipeline diameter are accurate after opening valve. |
4.To wipe out the weld flash at the palce of joints |
5.To discharge ash, remove paraffin reguarly or irregulary, descaling and do water treatment of the used oil and gas pipeline. |
6.To be used as the inolator of different fluid medium during one pipeline. |
7.To paint the the pipeline wall with anticorrosive coating. |
Our cleaning pig advantages
The advantages of the electronic locating equipment of pipeline pigging are strong wear resistant property and passing ability, well cleaning efficiency, accurate locatingand tracking, etc. the precision can reach to plus or minus 5cm |
we adopt the whole sealing structure for the installation of our cleaning pig battery. As the high speed in the pigging operation and severe collision,it easily cause the pig transmitter out of power and cant work. our whole sealing structure takes Rechargeable lithium batteries and have the clectrucal quantity standard to make sure the battery with enough power for supporting the transmitter to work reguarly. our battery can also avoid the humidity even water into the inner make the battery mouldy or even short circuit. |

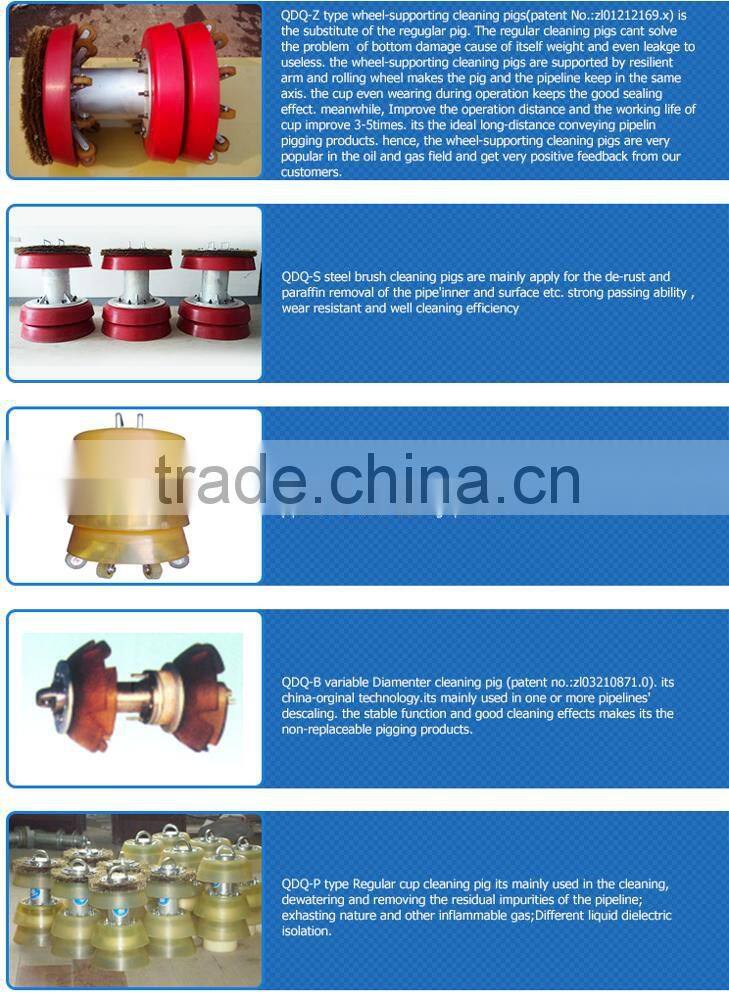

QDQ-Z type wheel-supporting cleaning pigs(patent No.:zl01212169.x) |
QDQ-B Gauging cleaning pig (patent no.:zl03210871.0) |
