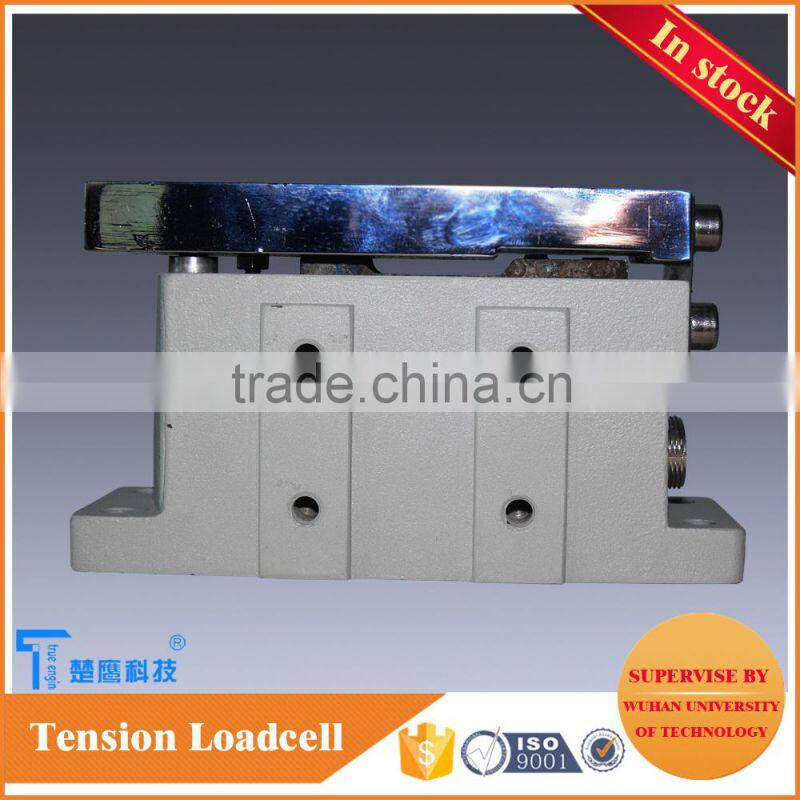

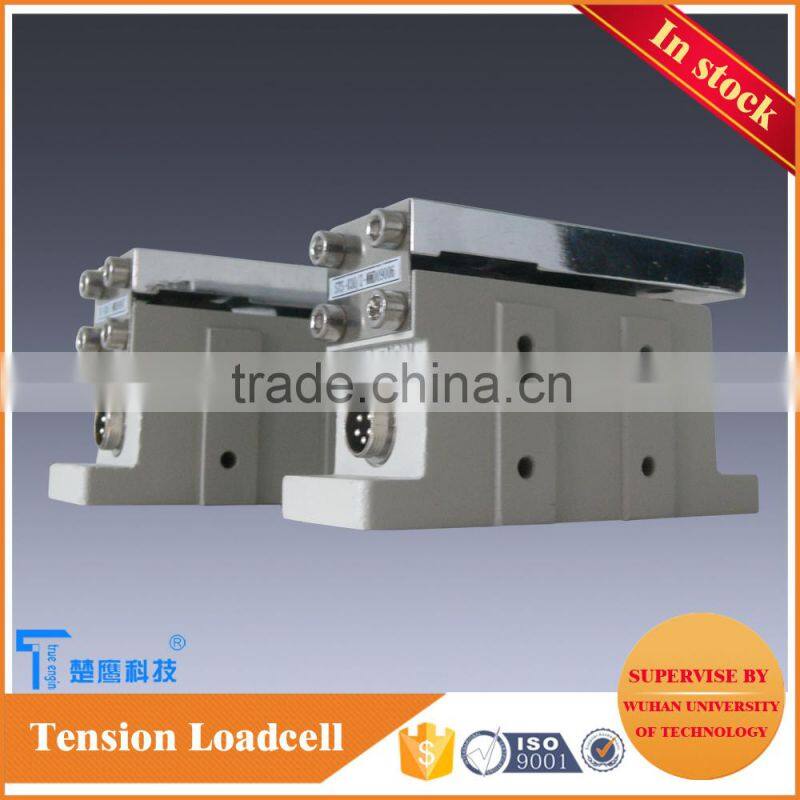

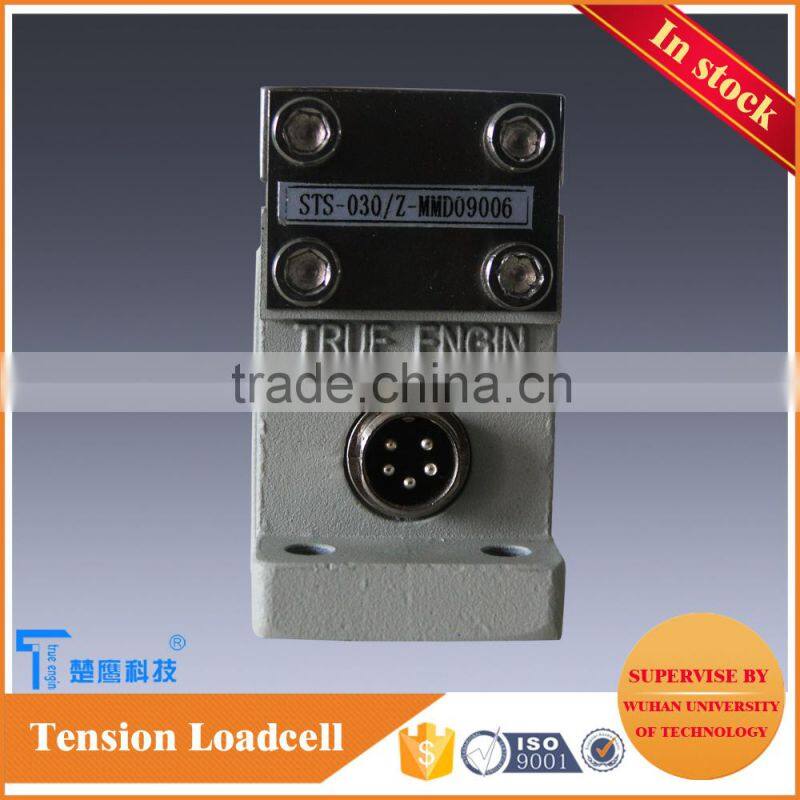

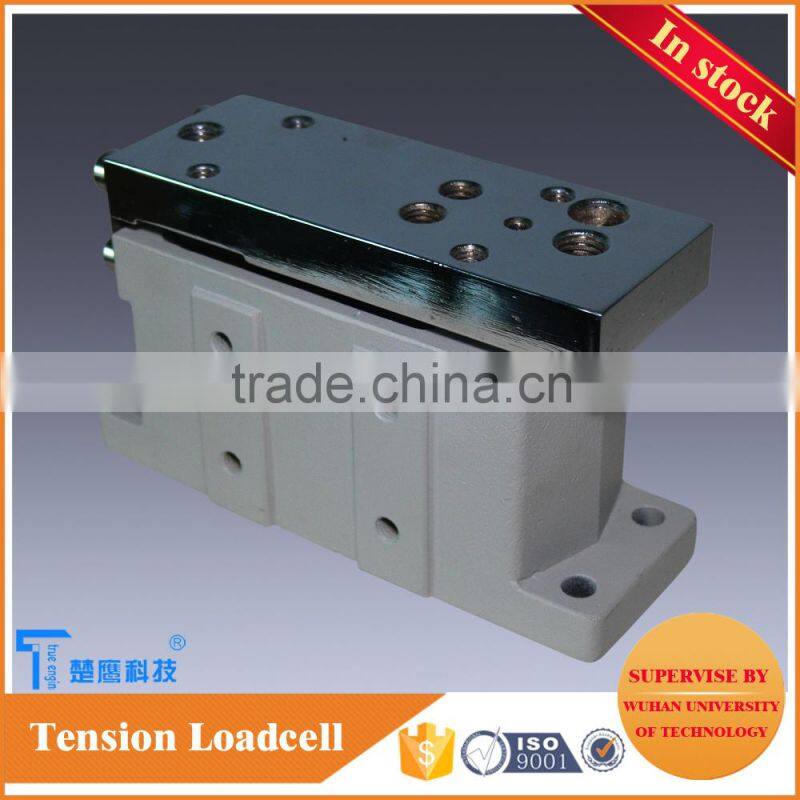

China Supplier Tension Controller Textile Machine Parts Tension Load Cell
China supplier tension controller textile machine parts tension load cell
1.This sensor is same as LX-030TD and LX-050TD in size and installation so that it can replace the tension sensor which made by Mitsubishi(modes above mentioned)
2.STS series adopt differential transformation instructure,good stablility and linear structure .It is small in size and light weight high speed and accuracy .It can be used in measure weight and force .It is the good detection choice of packaging and printing industry.
STS tension sensor technique parameters
| specifications | STS-010 | STS-020 | STS-030 | STS-050 | STS-100 | STS-200 | STS-300 |
| rated load | 10 KgF | 20 KgF | 30 KgF | 50 KgF | 100 KgF | 200 KgF | 300 KgF |
| load direction | press or traction | ||||||

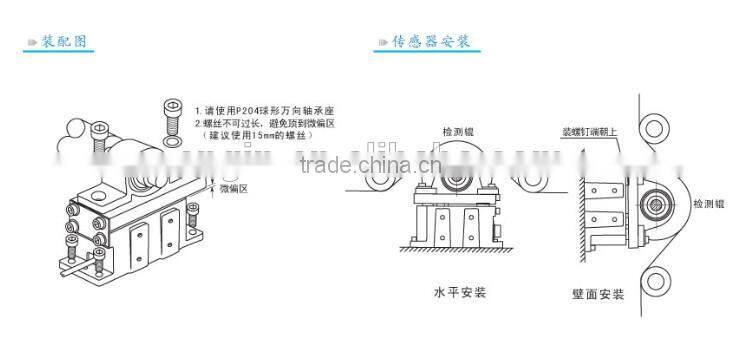

| installation | pedestal tape ,suspended type,side type | ||||||
| connect cable | 4 cores shielding cable(3-6m) | ||||||
working supply | 5V/20mA | ||||||
working environment | 0-40 | ||||||

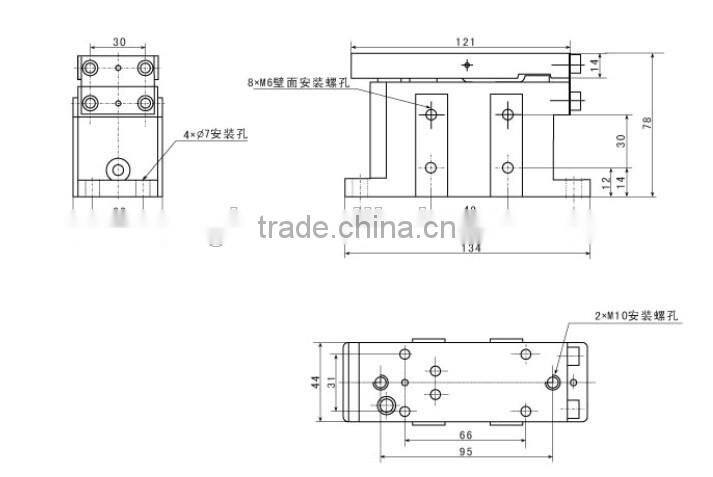

| size | 134mm*48mm*78mm | 150mm*68mm*78mm | |||||
| weight | 1.8Kg | 2.5Kg | |||||
EFFECT PICTURE
China supplier tension controller textile machine parts tension load cell Textile Machine Parts rated load 30KG 50KG 100KG 200KG
Textile Machine Parts direction of load press or traction
Textile Machine Parts instalation pedestal type,suspended type
China supplier tension controller textile machine parts tension load cell Textile Machine Parts connect cable 4 cores and shielding cable(3-6m)
Textile Machine Parts working supply 5V/20mA
Textile Machine Parts working temperature 0-40℃
APPLICATIONS
China supplier tension controller textile machine parts tension load cell Textile Machine Parts size 134mm*48mm*78mm
Textile Machine Parts weight 2.5Kg

Wuhan True Engin Technology Development Co., Ltd is located in the coast of South Lake and surrounded by numerous universities.Company focuses on the researching and developing of industrial tension control system .Our company is committed to the tension control system early in China. After experienced a decade of prosperity , it has forged a excellent team in developing and researching .Our insititute possesses more than 20 professional engineers and CNC professors .They make technological innovation perseverely and guarantee highquality .Our company regards eminent service as the priori thing of development. We are committed to upgrading the tension control system in printing and packaging industry.Our target is roundly upgrading of machine control system home and abroad.
In the direction of Networked Measurement and Control System,we have a large number of advanced and analytical equipment,software and good testing machine.We have the equipments such as U.S. HP, TEKTRONIX, NI, FLUKE and so on.We intimately cooperate with the Measurement control Institute ,the Friction Institute,the Materials Institute of Wuhan Technology University.In June 2009 our company successfully became the superior supplier of the Japan Komatsu Machine tools Company.
1. When can I get the quotation?
Within 24 hours after inquiry. If you are urgent to get the price, please call us so that we can regard your inquiry priority.
2. How should I place the order?
Please let us know the model number based on specs for powder cluth, powder brake, air bluth, air brake, electromagenetic cluth, electromagnetic brake and safety chuks. For air shaft and roller, please show us your drawing or let us know your requests, and then we will provide you drawing for confirmation.
3. What's your MOQ?
We don't have moq request, except the rollers.
4. What about the lead time for production?
That depends on quantity and type of products.
Usually 3-5 days for powder cluth / brake, tension controller.
15-25 days for safety chuks, air shaft and roller.
5. What's the term of delivery?
Incoterms as EXW, FOB, CIF etc, you can choose the most convenient way.
6. Is it safe to do business with you?
We have joined Ali Trade Assurance, which is guaranteed, you are safe doing business with us.
If any questions, you are highly welcomed to contact with us any time!
Online skype kay8611 can reach us.
