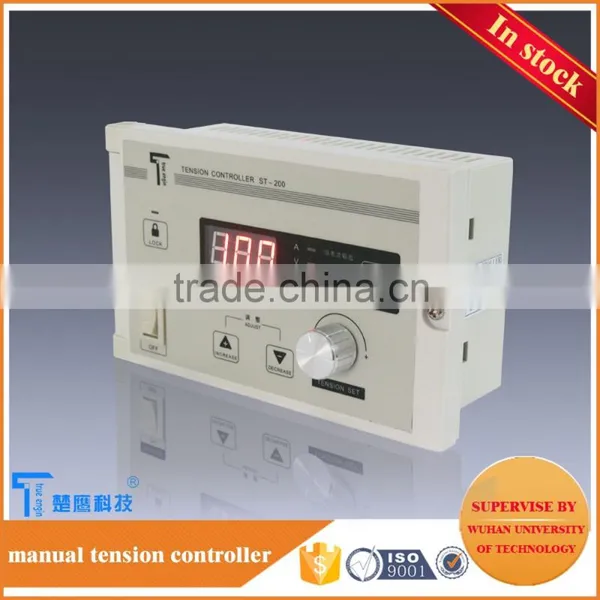

Offset printing machine three ways output manual tension control
Company Profile
Wuhan True Engin Technology Development Co., Ltd is located in the coast of South Lake and surrounded by numerous colleges and universities.The Company focuses on the developing and production of industrial test and control system .True Engin is the first company which is committed to the tension control system developing in China. After more than two years of prosperity , it has forged an excellent team in developing and application .Our Instructors lead tens of engineering masters and CNC technology professionals that treating technology innovation,high-quality protection to the products and seamless customer service as the thrust of the development of enterprises.We committed to upgrading the technology of Chinese Printing and Packaging Machinery Control System,Complex Control System and Cutting Machine Control System.Our target is comprehensive upgrading of the competitiveness of domestic industry of Machine Controlling
Functional characteristics :
• Adopt technique of PFM and PWM overcurrent protection
• Three selectable models (constant voltage/ constant current/ constant power) , External potentiometer and external PLC controller
• input power: AC180~260V,50/60HZ
• output: DC 0~24V/0~4A(magnetic powder clutch/ detent)
• Multiple installation modes: console mode , wall-mounted mode and inlay mode
• Thick and thin shell can be choosed
• operating environment: -10℃-65℃relative humidity under 85RH
Secification :
| Mode | Output voltage | Maximum power output | Maximum current output |
| ST-200 | DC 0-24V | ≤100W | 4A |
Port connection Introductions :
| Port | Introductions | Port | Introductions | Port | Introductions |
| 5V | Assist voltage output | AO | Voltage feedback | ground wire | |
| SET | control site | Vout+ | magnetic powder clutch/ brake | L | AC180~260V 50/60HZ |
| GND | circuit | Vout- | N |
| Attention: AO is feedback output voltage ,it changes among 0-5V simultaneously with current. |
Control mode :
1. Panel control
2. External PLC controll
3. External potentiometer control
Installation size :
1. ST-200 thin shell
ST-200 thin shell only adopts Embedded installation
2. ST-200 thickness shell
ST-200 thickness shell can adopt three installations (console mode , wall-mounted mode and inlay mode)
Effect picture :
