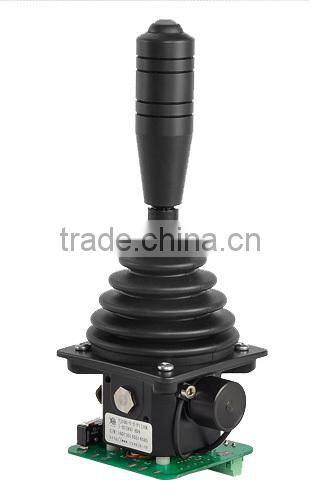

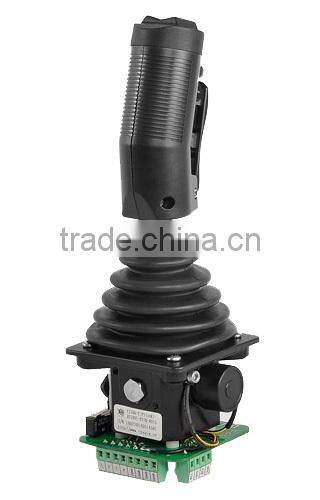

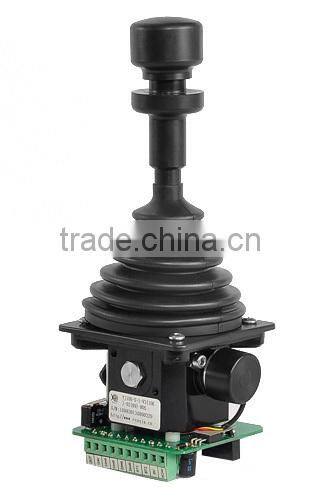

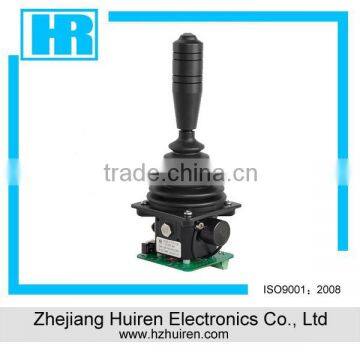

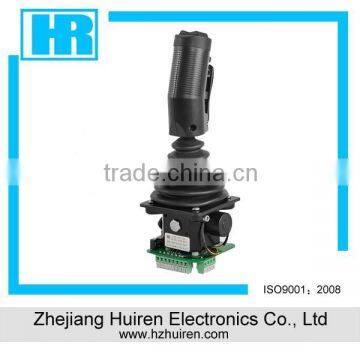

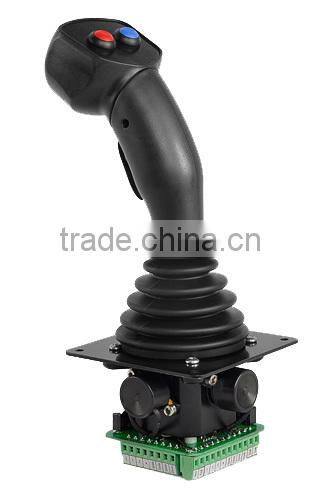

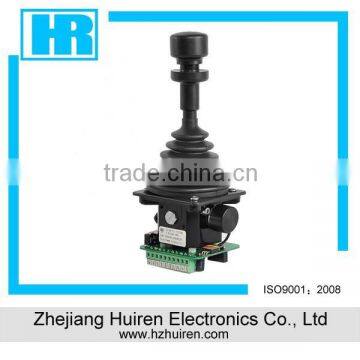

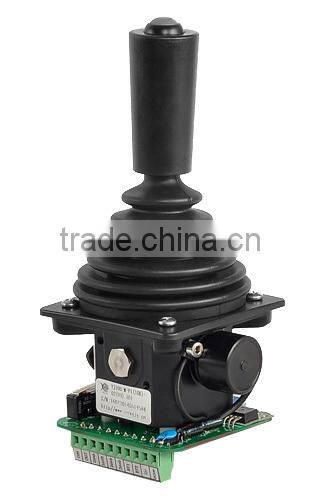

YJ100 Series Remote Control, Crane Joystick With Push Button
US$ 60 - 250
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HR
Model Number:
YJ100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YJ200 Series Waterproof Hydraulic Proportional Control JoystickUS$ 60 - 250MOQ: 1 Piece -
YJ100 Series Single Axis/double Axis Industrial Joystick ControllerUS$ 60 - 250MOQ: 1 Piece
-
YJ300 1 Axis and 2 Axis Crane Industrial Control RodUS$ 80 - 210MOQ: 1 Piece
-
YJ500 Forklift Operating LeverUS$ 5 - 19MOQ: 1 Piece
-
YJ600 Buttons Joystick Crane Controller Replacement Parts Industrial JoystickUS$ 50 - 100MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
HR
Model Number
YJ100
Product Description

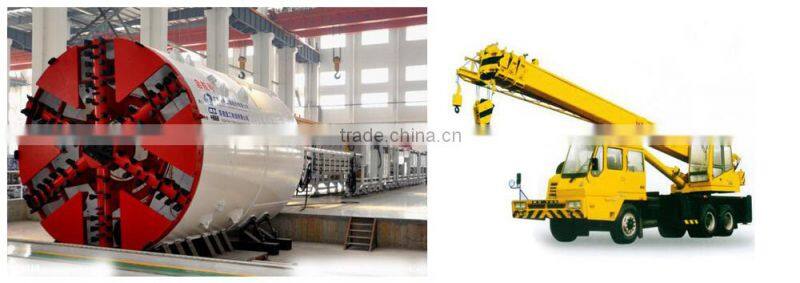

Product Application

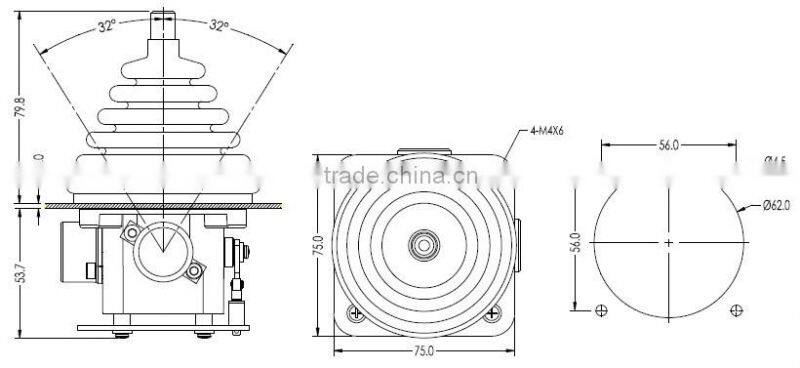

| Product Installation |
| Wiring instructions |
| Technical Specifications |
| Environment Specifications | ||
| Storage temperature | normal temperature | |
| Operating temperature | —25℃~+80℃ | |
| Installation of flange protection grade | IP65 | |
| Vibration | amplitude of vibration ±3g, frequency 10HZ-200HZ | |
| Shock | 20g, 6ms, half sine type | |
| EMC anti-interference grade | 100V/m, 30MHZ-1GHZ, 80%Sine-wave modulation, satisfy EN 50082-2 (1995) standards | |
| Transmit grade | 150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards | |
| ESD anti-interference grade | Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards | |
| Mechanical Specifications | ||
| Mechanical rotation | ±32° (potentiometer) ±20° (hall sensor) | |
| Operating torque | 5N(50Nmax) | |
| Mechanical life | 5,000,000 cycle | |
| Mechanical tolerance | ±0.5° | |
| Electrical Parameters | ||
| Hall type | Power supply voltage | 5±0.5VDC |
| The power consumption of current | 6.5 mA/each hall chip | |
| Resolution | Infiniti | |
| Maximum voltage | 15 VDC continuous | |
| Reverse polarity maximum voltage | 14.5VDC | |
| Load resistance | 5KΩ | |
| The median voltage (no-load) | 48~52%Vs | |
| Potentiometer | Power supply voltage | DC24V |
| Power supply current | <20mA | |
| Resolution | Infiniti | |
| Resistance (10%) | 2KΩ, 5KΩ, 10KΩ | |
| Electrical rotation | ±32° | |
| Output voltage range (Relative voltage) | 0~100%;10~90% | |
| Maximum voltage | 48%~52% | |
| Potentiometer maximum load of voltage | 32VDC | |
| Maximum power consumption (25 ℃) | 0.25W | |
| The direction of the switch | Switch position ±3° | |
Packaging & Shipping
To be packed in standard packing. 1 pcs / box; 12 box/carton
The goods can be shipped by sea, by air, or by express.
Our Services
We would provide our high quality products and sincere service to meet customer demend.
Company Information
Zhejiang HuiRen Electronic Limited Company is located in the center of Huzhou where is called a bright pearl of Nantaihu of north of the Zhejiang province.
Our company is specialized in sophisticated electric conducted plastic products such as precision angular diaplacement sensor, precision linear displacement sensor and precision conductive plastic potentiometers, industrial joysticks.
The products are widelyly used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and medical instruments and so on.
Our company focuses on quality management. Its aim is to satisfy the customers and serve all customers sincerely.
