High capacity JZC widely used diesel concrete mixer for sale

Specifications

1.Discharge capacity: 350L
2.Charging Capacity: 560L
3.Diesel engine
4.CE,BV,Famous trademark of China



JZC350 series diesel engine moving concrete mixer



Product characteristic:

This machine is specially designed for some remote areas without electricity to achieve mechanized construction. The principle is the existing JZC350 concrete mixer is installed a diesel power generation system, and this system can supply electricity power to make sure the normal running of mixer. The generating system's out power is 15KW, so it can also supply extra part of electricity power to other small devices, as concrete vibrators and lighting equipments, while it's keeping the mixer's operation.

In addition, the machine can also match the external power directly, achieves diesel-electric dual-use.



Applications & Features

This machine is used for mixing plastic and low-fluidity concrete, each time stirring 0.35m³ concrete (refer to the volume after tamping), production rate is 12~14m³/h, applying to most small and medium construction projects, roads, bridges, water conservancy and the concrete plants.

This machine is a bipyramid reversal discharging self-loading concrete mixer, the mixing drum's forward rotation is mixing, reverse rotation is discharging. The machine has the benefits of simple structure, reliable, good mixing quality, high efficiency, light weight, and easy manipulation of maintenance, so it is more advanced models of concrete mixers. Because outfitting with a diesel-powered engine, it is more applicable to the remote areas and the wild which have no electric power supply.



Technical parameter of JZC350 self reverse drum concrete mixer:

Technical data		JZC350concrete mixer
Performance	Discharging capacity L	350
	Charging capacity L	560
	Productivity m3/h	41926
	Speed of the mixing	14
	Drum r/min
	Max.aggregate size. mm	60-80
	Mixing motor kw	5.5
	Water-pump motor kw	0.55
Diesel engine	Nominal power kw	14.7
	Nominal speed r/min	2200
Max.chug speed km/h		20
tyre		6.50-16
Total weight Kg		1970
Outline(l*w*h)mm		2810*2140*3070

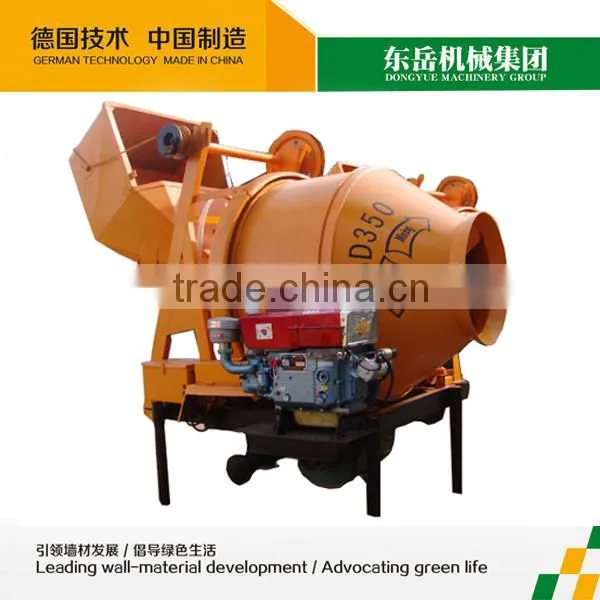

Pictures:

Dongyue Enterprise Profile:



Dongyue Machinery Group Co., Ltd. is located in the jumping*off point of Linyi City.

We have brought in advanced technologies from abroad and developed series of brick machines with
practicable patents by ourselves, following up the up*to*date trends abroad.

Since our establishment, we have regarded quality as the most important and eternal
principle in production. Our products have passed ISO9001:2000 certification and the
inspection by National Construction Machinery Products Quality Inspection Center.

The new series of automatic brick forming machine features high efficiency, advanced
Technology , stable capability and wide applicability. Last year we are the top selling among
thousands of China manufactures. and we are the only company which has been admitted
as China well*know brandmark by China Government.

Apart from the above, we already have office in India, Vietnam,Indonesia.
Our brick making machine enjoys many advantages including: more reasonable structure,
more compact appearance, smoother operating, higher efficiency and easiness to operate
and maintain. We would like to exchange the optimum profit for you with the lowest cost
and the best after-sale service.

Why Choose us?

We know you have many choices in brick machine. Here are some reasons to choose us.



Rich experience:

Factory with 20 years experience



Reliability:

We are reputable and large manufacturers of brick machine with numerous certifications guarantee the quality of our machine. No smuggled goods.



Competitive price:

We always produce good quality products with competitive price.



Perfect after service:

Up to now,we already have office in India, Vietnam,Indonesia.If any problem can not be solved,we will fly to your place for help.

Welcome you inquiry!
