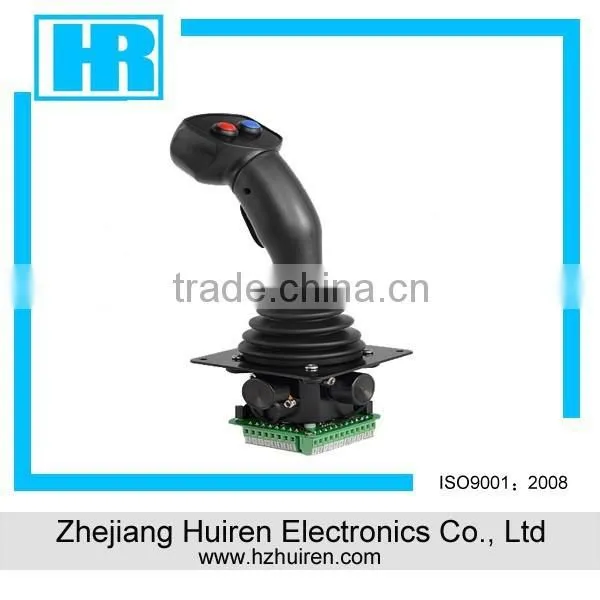

Help CenterYJ100 Industrial Joystick Master Controller / Potentiometer Joystick
Related Products
-
YJ100 Series Industrial Joystick, High Strength Control LeverUS$ 60 - 250MOQ: 1 Piece -
Operating Handle YJ300 Series, Joy Stick for Industrial ControlUS$ 80 - 210MOQ: 1 Piece
-
High Strength Control Rod YJ101 Series With Hall Sensor InsideUS$ 5 - 15MOQ: 1 Piece
-
Industrial Operating Lever YJ500 Series With High QualityUS$ 5 - 19MOQ: 1 Piece
-
YJ02 Series Joystick for Engineering MachineUS$ 80 - 500MOQ: 1 Piece
Product features
| 1. Potentiometer type sensor or hall sensors |
| 2. Uniaxial or biaxial control |
| 3. High strength control lever and the proportion of excellent control or switch output |
| 4. Panel above protection grade IP56 |
| 5. Easy installation, flexible operation, uniform hand feeling, long service life, maintenance free. |
Potentiometer specifications
Environment Specifications | ||
Storage temperature |
normal temperature |
|
Operating temperature |
—25℃~+80℃ |
|
Installation of flange protection grade |
IP65 |
|
Vibration |
amplitude of vibration ±3g, frequency 10HZ-200HZ |
|
Shock |
20g, 6ms, half sine type |
|
EMC anti-interference grade |
100V/m, 30MHZ-1GHZ, 80%Sine-wave modulation, satisfy EN 50082-2 (1995) standards |
|
Transmit grade |
150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards |
|
ESD anti-interference grade |
Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards |
|
Mechanical Specifications | ||
Mechanical rotation |
±32° (potentiometer) ±20° (hall sensor) |
|
Operating torque |
5N(50Nmax) |
|
Mechanical life |
5,000,000 cycle |
|
Mechanical tolerance |
±0.5° |
|
Electrical Parameters | ||
Hall type |
Power supply voltage |
5±0.5VDC |
The power consumption of current |
6.5 mA/each hall chip |
|
Resolution |
Infiniti |
|
Maximum voltage |
15 VDC continuous |
|
Reverse polarity maximum voltage |
14.5VDC |
|
Load resistance |
5KΩ |
|
The median voltage (no-load) |
48~52%Vs |
|
Potentiometer |
Power supply voltage |
DC24V |
Power supply current |
<20mA |
|
Resolution |
Infiniti |
|
Resistance (10%) |
2KΩ, 5KΩ, 10KΩ |
|
Electrical rotation |
±32° |
|
Output voltage range (Relative voltage) |
0~100%;10~90% |
|
Maximum voltage |
48%~52% |
|
Potentiometer maximum load of voltage |
32VDC |
|
Maximum power consumption (25 ℃) |
0.25W |
|
The direction of the switch |
Switch position ±3° |
|
Application

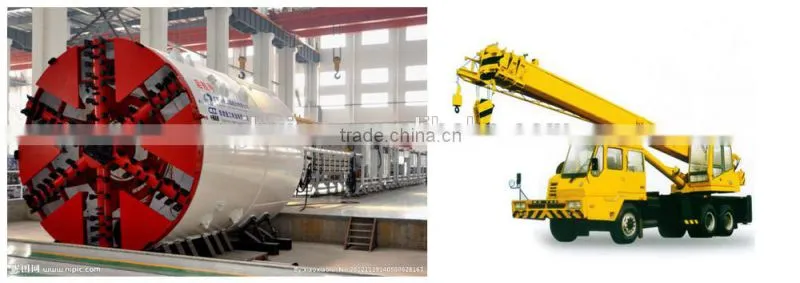

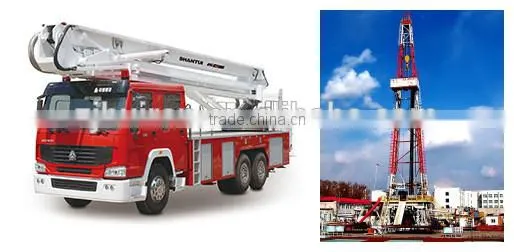

This industrial joystick, mainly used in the rotary drilling rig, aerial fire truck, crane, shield machine, oil hoist hydraulic such as proportional control and frequency conversion motor control.

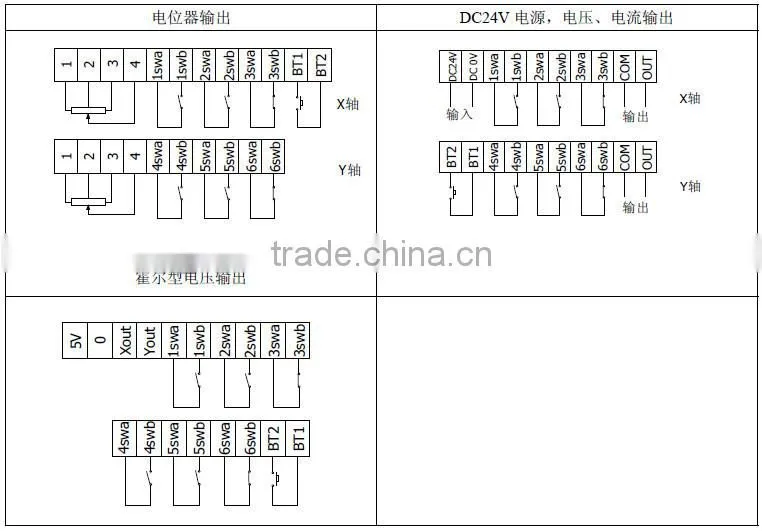

Wiring instruction

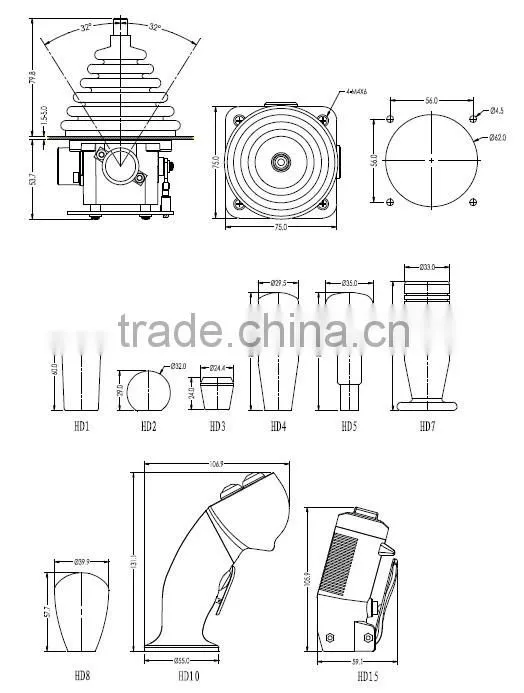

Size
Zhejiang HuiRen Electronic Limited Company is located in the center of the city Huzhou (Zhejiang, China) which is known as the pearl of South Taihu Lake. HuZhou has a facilitated transportation, with a number of National Roads, highways, railways, and waterways running across the city, it is conveniently connected to Shanghai, Hangzhou, Wuxi and Suzhou.
Our company is specialized in sophisticated electric eonducted plastic products such as precision angular-displacement sensors, precision linear displacement sensors and precision conductive plastic potentiometers. The products are widely used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and mediacal instruments and so on.
Our company focuses on management in all aspects, adhering to the principle of satisfying customers and faithfully serving all customers.
We will provide you with our best products and services. Welcome!
