Home > Manufacturing & Processing Machinery > Mixing Equipment > Concrete Mixer > Mixing System for Hollow Blocks JZC350 Diesel Mobile Concrete Mixer Dongyue

Mixing System for Hollow Blocks JZC350 Diesel Mobile Concrete Mixer Dongyue

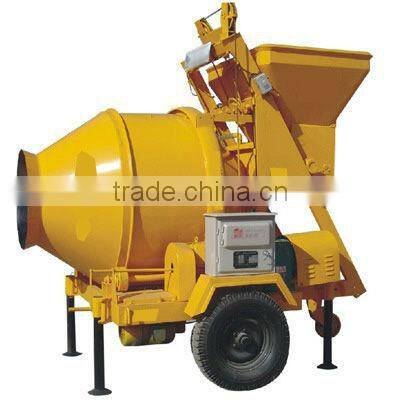

Mixing System for Hollow Blocks JZC350 Diesel Mobile Concrete Mixer Dongyue photo-1
US$ 3,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DONGYUE
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name DONGYUE
Model Number JZC350
Motor Power 11kw
Mixing Power 5.5kw
Charging Capacity 350l
Reclaiming capacity 560L
Speed of Mixing Drum 14r/min
Water Supply Mode water pump
Working Cycle Period 25-40s
Discharge Way pnuematic / manua
Outline Dimension 3200*2140*3000mm
After-sales Service Provided Engineers available to service machinery overseas

JZC350 Diesel mobile concrete mixer on Sale



1.Mobile concrte mixer feature

  1).Advanced performance; Beautiful appearance;

  2).High productivity; Good-quality mixing;

  3).Labor saving; Convenient to move;

  4).Easy to operate and maintain.

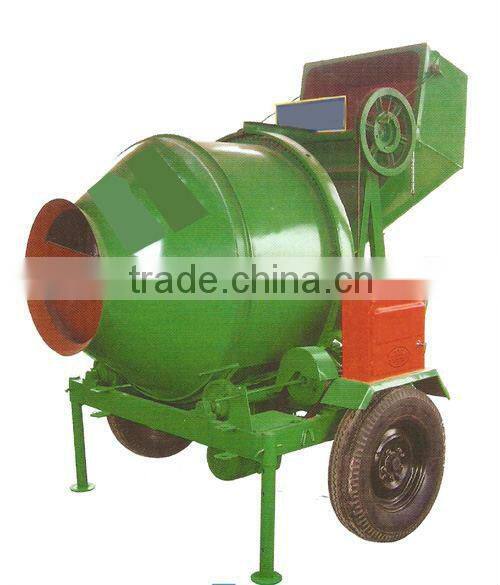

 mixing system for hollow blocks JZC350 diesel mobile concrete mixer dongyue



2.JZC Series mobile concrete  brick machine concrete mixer simple introduce

   JZC series concrete mixer is a self-falling concrete mixing machine, discharging with the double wimble rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely.



   The user can dig a hole for fixed mix; it can make the hopper orifice level with the ground. By this way, feeding will be more convenient.

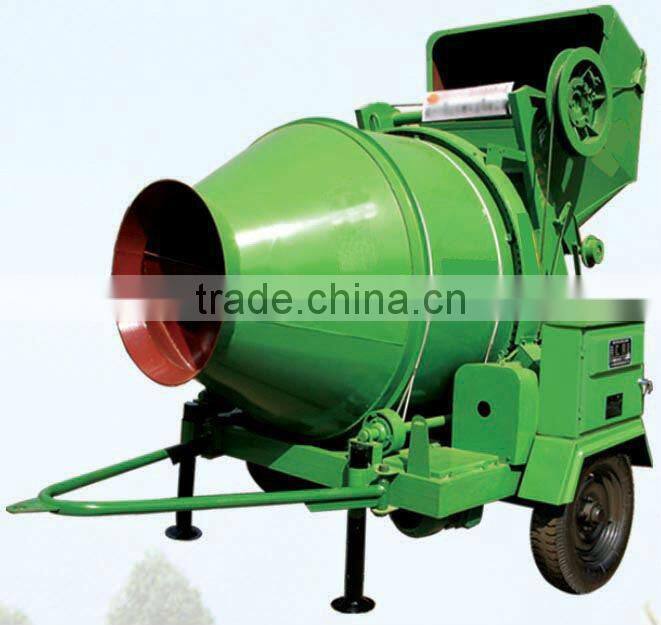

mixing system for hollow blocks JZC350 diesel mobile concrete mixer dongyuemixing system for hollow blocks JZC350 diesel mobile concrete mixer dongyue

3.JZC Series mobile concrete brick machine concrete mixer main techinical parameters



Model

JZC250 Concrete mixer

JZC300 Concrete mixer

JZC350 Concrete mixer

JZC500 concrete mixer

Feeding capacity

250L

300L

350L

800L

Discharging volumn

320L

480L

560L

500L

Productivity

6-8m3/h

9-12m3/h

10-14m3/h

18-20m3/h

Roating speed of

stirring shaft

17r/min

14r/min

14r/min

15.7r/min

Max.diameter of

aggregates

60mm

60mm

60mm

60mm

Accuracy of water

supply

error≤2%

error≤2%

error≤2%

error≤2%

Mixer motor

4KW

4KW

5.5KW

11KW

Lift motor

4KW

4KW

5.5KW

5.5KW

Pump motor

0.55KW

0.55KW

0.55KW

0.75KW

Tyre standard

6.50-16

6.50-16

6.50-16

6.50-16

Max.transport speed

15km/h

15km/h

15km/h

15km/h

Overall size

2260×1990×2750mm

2260×1990×2750mm

3200×2140×3000mm

5045×2166×3426mm

Total mass

1300kg

1650kg

1950kg

3200kg

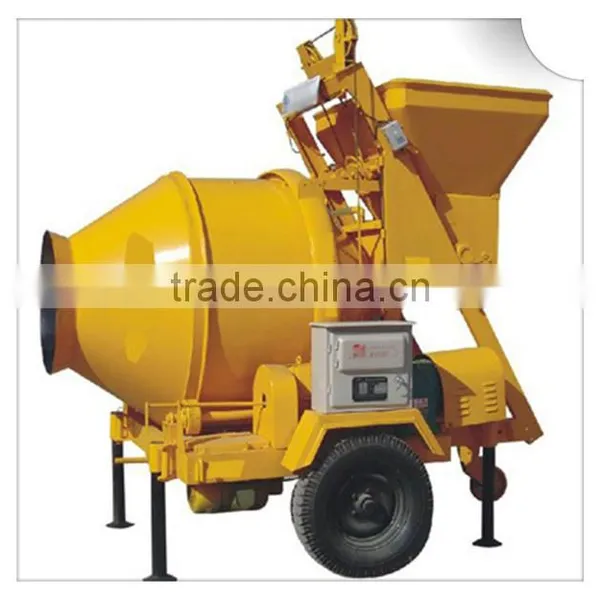

 mixing system for hollow blocks JZC350 diesel mobile concrete mixer dongyue

mixing system for hollow blocks JZC350 diesel mobile concrete mixer dongyue
