Zhejiang HuiRen Electronic Limited Company is located in the center of the city Huzhou (Zhejiang, China) which is known as the pearl of South Taihu Lake. HuZhou has a facilitated transportation, with a number of National Roads, highways, railways, and waterways running across the city, it is conveniently connected to Shanghai, Hangzhou, Wuxi and Suzhou.
Our company is specialized in sophisticated electric eonducted plastic products such as precision angular-displacement sensors, precision linear displacement sensors and precision conductive plastic potentiometers. The products are widely used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and mediacal instruments and so on.
Our company focuses on management in all aspects, adhering to the principle of satisfying customers and faithfully serving all customers.
We will provide you with our best products and services. Welcome!

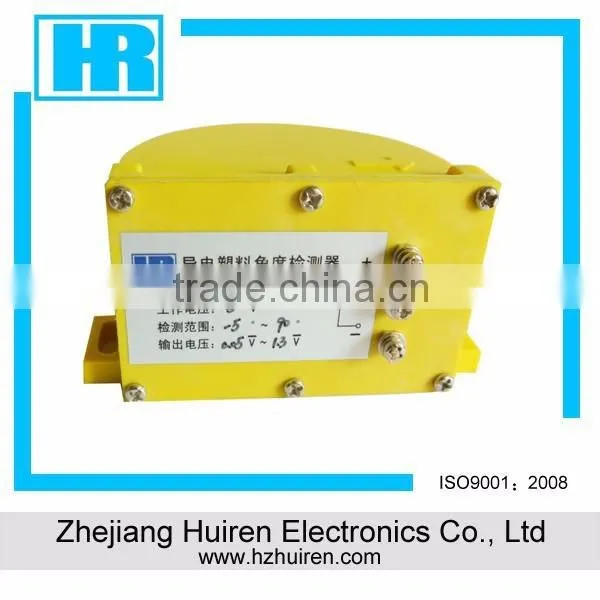

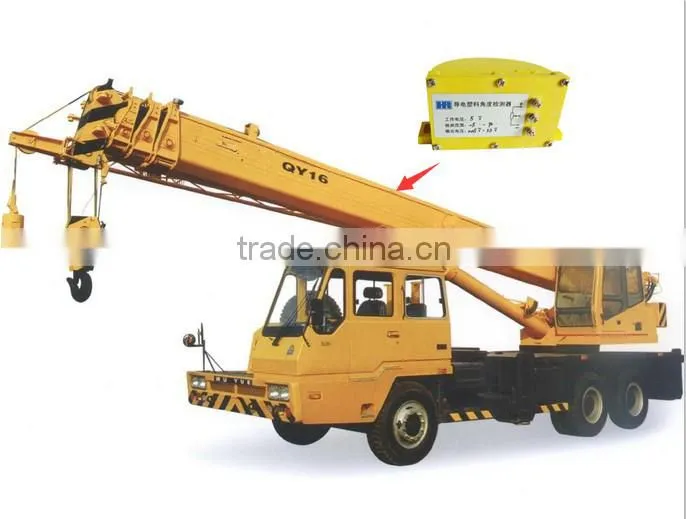

The angle detector consists of displacement sensor and pendulum bob, which can be loaded on the cranee, mine tunnel, excavating eq
uipment and camera and the boom of hoist. The angle to groud is measured with by displacement sensor pendulum bob ariven to output voltage value.
Mechanical parameter: WDS-XJD-01
Product model |
WDS-XJD-01L(left) WDS-XJD-01R(Right) |
Element |
WDD angular displacement sensor(conductive plastic) |
Measuring range |
-5 °~ 90° |
Rated output |
0.05 ~ 1.33V / 3 ~ 6.9 V |
Linearity |
0.1%; 0.5%;1% |
Excitation |
5 DCV ~ 15 DCV |
Usage temperature range |
-20℃~+60℃ |
Ambient humidity |
10%~95% |
Vibration proof |
4G 33HZ |
Shock proof |
20G 15ms~20ms |
Water resisting |
Water proof |
Weight |
About 500 g |
