Home > Electrical & Electronics > Sensor > Pressure Sensor > Angle Sensor/remote Angle Sensor WDS-JD-01
Angle Sensor/remote Angle Sensor WDS-JD-01
US$ 20 - 90
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HR
Model Number:
WDS-JD-01
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
HR
Model Number
WDS-JD-01
Usage
Position Sensor
Theory
Resistance Sensor
Output
Digital Sensor
Specifications
* More than 7 years experience* First Class R&D Dept and Intellectual property rights
* remote angle sensor
Our products are made of hard-antirust aluminum body, molded conductive plastic substrate and imported precious metal electric brush and Collecting components, stainless steel shaft matched with the high-speed bearings to ensure that the product has the excellent performances of high linearity, long mechanical life, high resolution, small dynamic noise.

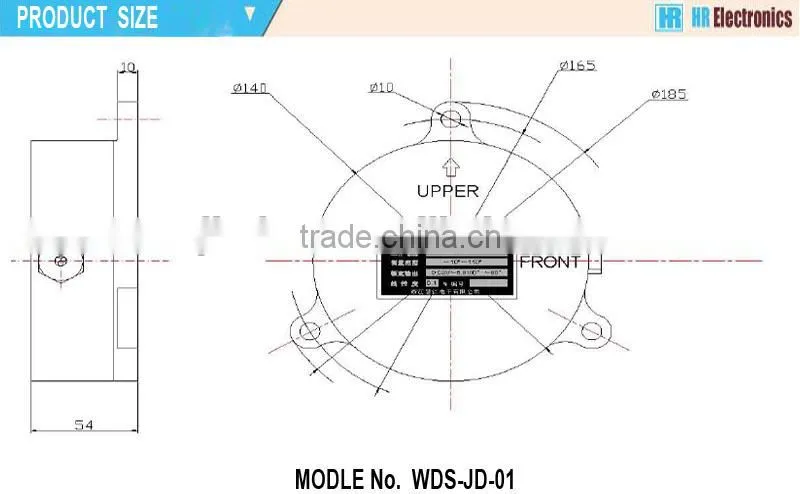

Mechanical parameter: WDS-JD-01
| Measuringt range | -10°C~+110°C |
| rated output | DC 3V~6.9V/0~90° |
| Linearty | 0.1%;0.5%;1% |
| Excitation | DV 15V |
| Usage temprature range | -20°C~+60°C |
| Ambient thumidity | 10%~95% |
| Vibration proof | 4G 33HZ |
| Shock proof | 20G 15ms~20ms |
| Water resisting | Water proof |
| Weight | 1.8kg |
...
