Specifications
Color measurement instrumentThe instrument is mainly applied to plastiCpaintingdesignplatingcostumePrinting and dyeing industr

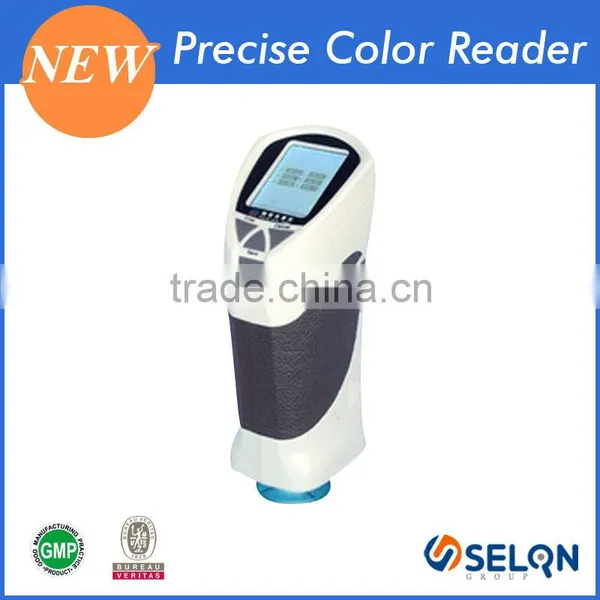

SELON PRECISE COLOR READER
Color measurement instrument , Color Analyzer , Color Determination
profile
In 1931,the CIE(Commission Internationale De L'E'clalrage)setup a series of visible spectrum color space standards.The Basic CIE color space standardS iS CIE_XYZ.lt iS built on standard visual observerson the basis of ability to see,and it reflects the standardS scope of color by eye.Based On CIE_XYZ there are CIE_XvY,CIE_Lab,CIE Lch standard color space,etc.
At present,the CIE Lab color space iS the most commonly used in the industry.In ClE Lab color space,L value stands for color brightness and a value stands for the Green-0n-red value.and b value stands for the blueonyellow color value.If determine a value of color by only a group Lab,it will be not practical.However,we can determine the differences among them by comparing two groups of Lab values.
Computer connected Analysis
The instrument is mainly applied to plastiCpaintingdesignplatingcostumePrinting and dyeing industries.It can do the Color ananlysisand Color controlling
Product features
1.The 2.4"Width Colorful screen and portable design make you feel
Comfortable.
2.3 kindS of light sources for your selection,SCI and SCE mode switch and metamerism analysis meet your test needs in different working status.
3.Tolerance setting,humanizational autojudge color difference values and color deviation make you judge the color easily even you don't have any professional knowledge in color.
4.Professional color analysis software makes you do the color data analysis and color difference diagrammatic outputting.
5.The optical mini printer fulfil the output of data.
Color test and quality managed software
Software feactu res
The interface is concise and forcoloranalysiS and Color difference data output.Including
1.Standard values data bank.
2.Single and repetitious test mode.
3.Color simulation
4.CoIor space diagrammatiC Sheet.
5.Color difference curve and color test report.
Technical standards:
Repeat accuracy |
0.08(Test the standard white tabula for30 times to get the average value.) |
lighting/inspecting system |
8/d(8oFalloff/diffuse reflection)/SCI(include Flat Mirror Light)SCE(eliminate Flat Mirror Light) |
Light sou rce |
White light source |
Inspection angle |
10oAngle of view in CIE |
Inpection conditions |
D65D50F11 |
Rectification |
white board rectification,black board rectification |
Storage |
12 groups of standard samples,and it can keep 30 groups of sample values under every standard sample |
Display |
L*a*b*L*c*h* Chroma values and E*ab (L*a*b*)(L*C*H*)color difference values |
Language |
Chinese and English |
Test Caliber |
8mm |
Power |
4 pcs alkaline batteries or nickebatte ries special adapter(DC5V) |
Weight |
550g |
Shape size |
77*86*210mm |
