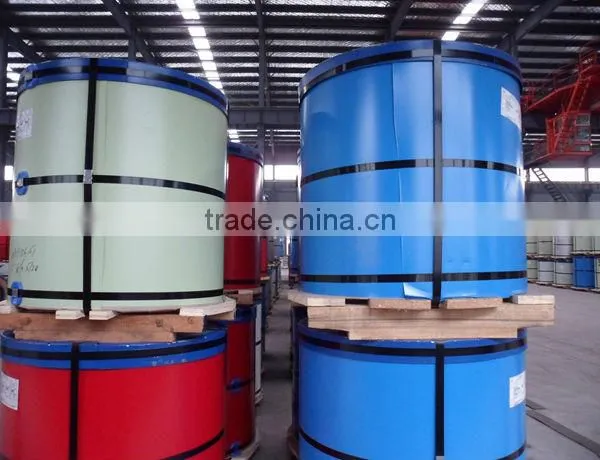

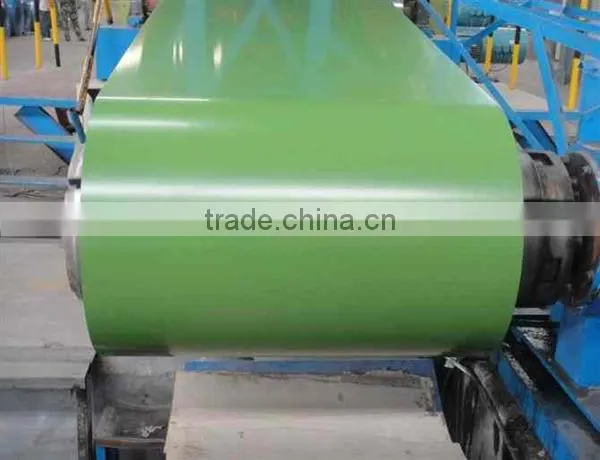

Help CenterColor Coated Steel Coil for Metal Roofing
Related Products
-
Zinc Corrugated Steel Roofing Price SheetUS$ 850 - 950MOQ: 20 Tons -
Color Coated Galvanized Steel RoofingUS$ 700 - 1,000MOQ: 25 Tons
-
Galvanized Color Corrugated Steel SheetUS$ 780 - 820MOQ: 25 Tons
-
Color Corrugated Steel Roofing TileUS$ 780 - 820MOQ: 25 Tons
-
PPGI Color Corrugated Steel Roofing TileUS$ 780 - 820MOQ: 25 Tons
Specifications
Steel Coil metal roofing1.Common polyester paint
2.50-150g/m2 dipped layer
3.2 Coating 2 Baking process
4.Long life span
color steel,color coated steel ,color coated galvanized steel coils Specifications:
1.Thickness:0.13-1.5mm
2.Width:600-1250mm
3.Material:Q195,Q235,Q235B,Q215,DX51D+Z,DX53D+ZSPCC, SGCC
4.Zinc coating:60-120G/M2
5.color steel Surface Structure: galvanized ,zero spangle, regular spangle or normal spangle
6.Surface treatment: chromated and oiled, chromated and non-oiled
Applications:
1) Pre-galvanized steel tubes and pipes.
2) Galvanized steel channels and profiles.
3) Armoring cable.
4) Construction,the manufacturing of cars, ships, containers and household electric appliances,other industries usage
|
color coated galvanized steel coil Packaging Details:
|
Standard export and seaworthy packing. i.e. waterproof paper and metal sheet protection with fluted rings at inner and outer edges, 4 eye bands and 4 circumferential bands fasten the coil(or according to customer's requests),.. |
Delivery Detail: |
30 days after receiving prepayment or original L/C. |

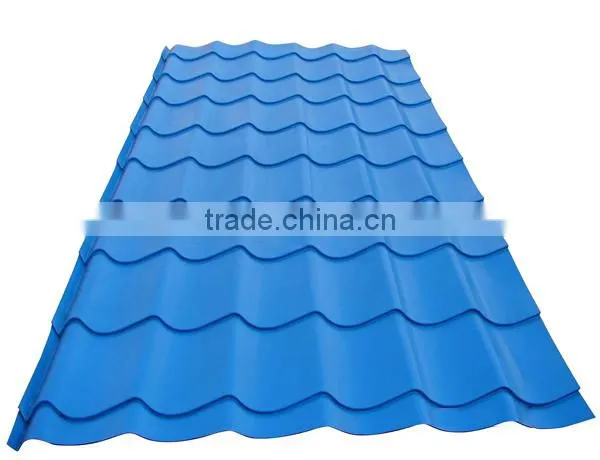

PPGI steel sheet for roofing materials
Mill of Pre Painted color coated steel plate/sheet(thick:0.13-0.9mm)
Grade:SGCC,DX51D,CGCC
Thick:0.13-0.9,Width:600-1250mm
Supply PPGI PPGL Prepainted Steel sheet coil /plate
Factory of color color prepainted galvalnized steel sheet coils /plate

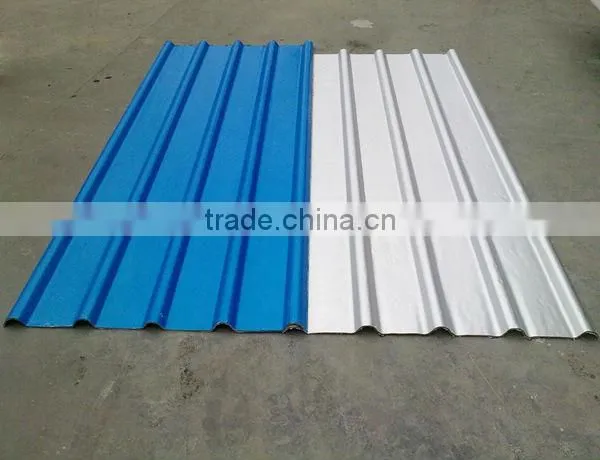

Manufacture of GI GL PPGI PPGL coil corrugated roofing sheet /plate
Mill of Pre Painted color coated steel plate/sheet(thick:0.13-0.9mm)
Brief Introduction:
1. Color steel is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.
2. The base metals for Color steel consist of cold rolled, HDG electro-galvanized and hot-dip alu-zinc coated steel. The finish coats of Color steels can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.
3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.
4. The color of the Color steel has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.
5. The Color steels can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.
color coated galvanized steel coil Certificate: ISO 9001/2008
The main specification is as belows:
Standards: GB/T12754, JIS3312 , EN 10169 ASTM A755
Thickness: 0.13-0.9mm; Width: 600-1250mm
Tolerance : +2/0mm,thickness tolerance :+0.02/-0.02mm (or according to customers' request).
Coating mass: Top;16-25, Back: 7-10
Coil weight: 5-8 metric tons
Coil DM:I.D: Φ508m/610mm O.D: Max Φ1500mm
Coating type: PE, SMP, HDP, PVDF
Common performance of front coating:
color coated galvanized steel fence panel /ppgi for roofing building materials (1). Thickness: ≥20μm
(2). Pencil Hardness: 2H
(3). 60° specular glossiness of coating: >60
(4). 180°bend: ≤3T
(5). Impact: ≥9J
(6). Salt Fog Resistant: ≥500h
(7). Color difference: <3ΔE
color coated galvanized steel coil Application:
1. Construction: (Outside) workshop, agricultural warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, terrace, retailer booth, roller shutter door
(Inside) door, doorcase, light steel roof structure, folding screen, ceiling, elevator, stairway, vent gutter
2. Electrical appliance: refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker
3. Furniture: central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf
4. Carrying trade: exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board
5. Others: writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment
PPGI PPGI COIL PPGI steel coil
NAME |
ppgi color coated galvanized steel coil |
GALVANIZED |
GALVALUME/ALUZINC |
CERTIFICATE |
ISO9001 |
||
STANDARD |
GB/T-12754 JIS G 3312 EN 10169 ASTM A755 |
GB/T-2518 JIS G 3302 EN 10142/10427 ASTM A653 |
GB/T-14798 JIS G 3321 EN 10215 ASTM A792 |
GRADE |
SGCC DX51D+Z DX53D+Z SGCH CGCD1-CGCD3 CGC340-CGC570
|
SS GRADE33-80 SGCC SGCH SGCD1-SGCD3 SGC340-SGC570 SGCC DX51D+Z DX53D+Z |
GRADE33-80 SGLCC SGLCD SGLCDD SGLC400-SGLC570 SZACC SZACH SZAC340R |
MODEL NO |
0.13MM-0.9MM*600-1250MM |
(0.12-1.5)*600-1250MM |
0.16MM-1.5MM*600-1250MM |
ZINC OR AZ Coating |
60-275g/m2 |
60-275g/m2 |
60-150g/m2 |
Painting |
top paint 16-25um back paint 7-10 |
||
TYPE |
Steel coil Steel sheets/plates Corrugated steel sheets/plates |
Steel coil Steel sheets/plates Corrugated steel sheets/plates |
Steel coil Steel sheets/plates Corrugated steel sheets/plates |
TECHNIQUE |
Hot rolled-cold rolled -galvalume /galvanized -PPGI/PPGL |
Hot rolled-cold rolled - galvanized |
Hot rolled-cold rolled -galvalume /Aluzinc |
|
SURFACE TREATMENT |
Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating,color |
Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating |
|
APPLICATION |
Structural use ,roofing, corrugated roofing, commercial use, household appliance, industry, family |
||
|
SPECIAL APPLICATION |
Wear resistant steel, high- strength - steel plate |
||
