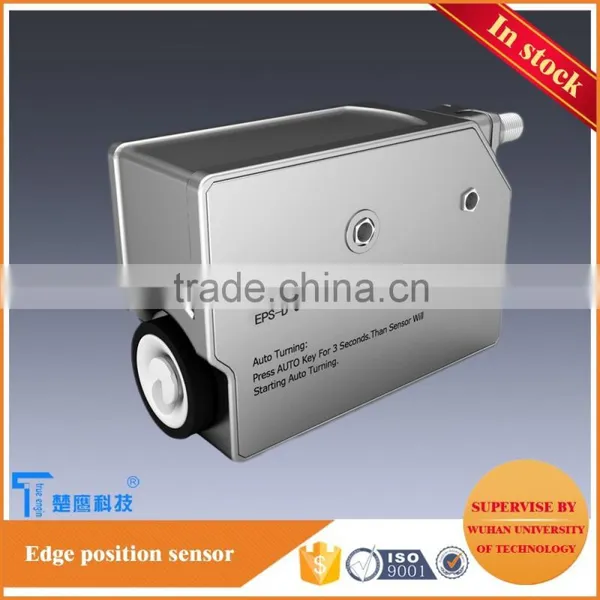

China high quality low price EPS-D Intelligent color code sensor
DETAILS
EPS-D adpots the most advanced CCD sensing technique ,it can analysize the pattern of rolling material directly ,automatically trace the edge and wire ,easily finish the application of tracing . It is intelligent degsin ,keystroke calibration,and the best partner of EPC-200
Characteristics:
1.high accuracy
2.accuracy: 0.02 mm
3.maximum trace: 0.2 mm
4.range of testing: 20 mm
5.fast speed
6.response time: 2 ms
7.stability metal shell,fast digtal communication undisturbed
Function
1.AUTO TUNING ,automatic parameter set ,easy operation
2.automatic red green and blue led
3.can trace constant wire disconstant wire material edge,chromatism edge
4.can trace any wire
operate with EPC-200 to construct servo deviation system.
Fechnique Parameter:
working voltage |
10-30V DC |
corrugation |
2Vpp maximum |
|
power consumption |
50mAmaximum 24Vcc |
output signal |
PNP/NPN,30VDC maximum, default set is NPN |
output current |
100mA maximum |
|
output saturation voltage |
<2V |
response time |
33us |
switch frequncy |
15KHz |
|
analog output signal |
1-3V±10% 5.5Vmaximum |
delay |
0/20ms though delay select |
dark/light |
automatic |
instruction led |
output LED(yellow)/prepartionLED(green) |
|
working temperature |
—10—55℃ |
|
reserve temperature |
—20—70℃ |
|
electromagnetism protection |
double-deck insulation |
testing distance |
9±3mm |
minimun measurement of facula |
blue(465nm)/greem(520nm)/red(630nm) |
restrain |
EN609747-5-2 |
vibration |
0.5mm amplitude ,10…55Hz frequency,inevery direction(EN60068-2-6) |
stike |
11ms(30c)6 strikes at every direction(EN60068-2-27) |
shell material |
allumen |
lid material |
aluminium |
camera material |
optic glass optic glass |
protection level |
IP67 |
connection |
M12-5 |
weight |
170g.maximum |
Effect Picture
