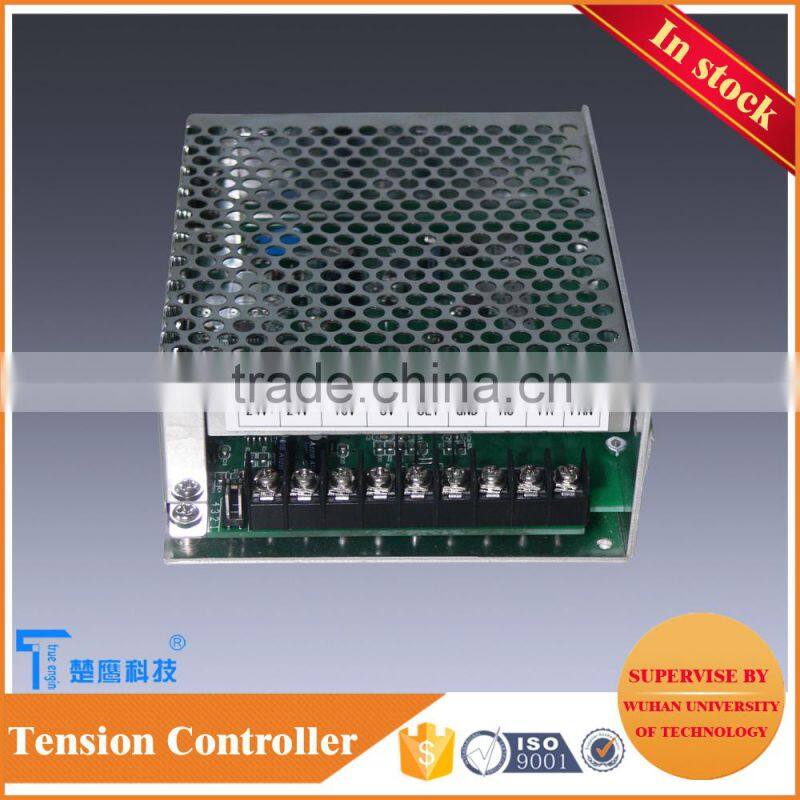

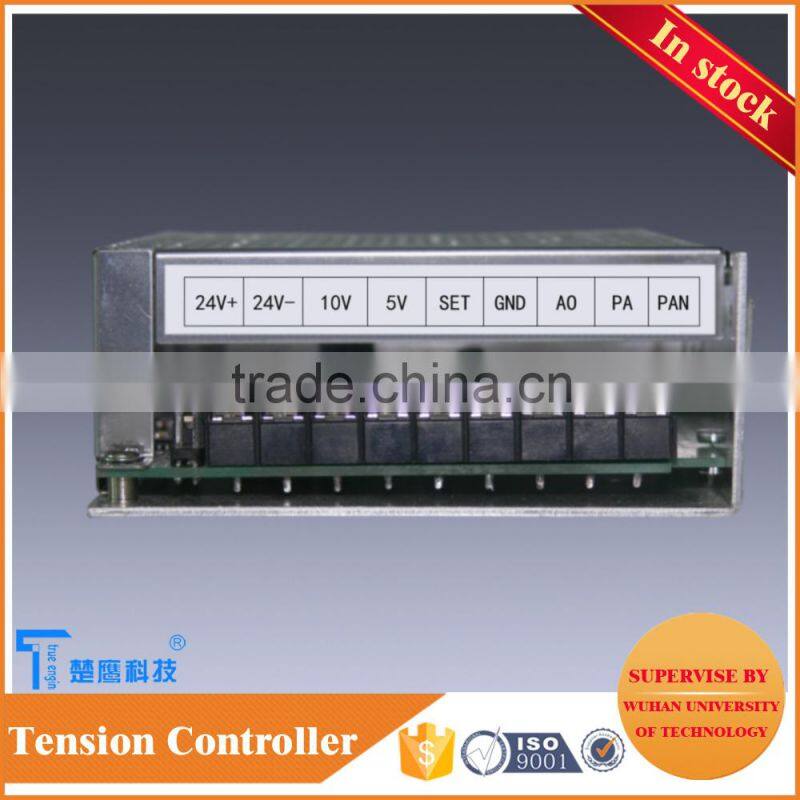

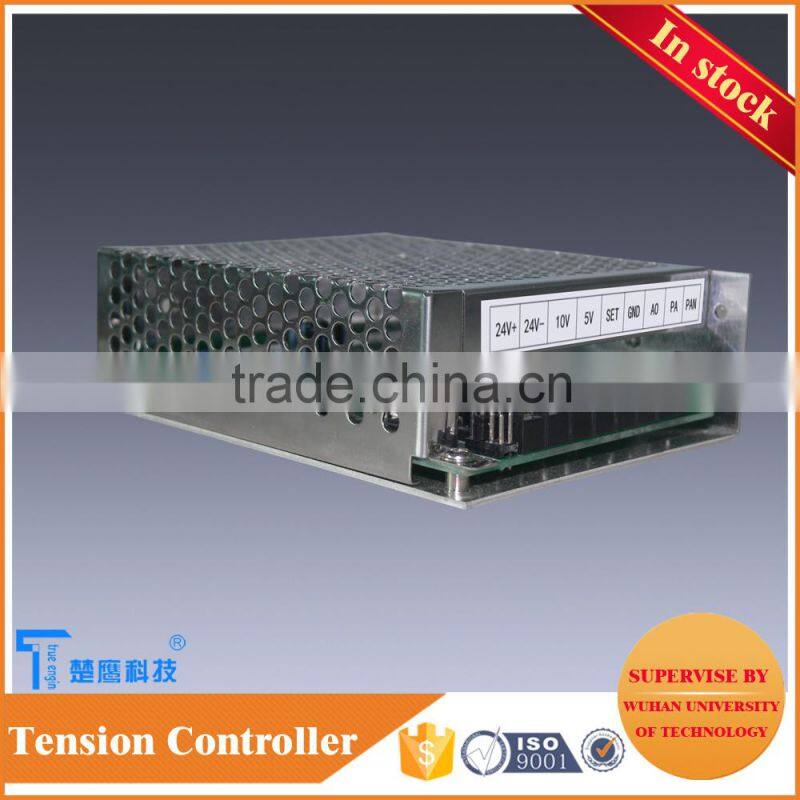

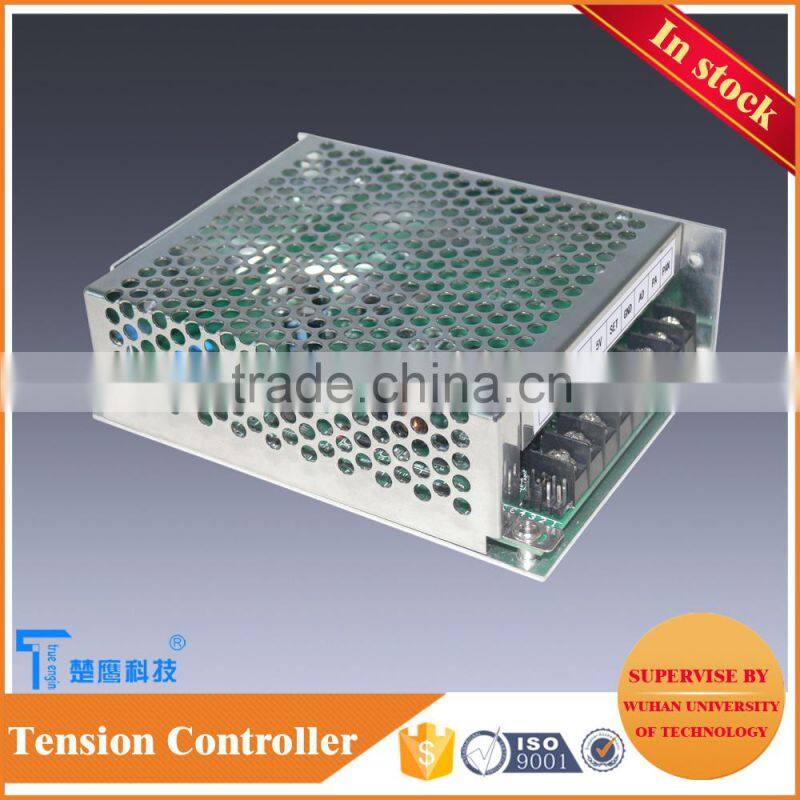

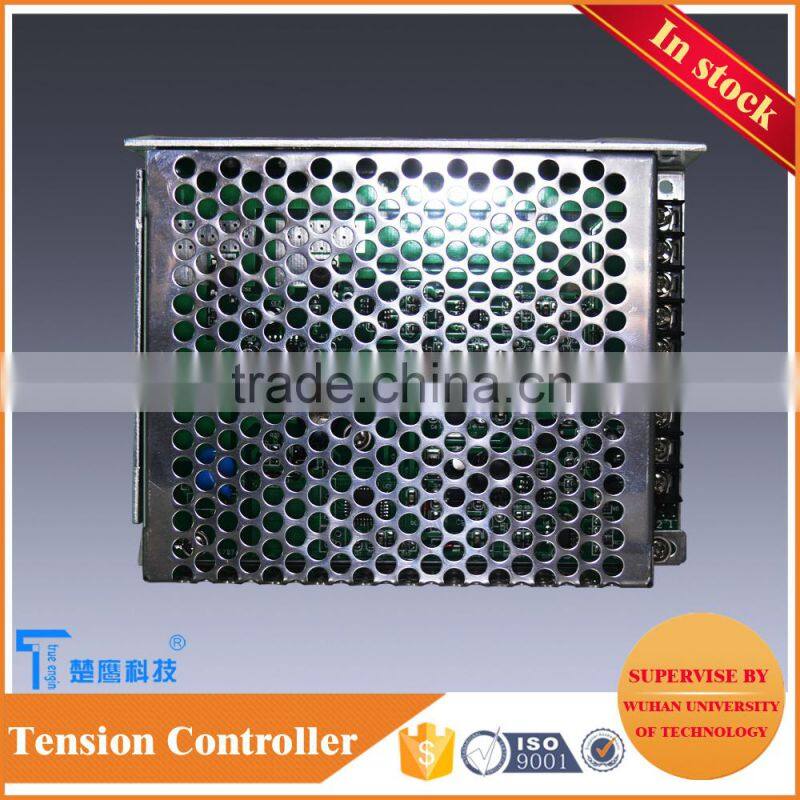

dc24v constant current source to drive magnetic particle brake
high power switch , fanless and efficiency
protection of overcurrent
it can be connected with external potentiometer or PLC
two output modes :contant current / constant voltage
PSN24V-24V/2A input DC24V output DC24V/2A
PSN24V-24V/3A input DC24V output DC24V/3A
PSN24V-24V/4A input DC27V output DC24V/2A
PARAMETERS
mode | PSN24V-24V/2A | PSN24V-24V/3A | PSN24V-24V/4A | |
Power supply | DC 24V | |||
output | Current output | 0~2A/0~24V | 0~3A/0~24V | 0~4A/0~24V |
inside voltage output | +10V DC | |||
input | external control voltage input | 0~10V | ||
external control current input | 0~20mA | |||
size | 130×100×40(mm) | |||
Control mode | Manual control voltage control and current control | |||
other | humidity | 80%RH frostless and non-corrosion | ||
ground | Safe ground | |||
working temperature | Non corrosive gas and dusty-free anhydrous | |||
characteristics | 1.can be adjusted by external potentiometer | |||
2.external 0~10V adjustment can be supported by PLC 0~10V) | ||||
3.external 0~20mA adjustment(can be supported by PLC 0~10mA) | ||||
4.external LED display | ||||
weight | About 0.2kg | |||
