A.polished tungsten carbide rod/330mm carbide rod/ground carbide rod
We provides various grades and types of versatile tungsten carbide rods, and specifications are usually customized. Making of tungsten carbide material, tungsten carbide rod shows superior properties, such as good wear and corrosion resistance, high toughness and hardness, and also long service life.
Tungsten carbide rods are mostly applied for drill bits, end mills, and reamers with sub-micron grain grade YG10X, for non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened steel with ultra-fine grain grade YG8X, etc.
*We have large quantity of extruded carbide rods,HIP sintered, diameter from 2.0mm to 40mm, most length 330mm.
*fast delivery( 7 days for ISO standard diameters).
*100% Quality guaranteed!

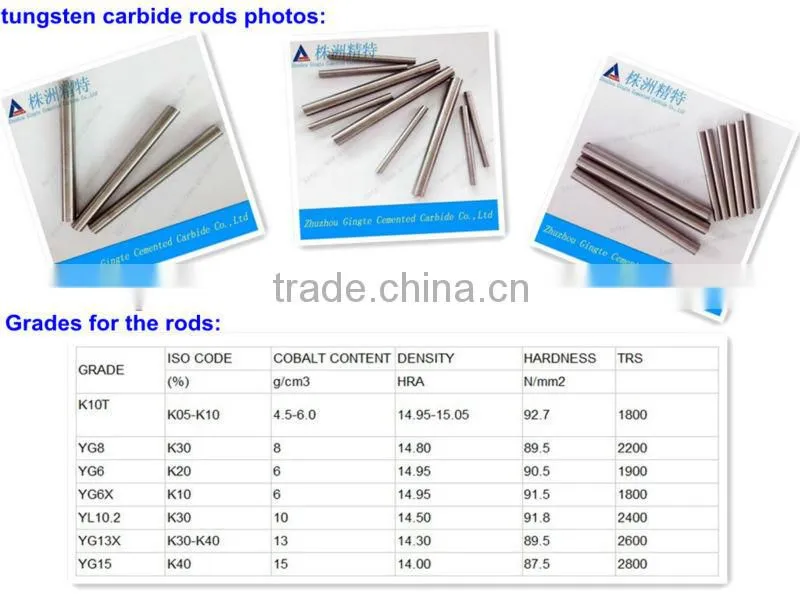

*Recommended Grade for tungsten carbide rod: YG6, YG8, YG6X, YG10X, YS2T etc..
| Item NO. | φ | L | Item NO. | φ | L | |
| D*L | mm | mm | D*L | mm | mm | |
| φ2*L | 2 | <=330 | φ22*L | 22 | <=330 | |
| φ4*L | 4 | φ24*L | 24 | |||
| φ6*L | 6 | φ26*L | 26 | |||
| φ8*L | 8 | φ28*L | 28 | |||
| φ10*L | 10 | φ30*L | 30 | |||
| φ12*L | 12 | φ32*L | 32 | |||
| φ14*L | 14 | φ34*L | 34 | |||
| φ16*L | 16 | φ36*L | 36 | |||
| φ18*L | 18 | φ38*L | 38 | |||
| φ20*L | 20 | φ40*L | 40 |
Un-ground tolerance:diameter φ2- φ 12(+0~+0.35), φ 14-40 φ (+0- φ~+0.6); Length L(+0~+L*1%)
Finish ground tolerance:H6,h6,H8
P.S: How to get exactly quotation based on clients requirements:
- Specification ( like length x width x thickness,OD,ID,shape,angle etc.)
- Tungsten carbide grade, or chemical composition
- surface condition: sintered blank or fine grinding
- tolerance on dimension ( if you have)
- If you are not quite clear about which tungsten carbide grade is suitable, please provide us the application of the carbide products, and our professional technicians will suggest you a suitable one.

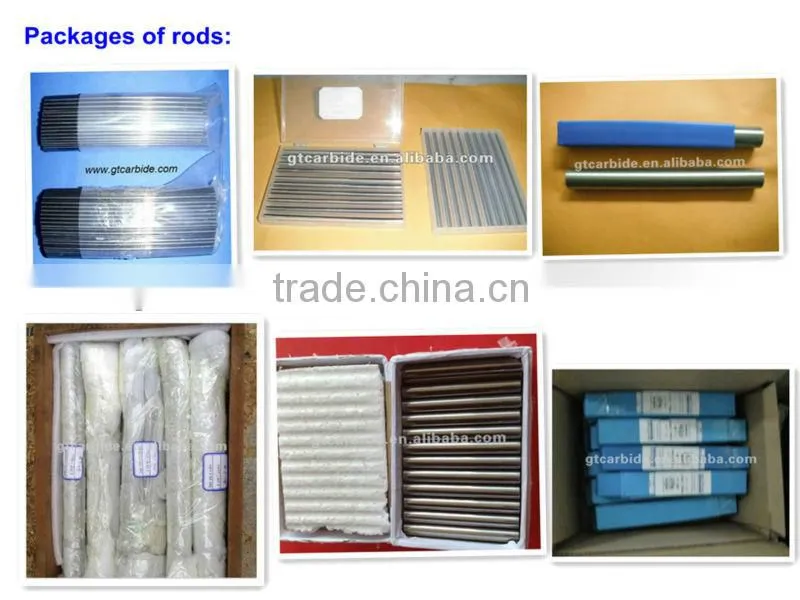

1.Our Packing Options:
2.Why Choose us ?
We are a tungsten carbide manufacturer, located in Zhuzhou City, Hunan Province, China. Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.
The products are popular in the market because of their good quality, moderate price and fast delivery.
3.ZZGT Main Products:
1).carbide saw tips
2).carbide die cores
3).carbide brazed tips
4).carbide milling inserts
5). carbide disc cutters
6).carbide strips and plates
7).carbide mining and drilling tool parts
8).carbide rings and rollers
9).carbide wear resistant parts
10).carbide rods
4.Product Size:
All products according to ISO standard. For any other sizes or odd sizes,we are able to custom made according to clients' requirements or drawings.
5.Our advantage:
*100% quality guarantee(ISO9001)
*fexible payment terms(L/C, T/T, western union etc.)
*competitive price,10 years manufacturing experience
*fast delivery (7-10 workdays)
6.Factory Workshop Show:
7.Processing Chart:
8.OEM Service:
We will exert our best efforts to repay your appreciation for our products!
Please feel free to contact us as your convenient :)
Yeva.Yang (Sales Dept.)
