Specifications
Welding Machine1. CE & CCC approval
2. could weld aluminium & al alloy
3. 3 functions: ac dc tig welding , air plasma cutt

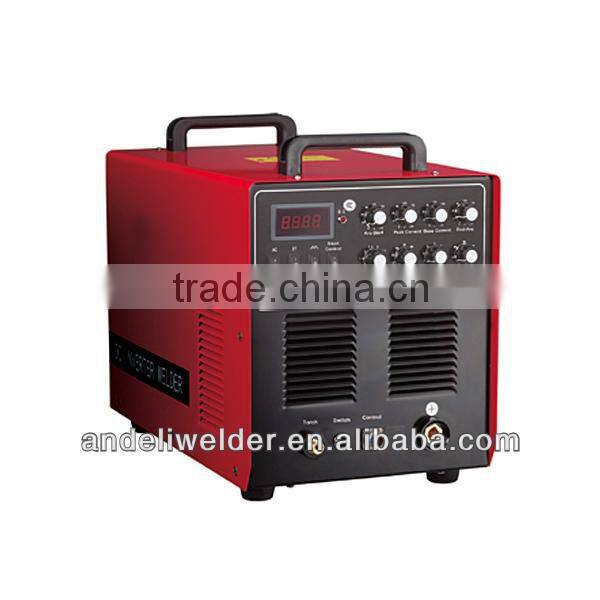

New Design Popular High Frequency AC DC Welding Machine TIG Welder 200AMP
| Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
Application:
1. MOSFET inverter circuit,high frequency arc starting
2. AC square wave is specially suitable for welding aluminum and aluminum alloy products
3. DC function for welding stainless steel,alloy steel,carbon steel,copper and other non-ferrous metal
4. Small splashing, great penetration,easy and simple to operate and aesthetc appearance of weld seam
5. Foot pedal is optional
Specification:
| Inverter TIG-AC/DC Square Wave Welding Machine | |||
| Model | TIG-200AC/DC | TIG-250AC/DC | TIG-315AC/DC |
| Type | MOSFET | ||
| Rated input voltage (V) | single phase 220V±15% | three phase 380V±15% | |
| Rated frequency (Hz) | 50/60 | ||
| Rated input current (A) | 24 | 9.6 | 11.4 |
| No-load voltage (V) | 56 | 45 | 45 |
| Output current (A) | 10-160 | 10-250 | 10-280 |
| Pre-flow time (s) | 0-2 | ||
| Gas delay time (s) | 2-10 | ||
| Duty ratio | 20%-80% | ||
| Decay time (s) | 0-5 | ||
| Duty cycle (%) | 60 | ||
| No-load loss (W) | 60 | ||
| Arc starting | high frequency arc starting | ||
| Efficiency (%) | 85 | ||
| Power factor | 0.93 | ||
| Insulation grade | F | ||
| Protection grade | IP21 | ||
| Net weight (KG) | 23.4 | 31.2 | 31.2 |
| Dimension of packing (mm) | 640×400×510 | 640×400×510 | 640×400×510 |
| including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, TIG torch×1set (air cooled WP-26 for TIG-200AC/DC & TIG-250AC/DC; water cooled WP-18 for TIG-315 | |||
Our Competive:

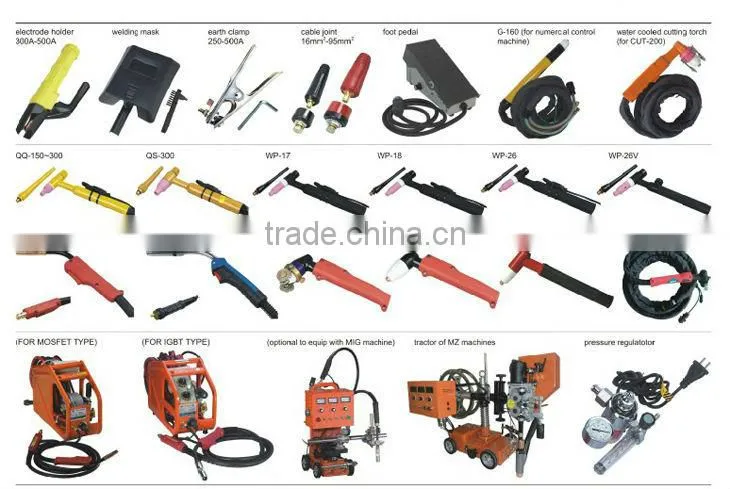

Accessories:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
4.Q:What is the Minimum Order Quantity?
A:Moq usually be 100pcs. Small quantity is also available.
5.Q:Is sample available and the sample fee refundable?
A: Yes, sample fee will be return back in your next formal order.
6.Q:What is the available shipping way?
A: Small quantity usually choose DHL, Fedex, UPS and EMS etc.international door to door express.
Bulk order would be sea/ air shipping.
Package&Shiping
Usually the machines are packed by carton.Big welding machines are packed in wooden box .
- OEM is available
- Deliver time:If there have stock,we will delivery the goods 3-7 work days after received payment. Otherwise,we will delivery it 25-30 work days after received payment.
- Payment:we can accept T/T,Western Union,L/C,Aliexpress Escrow
- Gurantee and aftersale servieces:
- 1 years warranty for all items
- 1%-2% Free spare parts will be provided for repairment.
- Maintenance manual
- 24 hours support by e-mail
- For Large Order,Engineer can be sent to your country for on-site maintenance instructions
