Specifications
1.ac dc inverter tig mma pulse welding machinenstant current:10-160A
3.best price
4.easy to operate
5.CCC CE and so on
high frequency ac dc inverter tig mma pulse welding machine mosfet type TIG-200ACDC
1.Product Features:
1. mosfet inverter circuit, high frequency arc starting
2. AC square wave is specially suitable for welding aluminum and alumiunm alloy products
3. DC function for welding stainless steel, alloy steel, carbon steel, copper and other non-ferrous metal
4. small splashing, great penetration, easy and simple to operate and aesthetic appearance of weld seam
5. foot pedal is optional
2.Technical Details:
| Inverter TIG-AC/DC Square Wave Welding Machine | |||
| Model | TIG-200AC/DC | TIG-250AC/DC | TIG-315AC/DC |
| Type | MOSFET | ||
| Rated input voltage (V) | single phase 220V±15% | three phase 380V±15% | |
| Rated frequency (Hz) | 50/60 | ||
| Rated input current (A) | 24 | 9.6 | 11.4 |
| No-load voltage (V) | 56 | 45 | 45 |
| Output current (A) | 10-160 | 10-250 | 10-280 |
| Pre-flow time (s) | 0-2 | ||
| Gas delay time (s) | 2-10 | ||
| Duty ratio | 20%-80% | ||
| Decay time (s) | 0-5 | ||
| Duty cycle (%) | 60 | ||
| No-load loss (W) | 60 | ||
| Arc starting | high frequency arc starting | ||
| Efficiency (%) | 85 | ||
| Power factor | 0.93 | ||
| Insulation grade | F | ||
| Protection grade | IP21 | ||
| Net weight (KG) | 23.4 | 31.2 | 31.2 |
| Dimension of packing (mm) | 640×400×510 | 640×400×510 | 640×400×510 |
| including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, TIG torch×1set (air cooled WP-26 for TIG-200AC/DC & TIG-250AC/DC; water cooled WP-18 for TIG-315AC/DC) | |||

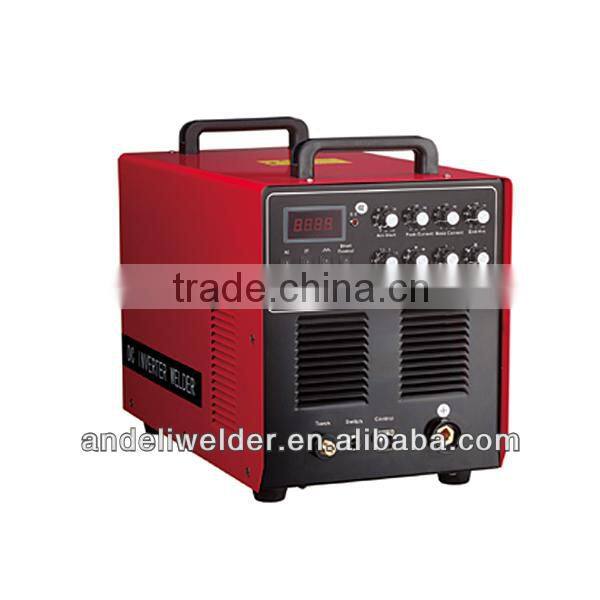

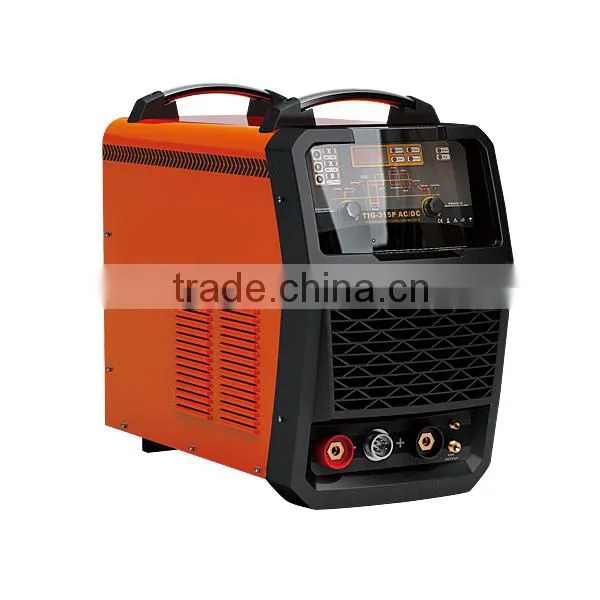

3.Products ShowCase
plastic housing below---
iron housing below---

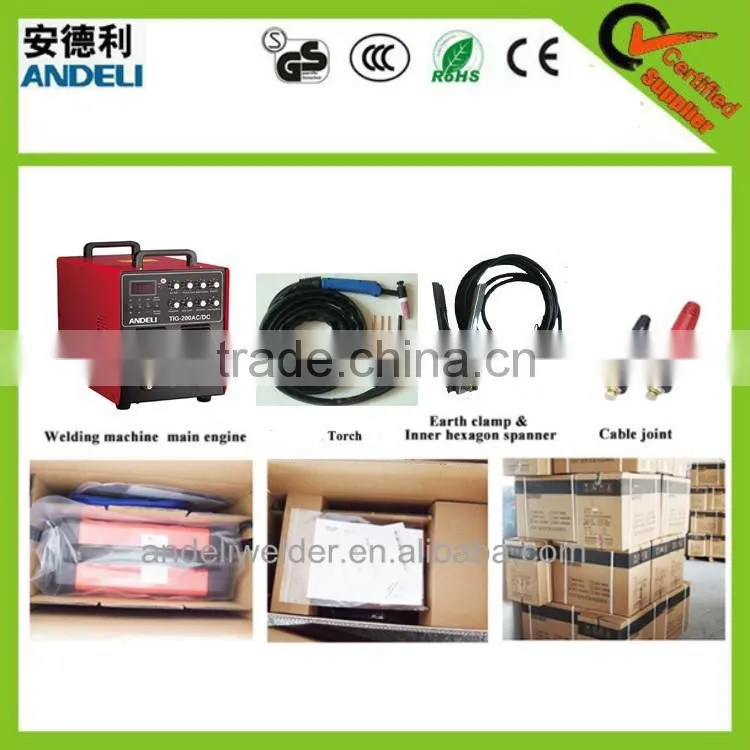

4.Packaging & Shipping:
5.The warranty period: one year; we will provide free parts for repair and accord freight, and guide for maintenance within a year.

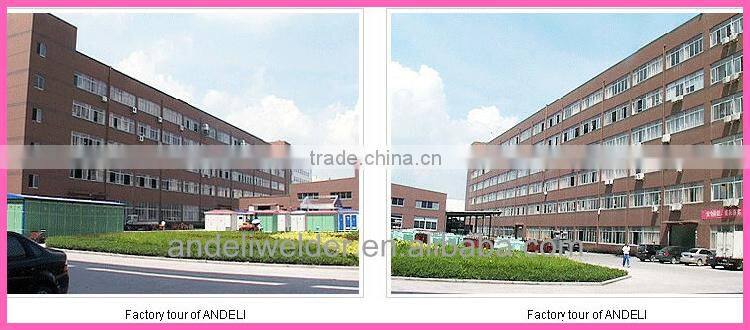

6.Company Information:
| Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
ANDELI Welder selling NO.1 on (chinese biggest B2C website)
7.FAQ
Skype:summerlin8023
Thanks for your time,feedback will be given to you within 24 hours.
