welding machine for hardware wholesaler ac dc tig welder for sale
- 5000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | ANDELI |
Model Number: | TIG 200 ac dc | Arc Current: | 20A | Pulse Frequency: | 40KHz |
Pilot Arc Current: | 20-200A | Rated Duty Cycle: | 60% | Motor Type: | DC Motor |
Dimensions: | 640*400*510 | Usage: | welding aluminum,steel | Voltage: | 220V 380V |
Power(W): | 50KVA | Certification: | CE,CCC,ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
ac dc tig welder for sale1.MMA & TIG & pulse TIG 3 in 1
2.IGBT module technology
3.aluminum alloy
4.CE,CCC

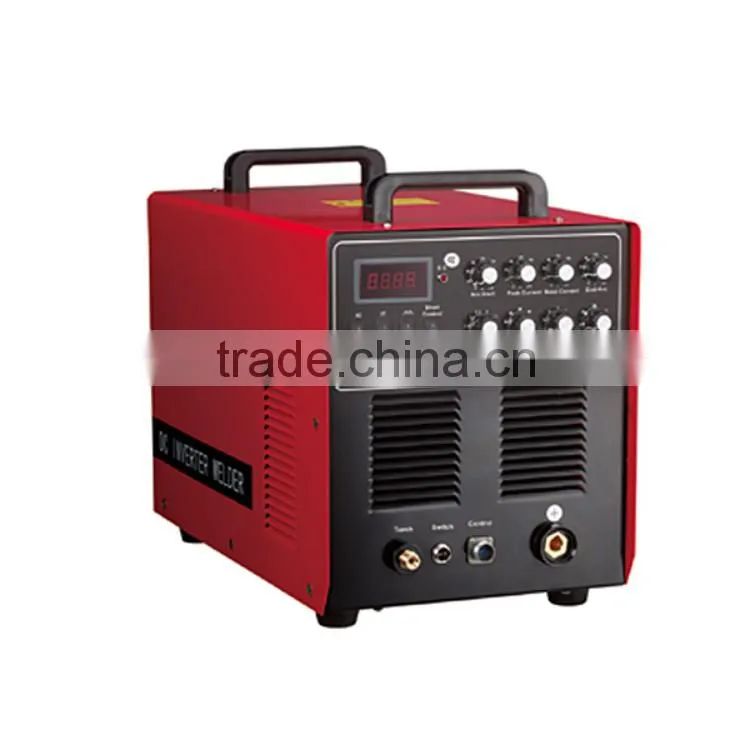

welding machine for hardware wholesaler ac dc tig welder for sale
1.Product Features and Technical Details
Name: tig 200 ac dc
A--Product Features
*MOSFET Type
1.MOSFET inverter circuit,high frequency arc startin
2.AC square wave is specially suitable for welding aluminum and aluminum alloy products
3.DC function for welding stainless steel,aloy steel,carbon steel,copper and other non-ferrous metal
4.small splashing,great penetration,essy and simple to operate and aesthetic appearance of weld seam
* IGBT Module Type
1.IGBT high frequency soft swtich taransform,high efficiency and reliability
2.MCU controlled technology,multi-function in one machine,convenient to use
3.foot pedal to control current is optional
4.passive power factor correction makes power factor higher
5.easy to arc starting,stablearc,high performance
6.accurate adjustment can achieve great penetration,aesthetic appearance of weld seam and low electrode consumption
B--Technical Details
Inverter TIG-AC/DC Square Wave Welding Machine | |||
Model | TIG-200AC/DC | TIG-250AC/DC | TIG-315AC/DC |
Type | MOSFET | ||
Rated input voltage (V) | single phase 220V±15% | three phase 380V±15% | |
Rated frequency (Hz) | 50/60 | ||
Rated input current (A) | 24 | 9.6 | 11.4 |
No-load voltage (V) | 56 | 45 | 45 |
Output current (A) | 10-160 | 10-250 | 10-280 |
Pre-flow time (s) | 0-2 | ||
Gas delay time (s) | 2-10 | ||
Duty ratio | 20%-80% | ||
Decay time (s) | 0-5 | ||
Duty cycle (%) | 60 | ||
No-load loss (W) | 60 | ||
Arc starting | high frequency arc starting | ||
Efficiency (%) | 85 | ||
Power factor | 0.93 | ||
Insulation grade | F | ||
Protection grade | IP21 | ||
Net weight (KG) | 23.4 | 31.2 | 31.2 |
Dimension of packing (mm) | 640×400×510 | 640×400×510 | 640×400×510 |
including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, TIG torch×1set (air cooled WP-26 for TIG-200AC/DC & TIG-250AC/DC; water cooled WP-18 for TIG-315AC/DC) |

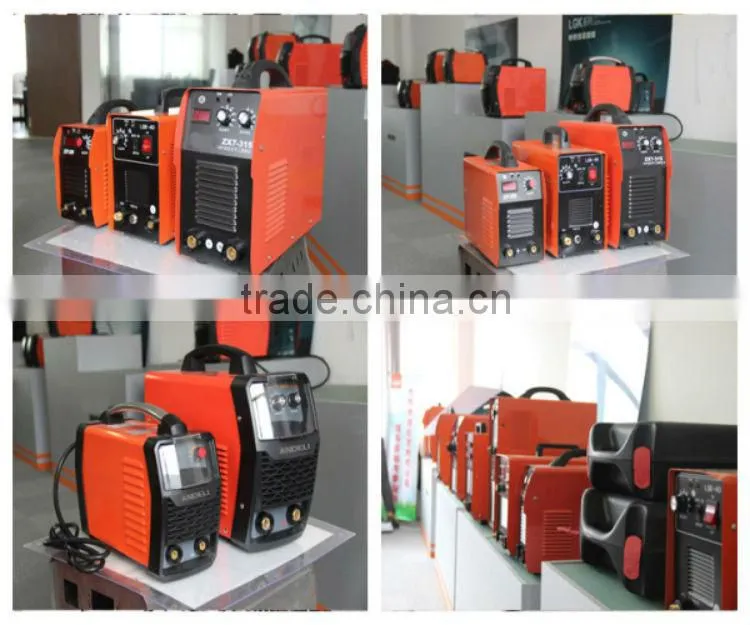

2. Product Show
Accessories Including:
including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, TIG torch×1set (air cooled WP-26 for TIG-200AC/DC & TIG-250AC/DC; water cooled WP-18 for TIG-315AC/DC)

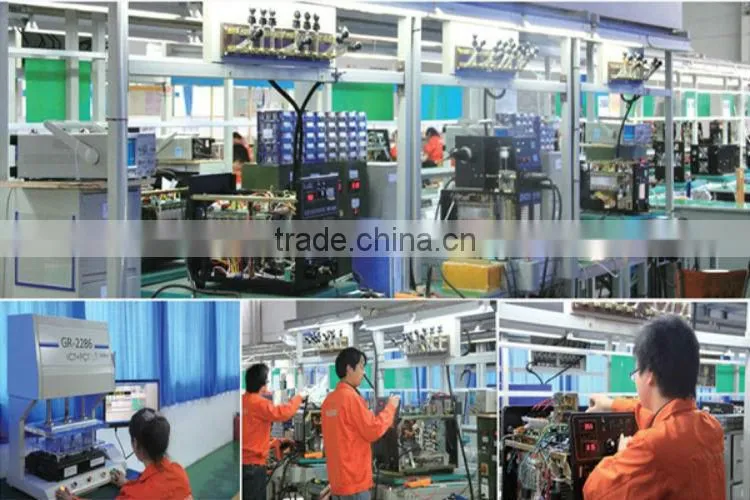

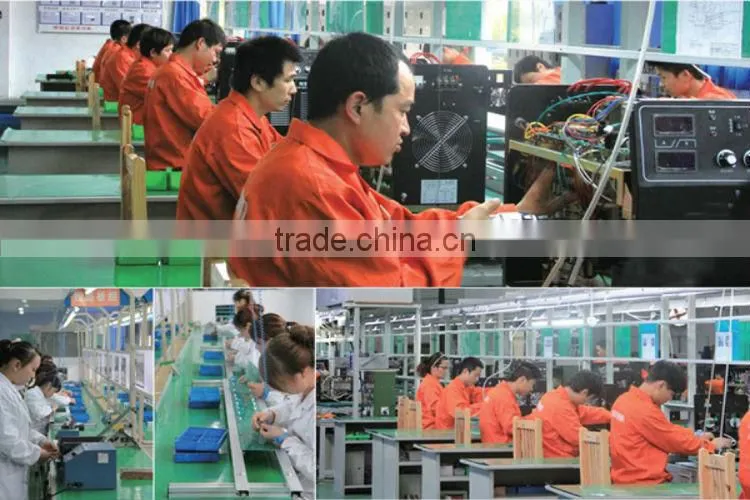

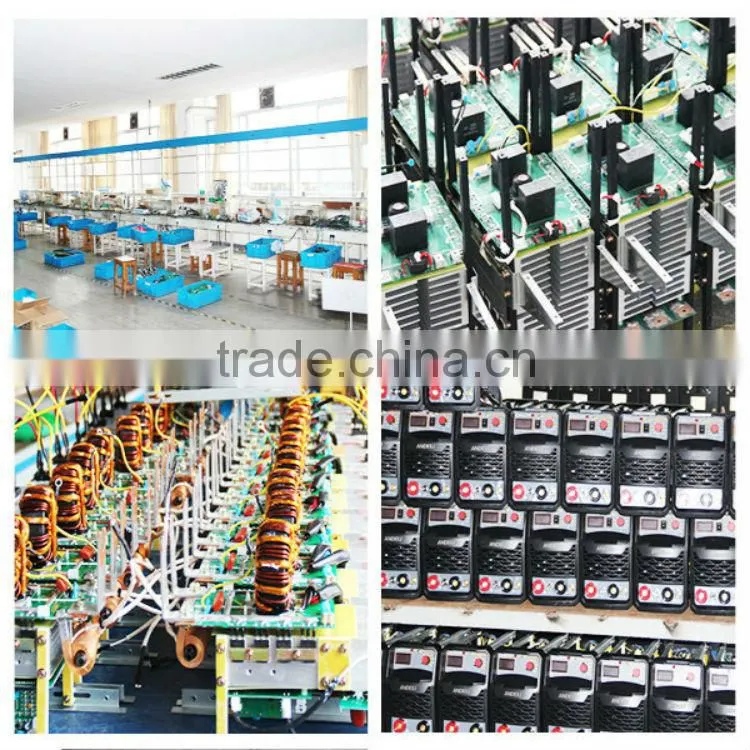

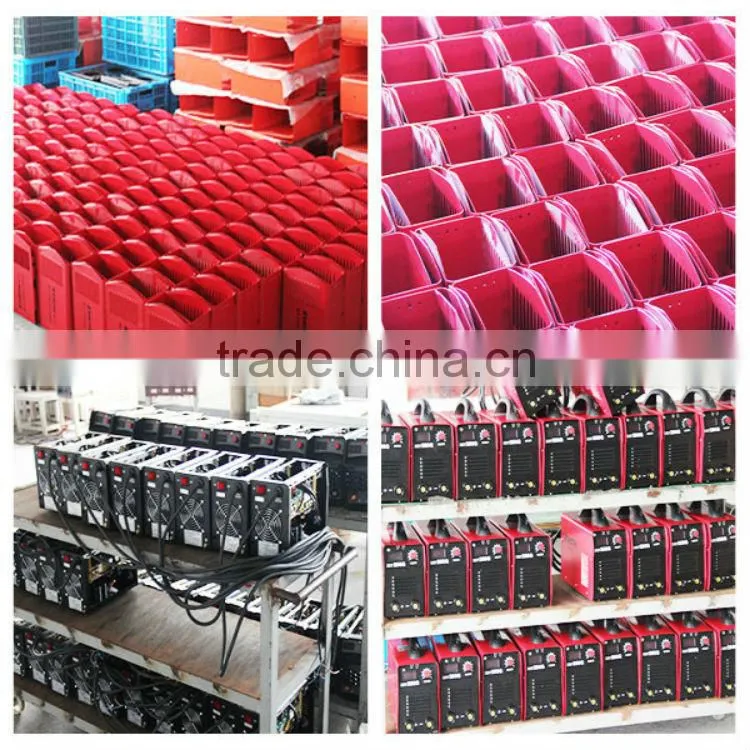

3. About us
Why choose ANDELI Brand welding machine?
·Welding machine Manufacturer,OEM vendor.
·Annual 40,000 sets welders exported, good feedback.
·Dustproof straight blowing design----Super size radiator
·SMT patent PCBS----amorphous transformer
·Import Fairchild,Infineon,Renasas IGBT/Mosfet
·Other famous brand components.
·Foreign site instruction for large order
·1% free spare parts to support repairment,one year warranty.
AS a result,
ANDELI Welder selling NO.1 on (chinese biggest B2C)
Thanks for your time,Feedback in 24 hours when Inquiry,Even in weekend!
