AC/DC Aluminum TIG200 Welding Machine
- 10000 Set / Sets per Month
- Ningbo/Shanghai China
- T/T Credit Card
- AITOP 5000A/8000A Li ion 18650 32650 Battery 5000A 8000A Mini Pneumatic Aluminum Laser Point Spot Welder Welding Machine For Lithium Cell
- Miller MigMatic S400i Synergic MIG Welder 415V Engine Welder
- DX450 Diesel Engine Welder
- Drill stabilizer hardbanding machine
- Movavle hardbanding machine
- Hardbanding welding machine
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | ANDELI Or OEM |
Model Number: | WSE200/250 | Arc Current: | 200;250A | Pulse Frequency: | 50/60HZ |
Pilot Arc Current: | 10-200,10-250A | Rated Duty Cycle: | 60% | Motor Type: | Other, AC/DC Motor |
Dimensions: | 600*440*415mm | Usage: | For professional purpose, medium duty welding jobs. | Voltage: | Single phase 230V |
Certification: | CE ROHS | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

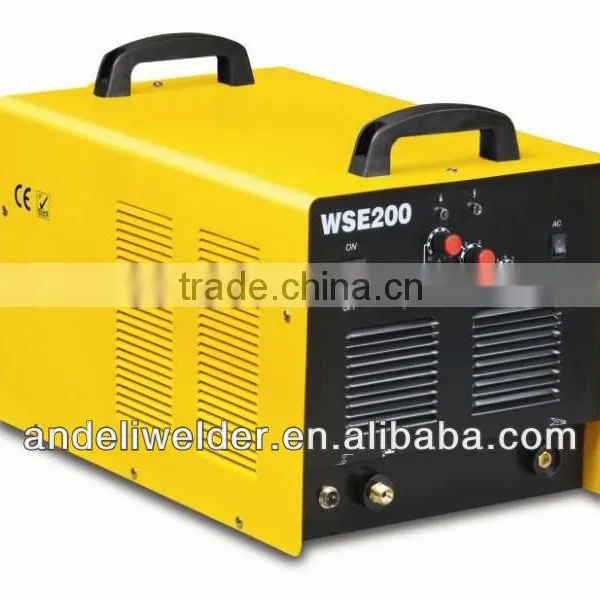

AC/DC Aluminum TIG-200 Welding Machine
Features:
• Square wave output, stable arc, HF.
• AC/DC Tig welding,especially for aluminum material welding.
• Foot pedal controller can be added as extra function.
• Built-in alarming and protective circuits are provided to prevent over current, over heat, over voltage, low voltage, etc and ensure safe operation.
• High duty cycle.
• Suitable for welding of various metallic materials such as aluminum, aluminum alloy, carbon steel, stainless steel, copper, etc.
Supply:
• OEM sevice offered: Machine Color, Color Carton, Model or Other Stuff.
• With standard spareparts: TIG Welding Torch, Grounding Clamp and Mask.
• One Year Warranty.
• Technical Support.
Main Market:
Europe, North America, South America , Southeast Asia, Middle East, Africa.
Accessories:
With standard spareparts: TIG Welding Torch, Grounding Clamp and Mask.
Certificate:
CE,ROHS,GS,ISO9001
Specification:
ITEM | WSE200 | WSE250 |
Power voltage(V) | 230 | 230 |
Rated input current (A) | 14 | 22 |
Output current range (A) | 10~200 | 10~250 |
Preheat times(S) | 0~2 | 0~2 |
Delay times(S) | 2~10 | 2~10 |
Attenuated time(S) | 0~5 | 0~5 |
Arc strike time | HF | HF |
No-load voltage (V) | 56 | 56 |
Rated output voltage (V) | 18 | 20 |
Duty cycle (%) | 60 | 60 |
Efficiency (%) | 80 | 80 |
Insulation class | F | F |
G/N Weight(KG) | 24/22 | 25/23 |
Measurement(MM) | 570*370*415 | 570*370*415 |
Cod.(NO | 892022 | 892034 |
TIG Welding Details:
In TIG welding (tungsten inert gas), the welding arc is formed between a non-consumable tungsten electrode and the base material. Argon, which is most commonly used as the shielding gas, is fed through the TIG torch to shield the electrode and molten weld pool. The current is either alternating or direct current, which can be pulsed as necessary.
DC TIG welding
The direct-current TIG welding process is suitable for welding unalloyed and low-alloy steels, stainless steels and titanium.
AC TIG welding
Alternating- current TIG, of AC TIG welding is particularly suitable for welding aluminium and aluminium alloys. The primary area of application for AC TIG welding is used with materials, but the process is also used frequently in repairing welding for thicker aluminium pieces.
Why not try one sample first?Choosing our products,give yourself maximum profit. Inquires are typically answered within 24 hours.
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
4.Q:What is the Minimum Order Quantity?
A:Moq usually be 100pcs. Small quantity is also available.
5.Q:Is sample available and the sample fee refundable?
A: Yes, sample fee will be return back in your next formal order.
6.Q:What is the available shipping way?
A: Small quantity usually choose DHL, Fedex, UPS and EMS etc.international door to door express.
Bulk order would be sea/ air shipping.
Package&Shiping
Usually the machines are packed by carton.Big welding machines are packed in wooden box .
- OEM is available
- Deliver time:If there have stock,we will delivery the goods 3-7 work days after received payment. Otherwise,we will delivery it 25-30 work days after received payment.
- Payment:we can accept T/T,Western Union,L/C,Aliexpress Escrow
- Gurantee and aftersale servieces:
- 1 years warranty for all items
- 1%-2% Free spare parts will be provided for repairment.
- Maintenance manual
- 24 hours support by e-mail
- For Large Order,Engineer can be sent to your country for on-site maintenance instructions
Thanks for your view ,welcome to visit our website:
Pls contact with me:Name:Hans Fang
Tel: +86 0577 61722856/+86 15669898605
Skype:hanks20082
