Specifications
IGBT MMA welding machine1. Light & Portable
2. duty cycle 60%
3. 4mm rod continuous welding
4.High welding quality

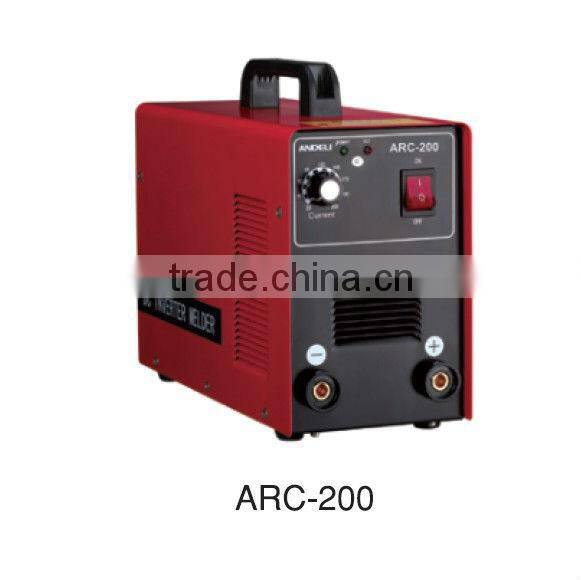

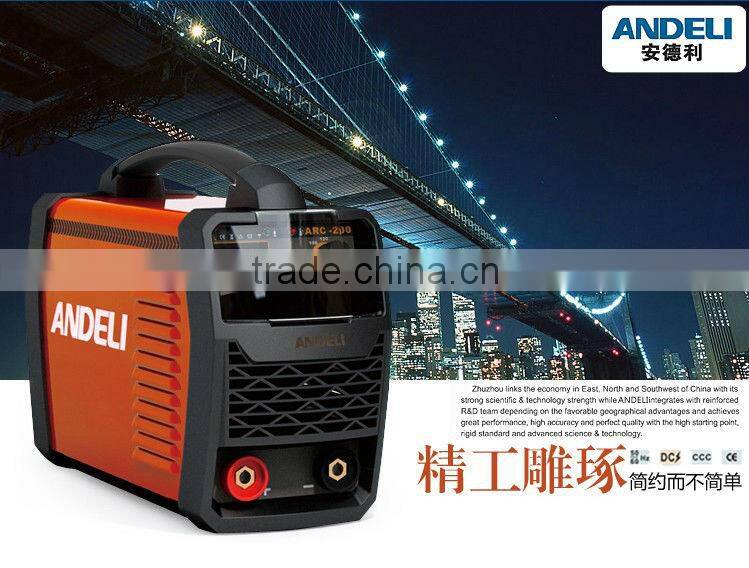

High Duty Cycle MMA Inverter Mini ARC Welding Machines ARC-200(CE)
| Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
Application:
1. MOSFET inverter circuit,high frequency arc starting
2. Compact,portable,highly effective,low power consumption
3. Automatic compensation for voltage fuctuation,can work against input voltage fuctuation (V+- 15%)
4. Small splashing,great penetration,easy and simple to operate and aesthetic appearance of weld seam
5. Over-voltage protection,undervoltage protection,over current protection,over load protection.
Specification:
| Inverter DC MMA Welding Machine | ||||||
| Model | ARC-160 | ARC-200 | ARC-250 | ARC-315 | ARC-400 | ARC-500 |
| Type | MOSFET | |||||
| Rated input voltage (V) | single phase AC220 ±15% | three phase AC380 ±15% | ||||
| Rated frequency (Hz) | 50/60 | |||||
| Rated input power (KVA) | 5.3 | 7 | 7.9 | 13 | 17 | 24 |
| Rated input current (A) | 24 | 31.8 | 12 | 19.5 | 25.4 | 35.7 |
| Rated output | 160A/26.4V | 200A/28V | 220A/28.8V | 315A/32.6V | 380A/35.2V | 480A/39.2V |
| Output current (A) | 20-160 | 20-200 | 20-220 | 20-315 | 20-380 | 20-480 |
| No-load voltage (V) | 56±5 | 56±5 | 60±5 | 60±5 | 60±5 | 60±5 |
| Rated duty cycle (%) | 60 | |||||
| Efficiency (%) | 85 | |||||
| Power factor | 0.85 | |||||
| Protection grade | IP21 | |||||
| Insulation grade | F | |||||
| Net weight (KG) | 7.6 | 8 | 16.4 | 23.9 | 29.9 | 31.5 |
| Gross weight (KG) | 8.4 | 9.5 | 18.2 | 27.3 | 33.2 | 35.1 |
| Housing of machine | iron | |||||
| Dimension of machine (mm) | 400×155×300 | 412×155×300 | 495×203×359 | 571×324×431 | ||
| Packing | carton | |||||
| Dimension of packing (mm) | 450×235×390 | 507×271×320 | 560×270×460 | 640×400×510 | ||
| including accessories: earth clamp×1pcs, cable joint×2pcs, inner hexagon spanner×1pcs | ||||||
Our Competive:
Accessories:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 24 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
4.Q:What is the Minimum Order Quantity?
A:Moq usually be 100pcs. Small quantity is also available.
5.Q:Is sample available and the sample fee refundable?
A: Yes, sample fee will be return back in your next formal order.
6.Q:What is the available shipping way?
A: Small quantity usually choose DHL, Fedex, UPS and EMS etc.international door to door express.
Bulk order would be sea/ air shipping.
Package&Shiping
Usually the machines are packed by carton.Big welding machines are packed in wooden box .
- OEM is available
- Deliver time:If there have stock,we will delivery the goods 3-7 work days after received payment. Otherwise,we will delivery it 25-30 work days after received payment.
- Payment:we can accept T/T,Western Union,L/C,Aliexpress Escrow
- Gurantee and aftersale servieces:
- 1 years warranty for all items
- 1%-2% Free spare parts will be provided for repairment.
- Maintenance manual
- 24 hours support by e-mail
- For Large Order,Engineer can be sent to your country for on-site maintenance instructions
