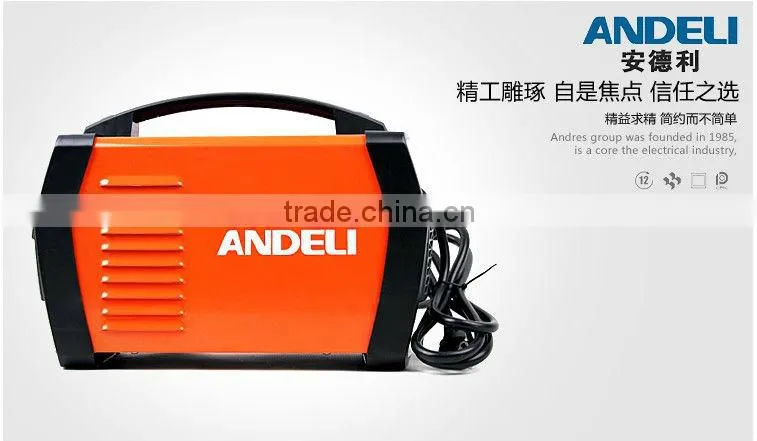

IGBT Soft Switch Inverter CO2 GAS Shielded Welding Machine Mig-250 Manufacturer With CE,CCC
| Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
Application:
1. Suitable for welding metal plate with thickness above 0.8mm
2. Low cost but with high effciency
3. Both output current and voltage could be adjustable to satisfy different welding requirement
4. Small splashing,great penetration
5. Two options of wire feeder: built-in or separated
Specification:
| Inverter CO2 Gas Shielded Welding Machine | ||||
| Model | MIG-200Y | MIG-250Y | MIG-200F | MIG-250F |
| Type | MOSFET | |||
| Rated input voltage (V) | single phase AC220 ±15% | three phase AC380 ±15% | single phase AC220 ±15% | three phase AC380 ±15% |
| Rated frequency (Hz) | 50/60 | |||
| Rated input current (A) | 23.5 | 10.5 | 23.5 | 10.5 |
| Output current (A) | 180 | 220 | 180 | 220 |
| Output voltage (V) | 23 | 25 | 23 | 25 |
| Duty cycle (%) | 60 | 60 | 60 | 60 |
| Efficiency (%) | 85 | 85 | 85 | 85 |
| Power factor | 0.93 | 0.93 | 0.93 | 0.93 |
| Diameter of wire (mm2) | 0.8 | 1.0 | 0.8 | 1.0 |
| Type of wire feeder | built-in | built-in | separated | separated |
| Net weight of machine(KG) | 33.7 | 35.2 | 11.9 | 13.7 |
| Gross weight of machine packing(KG) | 40 | 41.3 | 13 | 14.8 |
| Gross weight of accessories packing (KG) | — | — | 16.3 | 16.3 |
| Dimension of machine (mm) | 630×315×695 | 630×315×695 | 500×210×370 | 500×210×370 |
| Dimension of packing- machine (mm) | 660×370×750 | 660×370×750 | 560×270×460 | 560×270×460 |
| Dimension of packing-wire feeder (mm) | — | — | 555×435×410 | 555×435×410 |
| including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, MIG torch×1pcs, | ||||
| additional accessories for MIG-200F/MIG-250F: double drive wire feeder×1pcs, control cable×5meters | ||||
Our Competive:
Strong Welding Capacity:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
Our salesmen will reply your inquiry within 24 hours. Any order is welcome. If you like to be our agent in your country, we can give you any support on the technique & other aspects.
If you have any questions ,please contact with us.
