Specifications
mig welding machine1.IGBT inverter welder
2.GAS welding machine
3.MIG WELDING

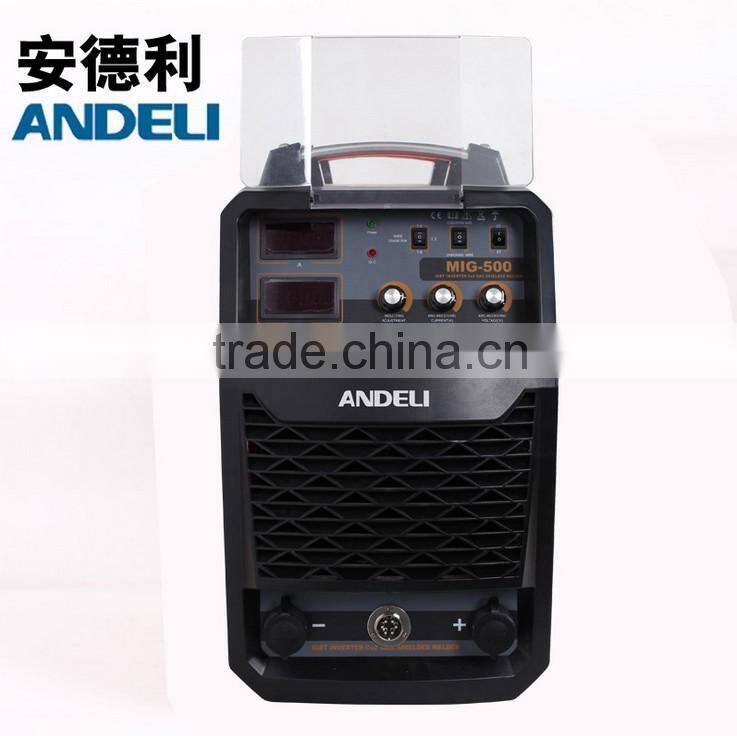

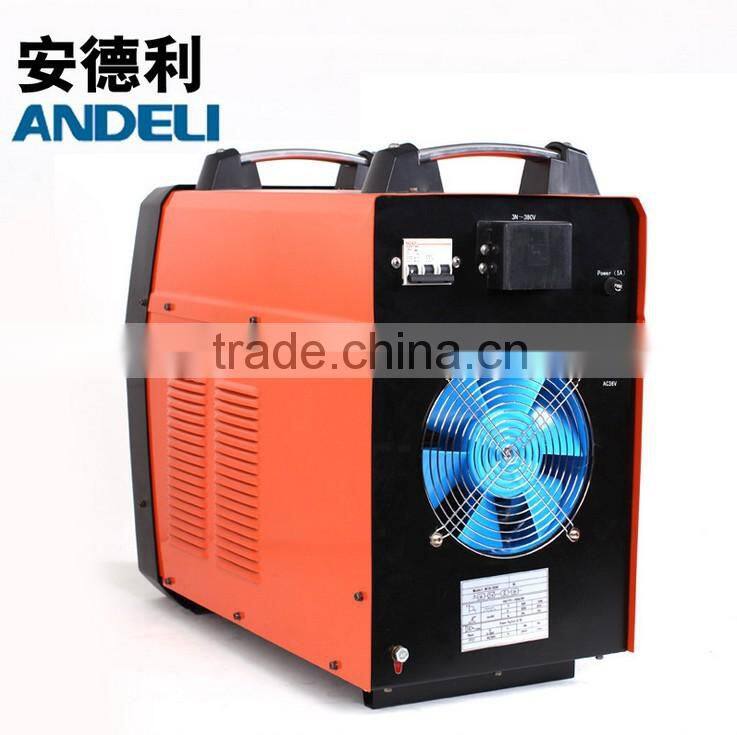

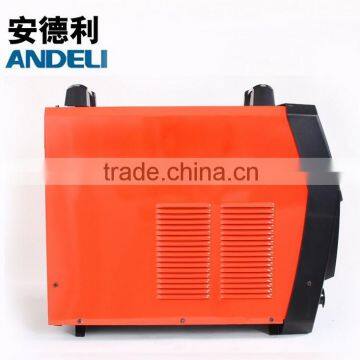

Cheap 3 Phase IGBT CO2 Inverter MIG Welding Machine Industrial MIG 500 Welder
| Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
Application:
1. Adopts IGBT module technology
2. Suitable for welding metal plate with thickness above 1.0mm
3. Soft-switching technology brings higher effciency and more stable performance
4. Both output current and voltage could be adjustable,could work with various automatic appliances
5. Small splashing,great penetration,easy and simple to operate and aesthtic appearance of weld seam
6. Models of MIG-S have decrease characteristic,with the functions of MMA&MIG&carbon arc gouging
Specification:
| MIG CO2 Gas Shielded Welding Machine | ||||||
| Model | MIG-350 | MIG-500 | MIG-630 | MIG-350S | MIG-500S | MIG-630S |
| Type | IGBT Module | IGBT Module | ||||
| Function | MIG | MIG/MMA/carbon arc welding | ||||
| Rated input voltage (V) | three phase AC380 ±15% | three phase AC380 ±15% | ||||
| Rated frequency (Hz) | 50/60 | 50/60 | ||||
| Rated input power (KVA) | 14 | 25 | 35 | 14 | 25 | 35 |
| Rated input current (A) | 21 | 38 | 53 | 21 | 38 | 53 |
| Input protection circuit breaker (A) | 40 | 63 | 100 | 40 | 63 | 100 |
| Rated working voltage (V) | 34 | 40 | 45 | 34 | 40 | 45 |
| Output current (A) | 60-350 | 60-500 | 60-630 | MIG: 60-350 MMA: 30-350 | MIG: 60-500 MMA: 30-500 | MIG: 60-630 MMA: 50-630 |
| Output voltage (V) | 15-40 | 15-50 | 15-50 | MIG: 15-40 MMA: ------ | MIG: 15-50 MMA: ------ | MIG: 15-50 MMA: ------ |
| Diameter of input power cable (mm3) | ≥3×4 | 90% | ≥3×6 | ≥3×4 | ≥3×6 | ≥3×6 |
| Welding cable (mm2) | ≥35 | ≥50 | ≥70 | ≥35 | ≥50 | ≥70 |
| Diameter of welding wire (mm3) | 0.8/1.0/1.2 | 1.0/1.2/1.6 | 1.0/1.2/1.6 | MIG: 0.8/1.0/1.2 MMA: 6.0 | MIG: 1.0/1.2/1.6 MMA: 6.0 | MIG: 1.0/1.2/1.6 MMA: 6.0 |
| No-load voltage (V) | 50 | 75 | 95 | 75 | 75 | 95 |
| No-load loss (W) | 100 | 150 | 150 | 100 | 150 | 150 |
| Rated duty cycle (%) | 80 | 80 | 80 | 80 | 80 | 80 |
| Efficiency (%) | 85 | 85 | 85 | 85 | 85 | 85 |
| Power factor | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
| Wire feeder | separated | separated | ||||
| Net weight (KG) | 40.5 | 50.3 | 60.7 | 43 | 51.6 | 64 |
| Gross weight (KG) | 45.5 | 55.8 | 73 | 46.5 | 54.6 | 67 |
| Housing of machine | iron | iron | iron | iron | iron | iron |
| Dimension of machine (mm) | 645×335×576 | 700×360×638 | 642×323×573 | 700×360×638 | ||
| Packing | carton/carton | wooden box/carton | carton/carton | wooden box/carton | ||
| Dimension of packing (mm) | machine: 700×390×660 wire feeder: 555×435×410 | machine: 760×480×710 wire feeder: 555×435×410 | machine: 705×390×670 wire feeder: 690×250×460 | machine: 760×480×710 wire feeder: 555×435×410 | ||
| including accessories: earth clamp×1pcs, cable joint×2pcs, gas regulator×1pcs, double drive wire feeder×1pcs, grounding cable×3meters, control line×5meters, MIG torch×1pcs | ||||||
| additional accessories for NB-350S/500S/630S: cable joint×1pcs, inner hexagon spanner×1pcs | ||||||
Competive:
More Info:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 24 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.And we do producing many other different series too,if you feel interests,please send us an inquiry!
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
4.Q:What is the Minimum Order Quantity?
A:Moq usually be 100pcs. Small quantity is also available.
5.Q:Is sample available and the sample fee refundable?
A: Yes, sample fee will be return back in your next formal order.
6.Q:What is the available shipping way?
A: Small quantity usually choose DHL, Fedex, UPS and EMS etc.international door to door express.
Bulk order would be sea/ air shipping.
Package&Shiping
Usually the machines are packed by carton.Big welding machines are packed in wooden box .
- OEM is available
- Deliver time:If there have stock,we will delivery the goods 3-7 work days after received payment. Otherwise,we will delivery it 25-30 work days after received payment.
- Payment:we can accept T/T,Western Union,L/C,Aliexpress Escrow
- Gurantee and aftersale servieces:
- 1 years warranty for all items
- 1%-2% Free spare parts will be provided for repairment.
- Maintenance manual
- 24 hours support by e-mail
- For Large Order,Engineer can be sent to your country for on-site maintenance instructions
