220v IGBT Type DC Mig Welding Machine

Name: 220v IGBT Type DC Mig Welding Machine
Brand: ANDELI
SKU: 132851515
Availability: InStock

US$ 1 - 999 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

ANDELI

Andeli Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name ANDELI

Model Number MIG-350

Arc Current 21

Pulse Frequency 50/60

Pilot Arc Current 60-350

Rated Duty Cycle 60%

Dimensions 642*323*573

Usage welder mig

Voltage 380

Power(W) 14

Certification CCC CE ROHS

Warranty 1 year

After-sales Service Provided Overseas service center available

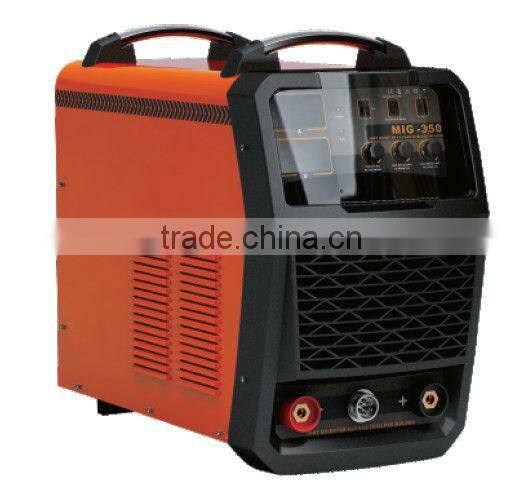

220v IGBT type DC mig welding machine

Product Description

1.welding machine mig welder
2.Low cost but high effciency
3.can be adjusted for different requirement
4.small splash
5.Long life

Product Show:

Specifications:

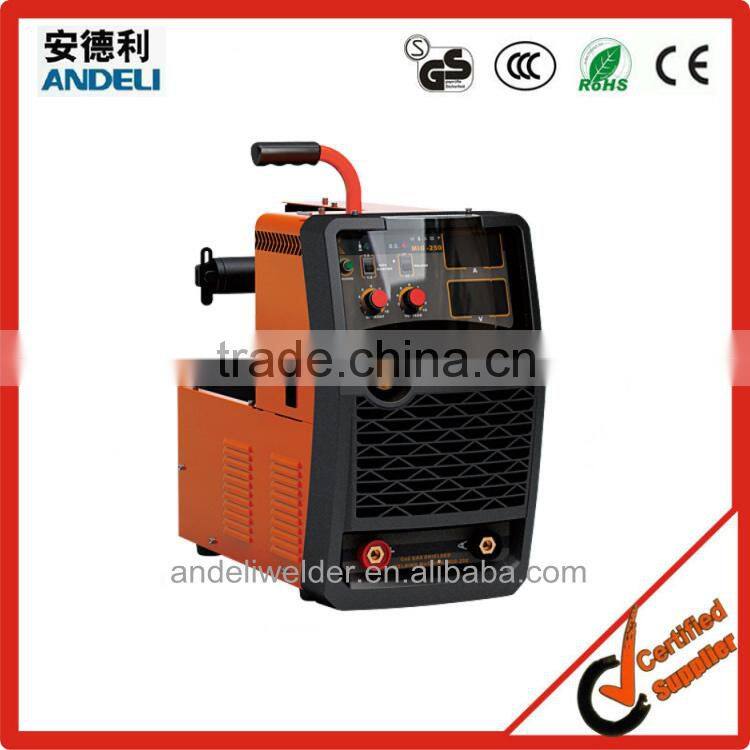

Inverter CO2 Gas Shielded Welding Machine
Model	MIG-200Y	MIG-250Y
Type	MOSFET
Rated input voltage (V)	single phase AC220 ±15%	three phase AC380 ±15%
Rated frequency (Hz)	50/60
Rated input current (A)	23.5	10.5
Output current (A)	180	220
Output voltage (V)	23	25
Duty cycle (%)	60	60
Efficiency (%)	85	85
Power factor	0.93	0.93
Diameter of wire (mm)	0.8	1.0
Type of wire feeder	built-in	built-in
Net weight of machine(KG)	33.7	35.2
Gross weight of machine packing(KG)	40	41.3
Gross weight of accessories packing (KG)	—	—
Dimension of machine (mm)	630×315×695	630×315×695
Dimension of packing- machine (mm)	660×370×750	660×370×750
Dimension of packing-wire feeder (mm)	—	—
including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, MIG torch×1pcs,
additional accessories for MIG-200F/MIG-250F: double drive wire feeder×1pcs, control cable×5meters

MIG CO2 Gas Shielded Welding Machine
Model	MIG-350	MIG-500	MIG-630
Type	IGBT Module
Function	MIG
Rated input voltage (V)	three phase AC380 ±15%
Rated frequency (Hz)	50/60
Rated input power (KVA)	14	25	35
Rated input current (A)	21	38	53
Input protection circuit breaker (A)	40	63	100
Rated working voltage (V)	34	40	45
Output current (A)	60-350	60-500	60-630
Output voltage (V)	15-40	15-50	15-50
Diameter of input power cable (mm3)	≥3×4	90%	≥3×6
Welding cable (mm2)	≥35	≥50	≥70
Diameter of welding wire (mm3)	0.8/1.0/1.2	1.0/1.2/1.6	1.0/1.2/1.6
No-load voltage (V)	50	75	95
No-load loss (W)	100	150	150
Rated duty cycle (%)	80	80	80
Efficiency (%)	85	85	85
Power factor	0.93	0.93	0.93
Wire feeder	separated
Net weight (KG)	40.5	50.3	60.7
Gross weight (KG)	45.5	55.8	73
Housing of machine	iron	iron	iron
Dimension of machine (mm)	645×335×576		700×360×638
Packing	carton/carton		wooden box/carton
Dimension of packing (mm)	machine: 700×390×660 wire feeder: 555×435×410		machine: 760×480×710 wire feeder: 555×435×410

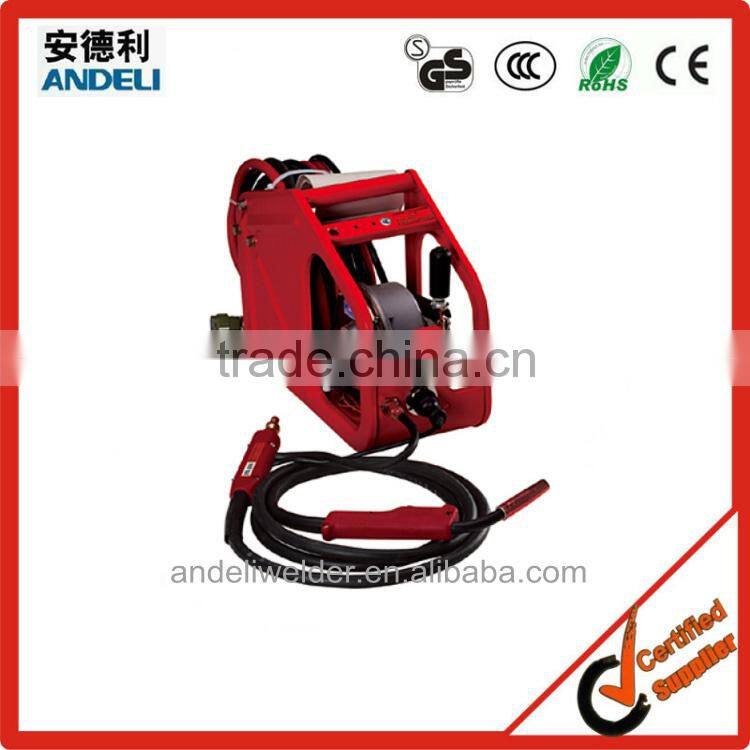

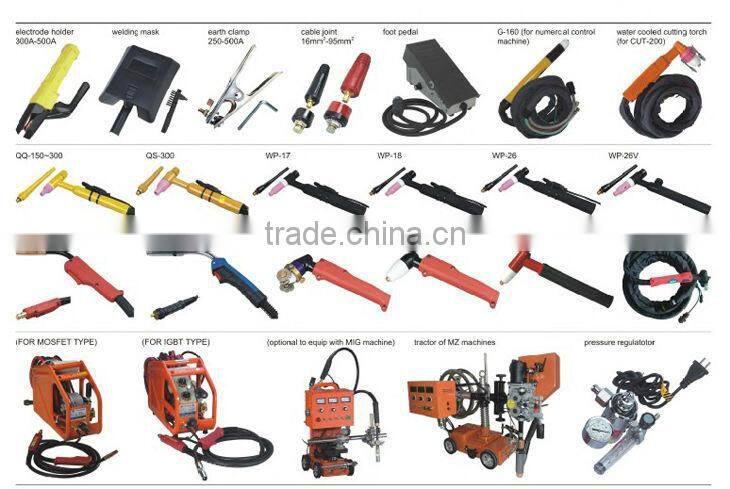

including accessories: earth clamp×1pcs, cable joint×2pcs, gas regulator×1pcs, double drive wire feeder×1pcs, grounding cable×3meters, control line×5meters, MIG torch×1pcs.Please check picture below.
additional accessories for NB-350S/500S/630S: cable joint×1pcs, inner hexagon spanner×1pcs
