AI-700 Indicating / Alarming Instrument for pressure
AI-700 High performance tank water level indicator
Suitable for measuring and displaying temperature, pressure, flow, level, humidity etc with measurement accuracy of 0.2% full scale.
Main features:
High measurement accuracy: 0.2%FS ±1°C
Programmable and modular input
Dual display windows, easy to set parameters and alarms points.
Universal input power- 85~264VAC, or 11~26VAC/VDC
Alarms can be outputted to different relays or share one.
RS485 communication interface
Retransmission function
CE, RoHS, ISO9001 approved
AI-700 single channel Intelligent Digital Temperature displayer temperature indicator Technical Specification:
Control mode |
On-off control mode |
|
Measurement accuracy |
0.2%FS ±1°C |
Resolution |
0.1°C or 1 °C |
Input |
Thermocouple: K, S, R, T, E, J, N, WRe3~WRe25, WRe5~WRe26 |
RTD: Pt100, Cu50 | |
Linear voltage:0~1V, 0~5V,1~5V,0~100mv,0~20mv, 0~60mV | |
Linear Current: 0~20mA, 4~20mA | |
Linear resistor: 0~80ohm, 0~400ohm | |
-9990~3000 defined by user | |
Input range |
K(-100~1300°C),S(0~1700°C),R(0~1600°C),T(-200~390°C),E(0~800°C), J(0~1000°C),B(600~1800°C),Cu50(-50~150°C),PT100(-200~800°C) |
|
Output (modularized) |
Relay Alarm output (NO+NC): 250VAC/2A or 30VDC/1A |
Linear current : can transmitter process value | |
General specifications |
Voltage: support AC85-265V, 50/60Hz or DC24V. |
Power consumption: ≤5W | |
|
Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5. | |
Operating Ambient : temperature -10~60°C; humidity ≤90%RH |

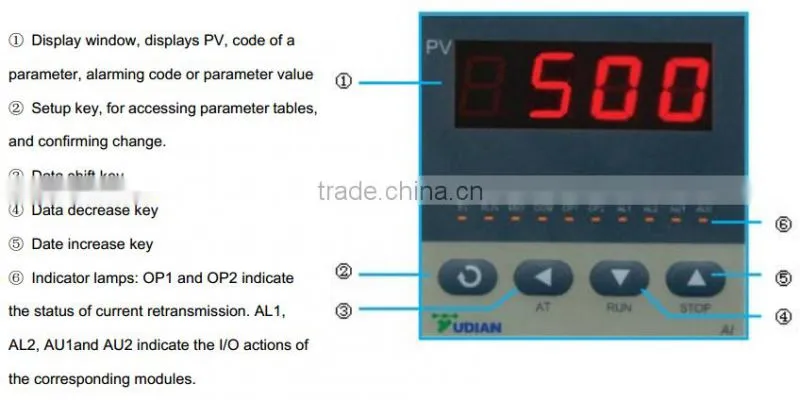

Front panel and Operation:

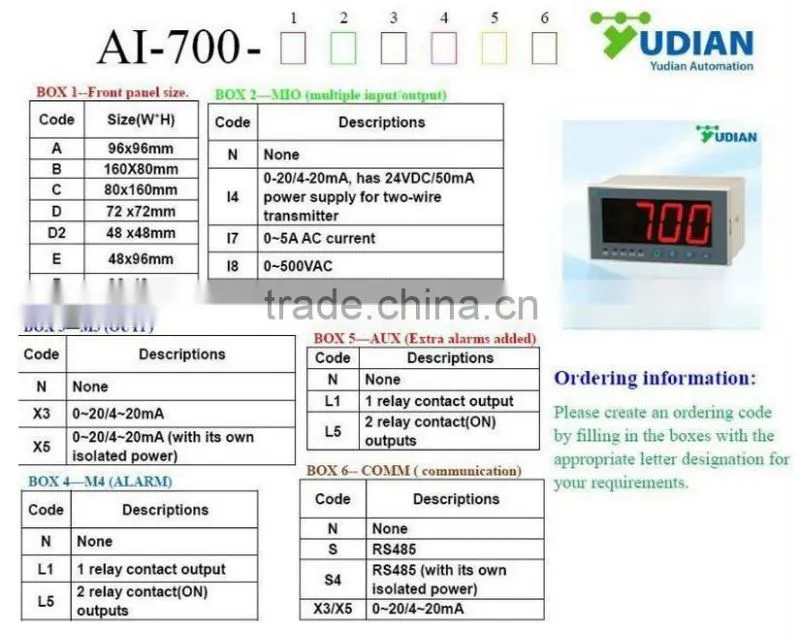

Yudian AI-700 PID temperature controller model code:

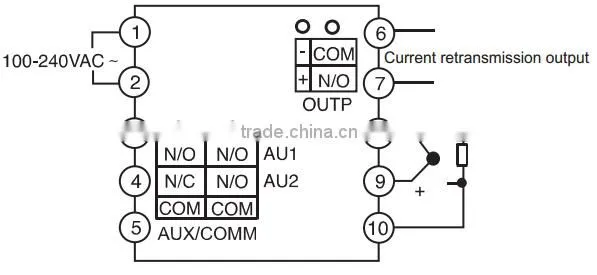

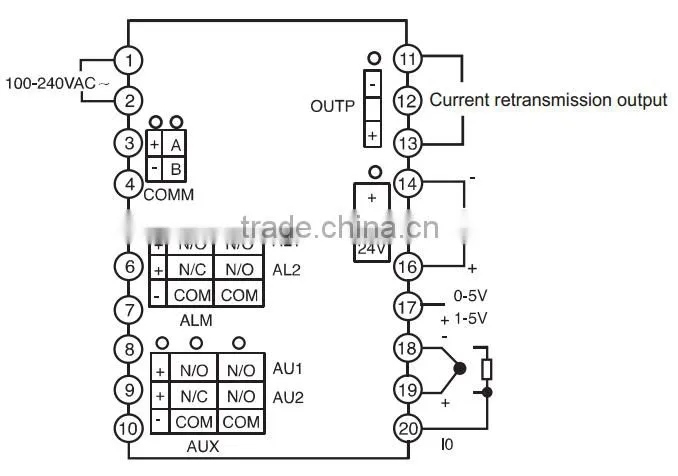

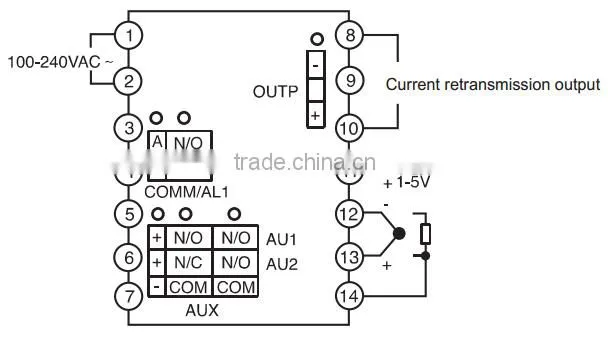

Yudian AI-700 PID temperature controller Installation and wiring:
1)Factory with 25 years experience.
2)Quick delivery ( within 3~5 working days).
3)Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4)We provide after sales service and technical assistance as per the customers requirement and needs.
1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of the controller?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
