Specifications
ac dc inverter tig mma pulse aluminum welding machine1.Memorize and store 10 group welding parameter.
2.real current:5-315A
Product Name: IGBT inverter module type professional aluminium welding machine ac dc pulse tig welding machine TIG-315PAC/DC tig ac dc welder
1.Product Features:
1. IGBT high frequency soft switch transform, high effiiency and reliability
2. MCU control technology, multi-function in one machine, convenient to use

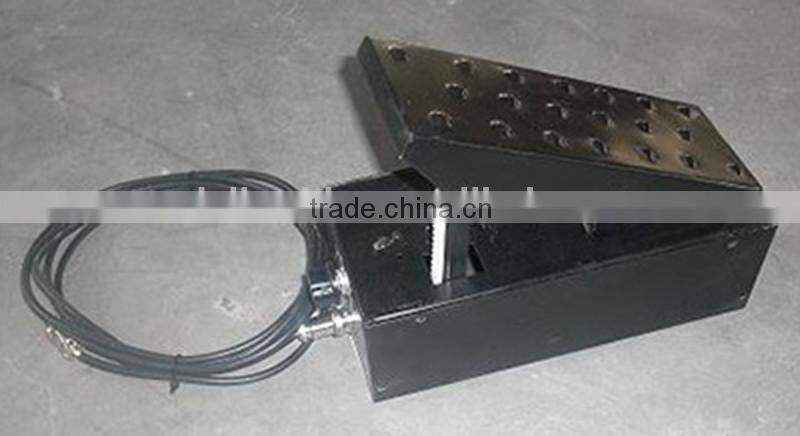

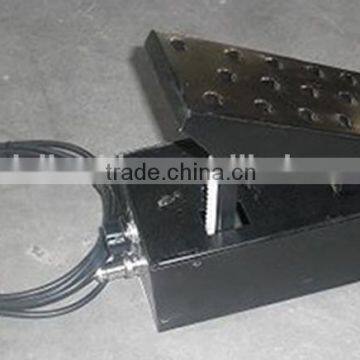

3. foot pedal to control current is optional
4. passive power factor crrection makes power factor higher
5. easy to arc starting, stable arc, high performance
6.accurate adjustable can achieve great penetration, aesthetic appearance of weld seam and low electrode consumption
2.Technical Details:
| Model | TIG-315PAC/DC | TIG-500AC/DC |
|---|---|---|
| Type | IGBT Module | |
| Rated input voltage (KVA) | three phase 380V±10% / 50Hz | |
| Rated input capacity (A) | 13 | 25.7 |
| Rated input current (A) | 20 | 39 |
| Constant current (A) | 50-315 | 20-500 |
| Peak current (A) | 5-315 | 20-500 |
| Welding current for MMA (A) | 20-315 | 20-500 |
| Drive current for MMA (A) | 10-200 | 10-200 |
| Base current (A) | 5-315 | 20-500 |
| Start arc current (A) | 20-160 | 50-160 |
| Crater arc current (A) | 5-315 | 20-500 |
| Duty ratio | 1-100% | 1-100% |
| AC bias ratio | -50%~+30% | -50%~+30% |
| Pulse frequency (Hz) | 0.2-20 | 0.2-20 |
| AC frequency (Hz) | 20-200 | 20-100 |
| Pre-flow time (s) | 0.1-15 | 0.1-15 |
| Gas delay time (s) | 0.1-15 | 0.1-15 |
| Current slow up time (s) | 0.1-10 | 0.1-10 |
| Current decay time (s) | 0.1-15 | 0.1-15 |
| Cleaning ratio | -40%~+40% | -40%~+40% |
| Rated duty cycle | 60% | 60% |
| No-load voltage (V) | 74 | 79 |
| Efficiency | 79% | 77% |
| Power factor | 0.95 | 0.95 |
| Net weight (KG) | 47.2 | 75 |
| Insulation of main transformer | H | H |
| Insulation of output reactor | B | B |

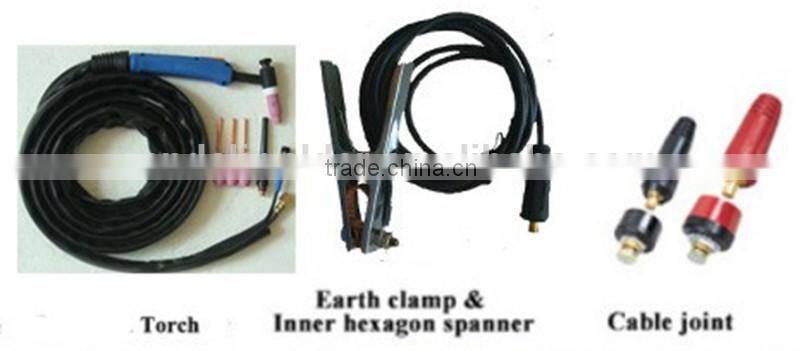

Including accessories: earth clamp×1pcs, cable joint×2pcs, grounding cable×3meters, air cooled QQ300 TIG torch (water cooled QS300 is optional)×1set
Note: the rated AC is defined in the condition of 50Hz.
* two options: iron panel and plastic panel
3.Product Show:
plastic housing below---
4.Packaging & Shipping:
5.Our Services:
We devote ourselves to offering humanized serving for each customer! No matter the business is big or small, we are always doing our best to offer our best services to our customers, and developing together.
1. Two year; we will provide free parts for repair and accord freight,
and guide for maintenance within a year.
2. strict quality control inspection before shipment
3. OEM design & OEM packing welcome
4. Top production ability
5. Top 5 Global E-business Company of Alibaba
6. Service online,reply to you within 6 hours
6. Compare with Our Competitors:
7.Company Information:
| Why choose us--- |
1. 29 years - Andeli Group Co.,Ltd is founded in 1985. 8. ANDELI Welders are selling NO.1 on (chinese biggest B2C website) |
About our workshop---
About our factory---
8.FAQ
1.Q:This kind of TIG-315ACDC just have IGBT Module type?
A:It also have Mosfet type, if you want more about it, please send me an inquiry.
2.Q:Can you give me the best price?
A:Please tell me your purchasing quantity, then the best price will be sent to you soon.
3.Q:Can you tell me the thickness and welding rod Dia.of TIG-315PACDC?
A:The thickness is 1.5-5mm and the welding rod Dia. is 2.5/3.2.
If TIG-315PACDC can not meet your welding thickness demand, please contact me.I will recommand appropriate one to you.
4.Q:Can I to be your agency in my country?
A:Please contact me to get more details.
5.Q:When I can get your feedback?
A:You reply will be given to you within 24 hours on the workdays.
6.Q:Can I get one sample to test?
A:Yes,and I will provide you best international ezpress fee, so that you can compare with your local eapress fee to save money.
