Korean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium Tig Welder Electronic Welder Manufacturer

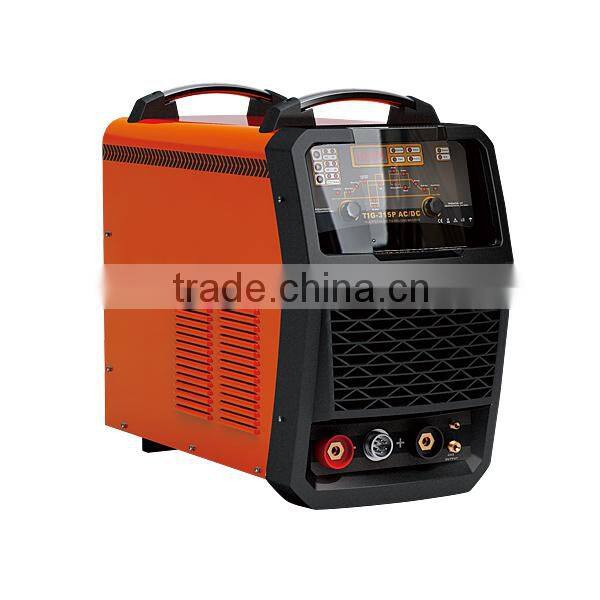

Korean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium Tig Welder Electronic Welder Manufacturer photo-1
US$ 612 - 641 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
ANDELI Or OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name ANDELI Or OEM
Model Number TIG-315AC/DC
Arc Current 10-280A
Pulse Frequency 50/60HZ
Pilot Arc Current 11.4A
Rated Duty Cycle 60%
Motor Type Other, AC/DC Motor
Dimensions 640x400x510MM
Usage Welds stainless steel, carbon steel, copper, aluminums and titaniums
Voltage three phase 380V±15%
Certification CE
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

electronic welder
1.Digital IGBT Inverter AC/DC Pulse TIG/MMA welder:
2.Memorize and store 10 group welding parameters

Korean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium tig welder electronic welder manufacturer





Korean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium tig welder electronic welder manufacturer







Why choose us?





1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……





Product Description



Korean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium tig welder electronic welder manufacturer



Korean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium tig welder electronic welder manufacturer





Application:



1. IGBT high frequency soft switch transform,high effciency and reliability



2. MCU controlled technology,multi-function in one machine,convenient to use



3. Foot pedal to control current is optional



4. Passive power factor correction makes power factor higher



5. Easy to arc starting,stable arc,high performance



6. Accurate adjustment can achieve great penetration,aesthetic apperance of weling seam and low electrode consumption





Specification data:



Inverter TIG-AC/DC Square Wave Welding Machine
ModelTIG-315AC/DCTIG-500AC/DC
TypeIGBT Module
Rated input voltagethree phase 380V±10% / 50Hz
Rated input capacity13KVA25.7KVA
Rated input current20A39A
Constant current5-315A20-500A
Peak current5-315A20-500A
Welding current for MMA20-315A20-500A
Drive current for MMA10-200A
Base current5-315A20-500A
Start arc current20-160A
Crater arc current5-315A20-500A
Duty ratio1-100%
AC bias ratio-50%~+30%
Pulse frequency0.2-20Hz
AC frequency20-200Hz20-100Hz
Pre-flow time0.1-15s
Gas delay time0.1-15s
Current slow up time0.1-10s
Current decay time0.1-15s
Cleaning ratio-40%~+40%
Rated duty cycle60%60%
No-load voltage74V79V
Efficiency79%77%
Power factor0.95
Net weight47.2KG75KG
Insulation of main transformerH
Insulation of output reactorB
Note: the rated AC is defined in the condition of 50Hz.
including accessories: earth clamp×1pcs, cable joint×2pcs, grounding cable×3meters, TIG torch (air cooled QQ300)×1pcs





Our Competive:

Korean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium tig welder electronic welder manufacturerKorean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium tig welder electronic welder manufacturerKorean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium tig welder electronic welder manufacturerKorean Fashion Digital IGBT Inverter AC/DC Pulse Aluminium tig welder electronic welder manufacturer

Accessories:





* BUY WITH CONFIDENCE.

* QUALITY MACHINES MANUFACTURED BY ANDELI.

* FULL SERVICE AND PARTS BACK UP.

* 24 MONTHS WARRANTY.



The data in the above table is only for reference. Please subject to the nameplate on the device.We do producing many different other series welding machines,if you feel interests,please send us an inquiry!
