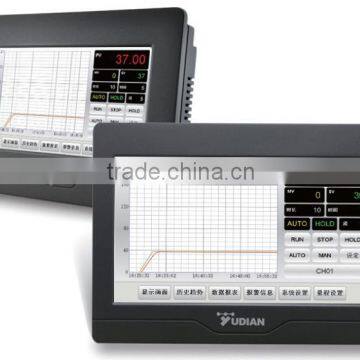

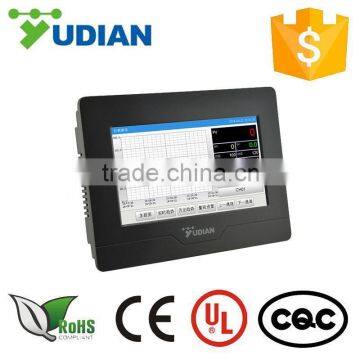

Pressure Data Logger Voltage Data Logger AI-3702M
Technical Specifications for Pressure Data Logger Voltage Data Logger AI-3702M
1. Display
Color: TFT true color
Resolution (W*H): 800*480 pixels
Backlight: Long- lifespan LED Operation method: Touch Screen
2. Memory
Usable memory for application data: 150 MB
Recording interval: interval with unit one second (1, 2, 3 or 4 etc)
3. Communication
Interface type: RS232, RS485, Ethernet interface (10 / 100M adaptive Ethernet nterface)
Baud rate: 1200-19200 bps
4. General Parameters
Electromagnetic compatibility (EMC):
±4KV/5KHz according to IEC61000-4-4;
4KV according to IEC61000-4-5.
Isolation withstanding voltage: Between power, relay contact or signal terminals ≥ 2300VDC; between isolated Electroweak signal terminals ≥ 600VDC Power supply: 100~240VAC,-15%~ +10%, 50-60Hz
Power consumption: ≤ 5W
Operating ambience: Temperature: -10℃ ~ + 60℃; Humidity: ≤ 90%RH Storage temperature: -20℃~ +80℃
Net weight: 0.7kg Cooling: Natural
Hook Installation Diagram for Pressure Data Logger Voltage Data Logger AI-3702M
Dimensions Drawing
Input and Output Wiring
You will get:
- A piece of Yudian instrument;
- A paper of user manual;
- Three/ Five/ Ten years warranty card and Quality Approval card;
- A lable of units;
- A pair of installaton brackets;
- Nice package carton box with Yudian logo.
- Factory with 26 years experience.
- Three to ten years warranty time.
- Quick delivery ( within 3 working days).
- Retail/ Wholesale/ OEM/ ODM available.
- Better price for bulk order.
- We provide after sales service and technical assistance as customers requirement and needs.
If you are interested in our products or have any questions, please do not hesitate to contact us.
