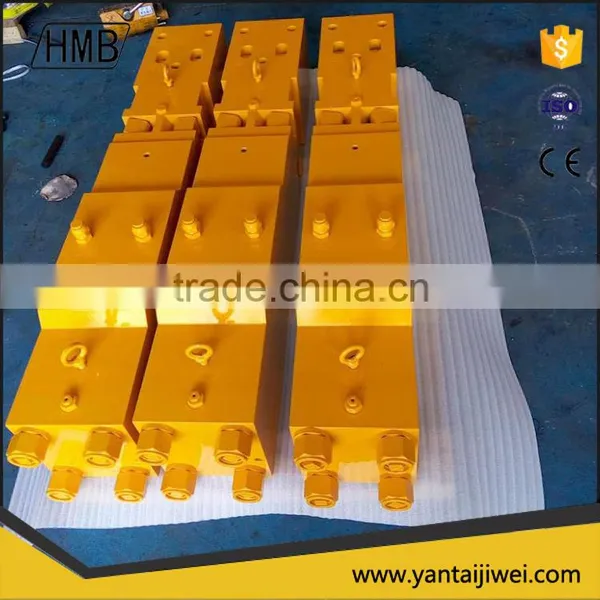

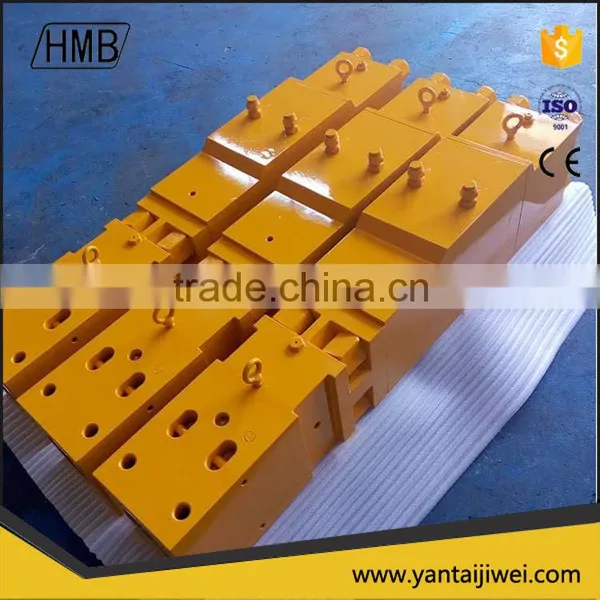

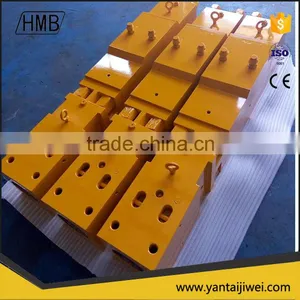

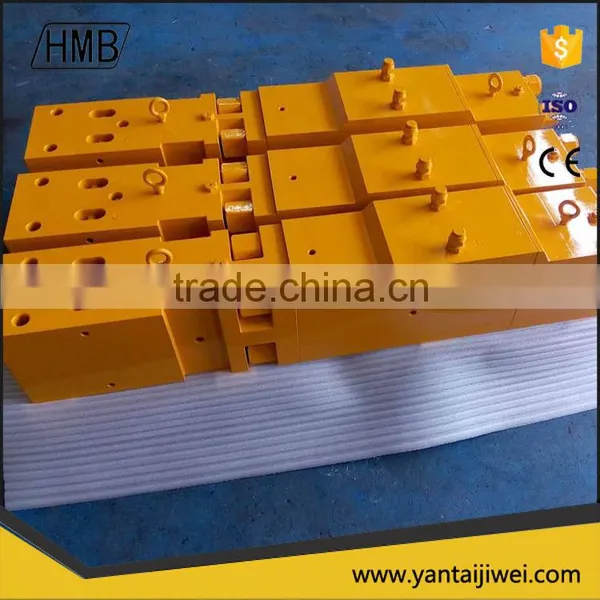

Original Fine Hydraulic breaker /construction mining excavator hydraulic hammer
PART 1: PRODUCT INFORMATION
| Model | HMB680 | HMB750 | HMB850 | HMB1000 | |
| Weight | kg | 250 | 375 | 510 | 840 |
| Length | mm | 1347 | 1719 | 1737 | 1900 |
| Working Flow Rate | 1iter /min | 36-65 | 50-90 | 45-85 | 80-120 |
| Oil Relief Pressure | kg/cm2 | 170 | 170 | 190 | 190 |
| Working Pressure | kg/cm2 | 110-140 | 120-170 | 127-147 | 150-170 |
| Striking Frequency | bpm | 500-900 | 400-800 | 400-800 | 400-650 |
| Chisel Diameter | mm | ¢68 | ¢75 | ¢85 | ¢100 |
| Oil Pipe Nominal Diameter | inch | 1/2 | 1/2 | 1/2 | 3/4 |
| Pressure of Back Shell | kg/cm2 | 16 | 16±0.5 | 16±0.5 | 16±0.5 |
| Accumulator Pressure | kg/cm2 | / | / | / | / |
| Applicable Excavator Weight | ton | 3.0-7.0 | 6-9 | 7-14 | 10-15 |
| Applicable Excavator Bucket Capacity | m3 | 0.15-0.25 | 0.2-0.4 | 0.4-0.6 | 0.5-0.6 |
| Model | HMB1350 | HMB1400 | HMB1500 | HMB1550 | HMB1650 | |
| Weight | kg | 1510 | 1800 | 2420 | 2650 | 2990 |
| Length | mm | 2300 | 2420 | 2500 | 2620 | 3015 |
| Working Flow Rate | 1iter /min | 130-170 | 150-190 | 150-210 | 150-230 | 200-260 |
| Oil Relief Pressure | kg/cm2 | 210 | 210 | 230 | 230 | 240 |
| Working Pressure | kg/cm2 | 160-185 | 160-185 | 160-180 | 170-200 | 180-200 |
| Striking Frequency | bpm | 400-650 | 400-800 | 350-700 | 400-800 | 250-400 |
| Chisel Diameter | mm | ¢135 | ¢140 | ¢150 | ¢155 | ¢165 |
| Oil Pipe Nominal Diameter | inch | 1 | 1 | 1 | 1 | 1¼ |
| Pressure of Back Shell | kg/cm2 | 6±0.5 | 16±0.5 | 6±0.5 | 6±0.5 | 6±0.5 |
| Accumulator Pressure | kg/cm2 | 60 | 60 | 60 | 60 | 60 |
| Applicable Excavator Weight | ton | 18-25 | 20-30 | 25-30 | 27-36 | 30-45 |
| Applicable Excavator Bucket Capacity | m3 | 0.6-1.0 | 0.9-1.2 | 0.9-1.2 | 1.0-1.4 | 1.6-2.2 |
What is your Products Specifications?

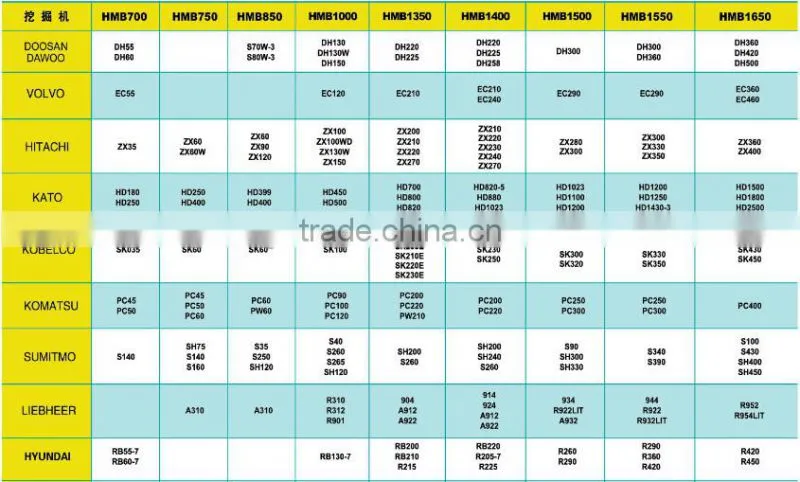

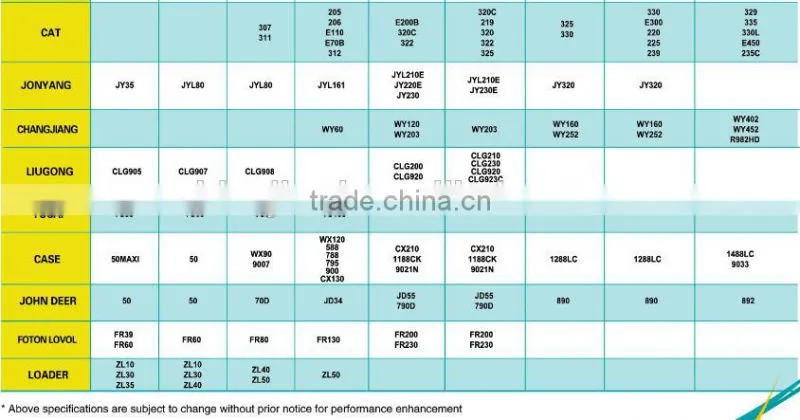

What excavators can be suitable for?

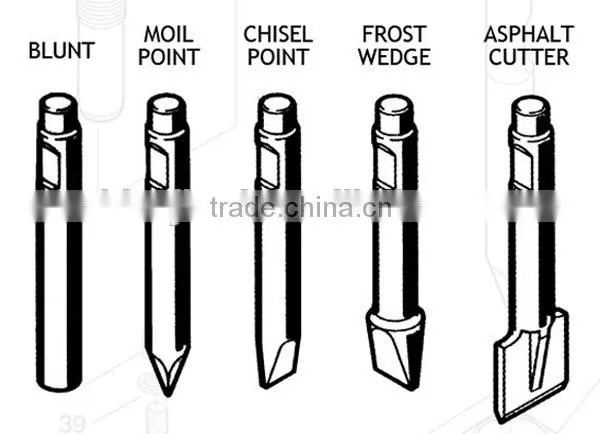

Which Chisel can you supply?

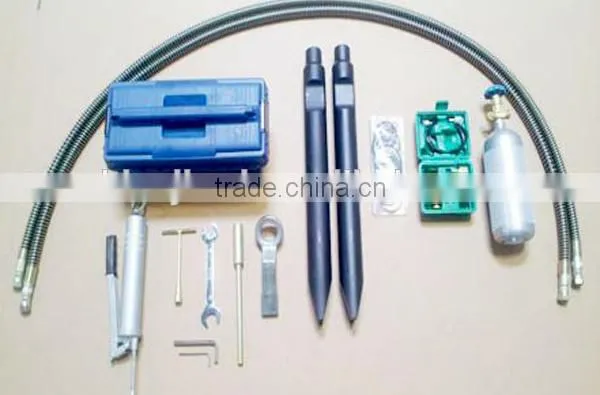

What are the Accessories?

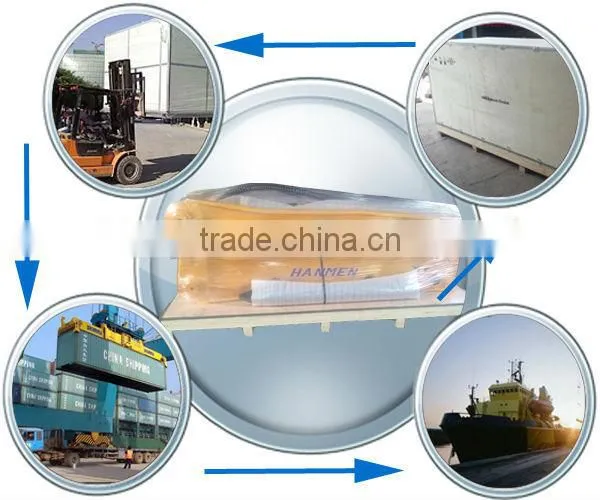

What is your export package?
Our service:
1)7Days *24Hours hot line and email service
2)Your inquiry related to our products or prices will be replied in 24 hours
3)Well-Retrained and experience staffs to answer all your questions
4)OEM and ODM is available.
5)How to buy:
a. Let me know your excavator model
b. Let me know the operation weigh of your excavator
c. Let me know your ordering quantity
d. Let me know your destination port
https://youtu.be/mFdNLHgOmK0
https://youtu.be/puZzLJStH1E
https://youtu.be/586go4OY1yM

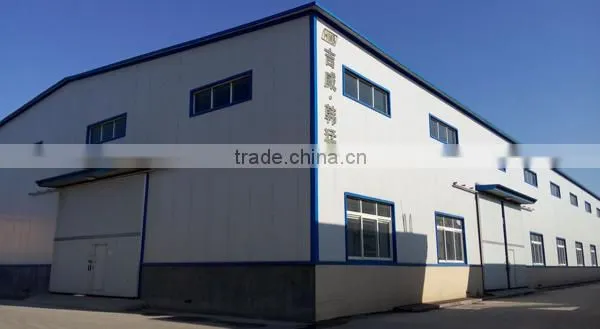

The story of our Company:
Yantai Jiwei Construction Machinery Equipment Co., Ltd was established in 2009.
We registered HMB Brand in 2011.
We start to develop oversea market in 2013.

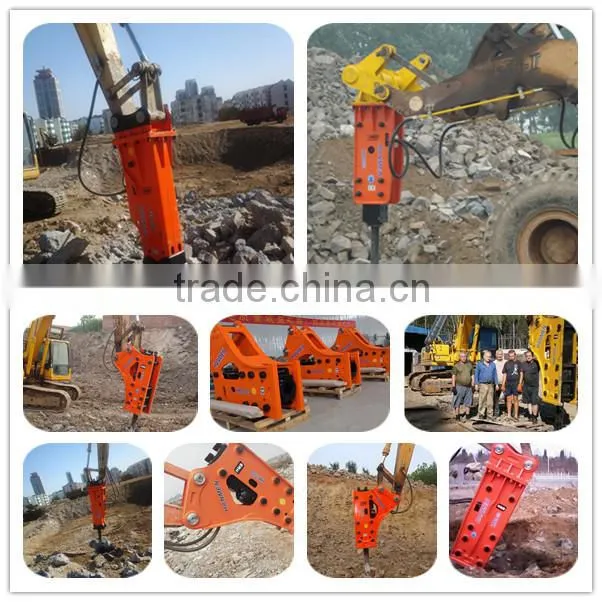

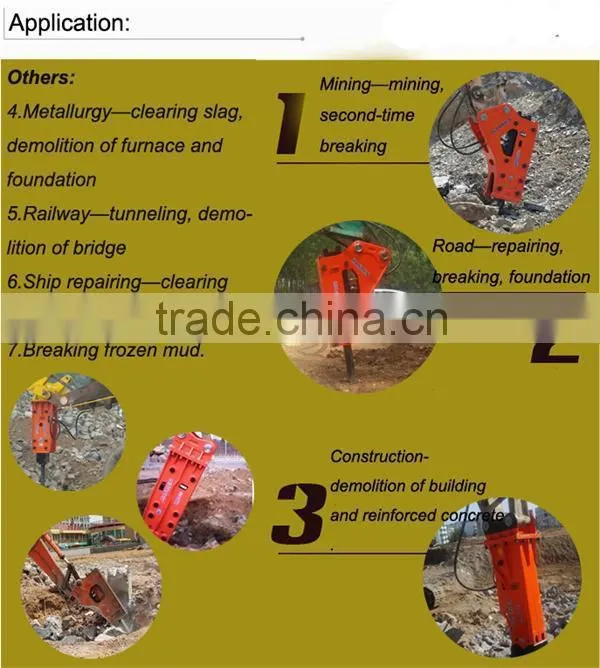

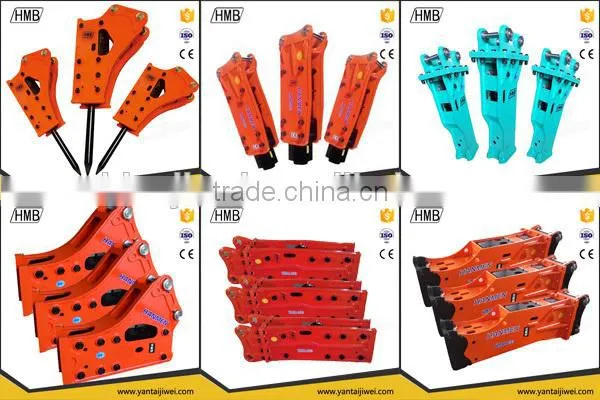

We mainly manufacture hydraulic breaker and earth augers. Hydraulic breakers are widely used in rock breaking, road and mining industries in China. HMB hydraulic breakers are divided into 3 types, including Top type hydraulic hammer, Box-silenced type and Side type. Among, Top type and Box silenced type are very popular in Oversea market.
And they are applicable to many types of excavators, for instance, DOOSAN, VOLVO, HITACHI, KATO, KOBELCO, KOMATSU, SUMITOMO,LIEBHEER, HYUNDAI, CAT, JONYANG, CHANGJIANG, LISHIDE, SANY, JCB etc.
we are also ready to accept all kinds of OEM and ODM orders from home and abroad.
FAQ:
1.What color can you produce ?
Red.If you need special, please advise.
2.How about the delivery time ?
Within 7-10 working days after receiving T/T payment.
3.What’s the MOQ and payment ?
MOQ is 1 set.
T/T, L/C, Escrow, west union is accepted. and other terms can also be negotiated.
4.Are you a manufacture?
Yes, our factory was established in 2009.
5.Can you produce according to customers’ design?
Sure,we are professional manufacturer,OEM is available.
6.Which country have you exported?
Canada, Australia, Peru, Egypt, Brazil, Mexico, Iran, South Africa,etc.
7: Are you sure that your product will fit my excavator?
Our breakers can be adapted to different excavators. Show me your model number, and we can give you best solution.
8.How about the package?
Standard export package, plywood cases, or as customers' demands.
HOW TO CONTACT US?
Send you inquiry details, click "Send" Now....
Together, We will make better!
Maggie Liu
Yantai Jiwei Construction Machinery Equipment Co.,Ltd.
Mob: +86186 6052 9952 (Whats App)
Tel: +86 535 6833927
WeChat: mm18660529952
Skype: Maggie521125
