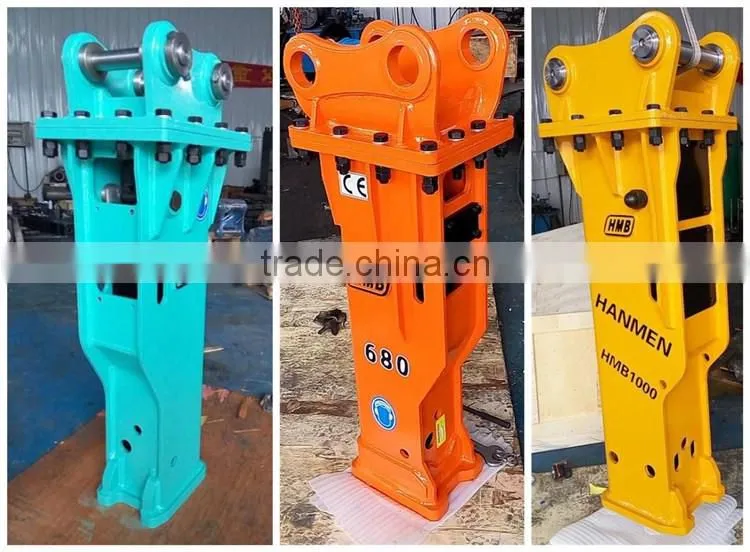

Hydraulic Rock Breakers Chisel power Tool bush hammer tool
Hydraulic Rock Breakers Chisel power Tool bush hammer tool

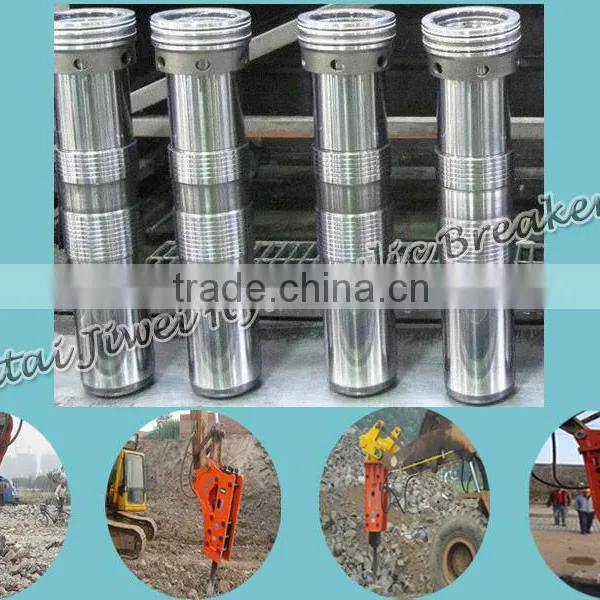

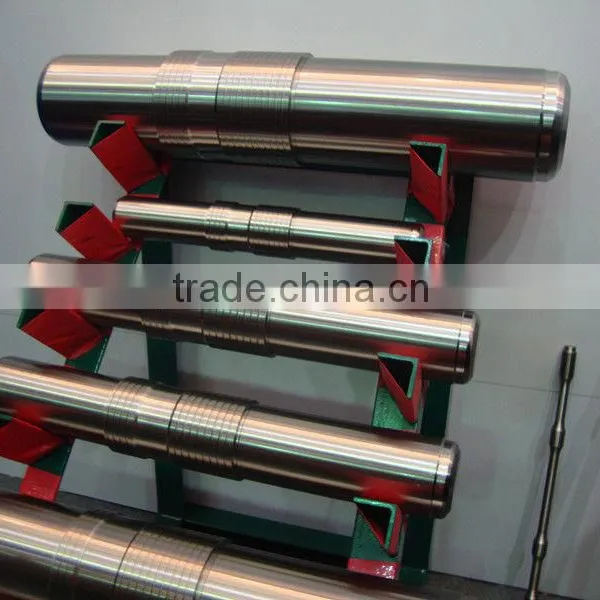

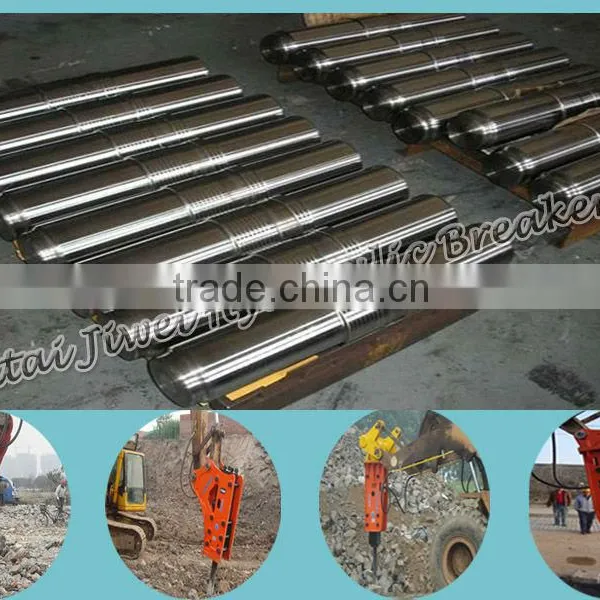

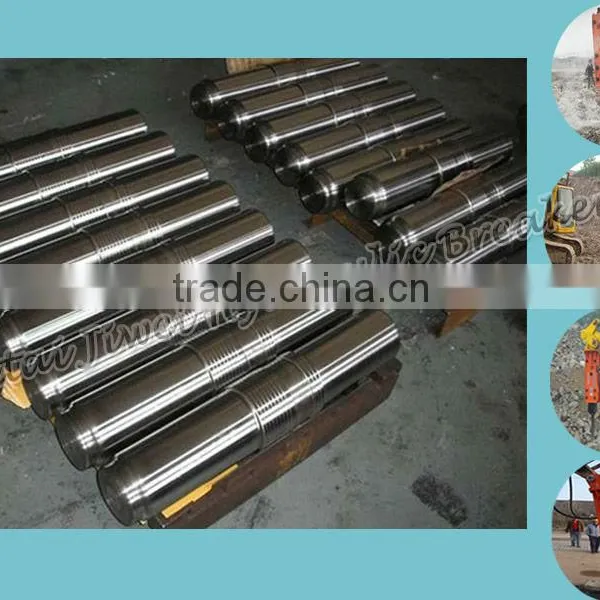

We do wholesale a full range of spare parts in large quantity like Chisels(Moil point, Flat wedge ,Flat end, Conical Type), Piston, Thrust Bush, Thrust Ring, Tool bush, Through bolt, Through bolt nut, Through bolt washer, Tool pin, Stop pin, Tool bush pin, Snap ring, Rubber, Side Bolt, Side bolt nut, Side bolt washer, Seal kits, Diaphragms, Accumulator ass’y and Valve ass’y as well as back head and front head, cylinder, main body assembly etc.
Excavator Parts Hydraulic Breaker Chisel Advantages
1. Adopt Forged 42 CrMo steel from world famous steel works, Higer density
2. All machines are controlled by computer to ensure its accuracy
3. Full controlled Capacity for whole process of heat treatment
4. Special process to ensure the hardness of the whole chisel, which is well proportioned. (Integral quenching, segmented tempering)
5. All the process was monitored and recorded by instrument ,which kept for at least 3 years
6. Every chisel has to pass the hardness test before next stage.
7. Generally paint spraying two or three layers ,while Many small companies just ignor this process directly or just spray one layer.
8. ISO 9001 Certified

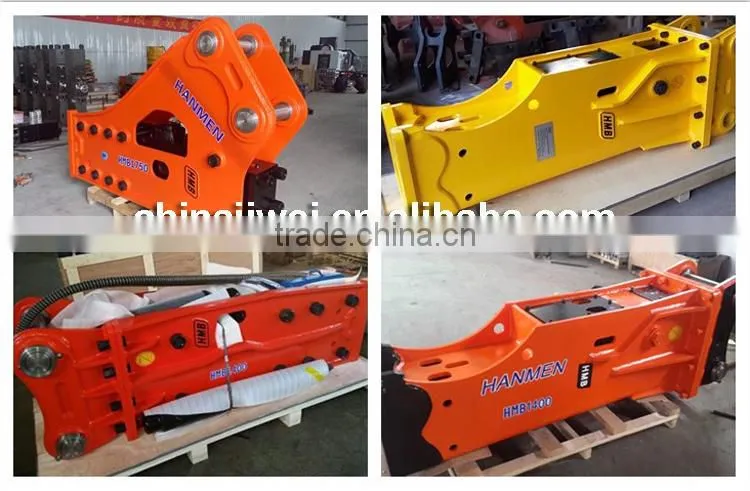

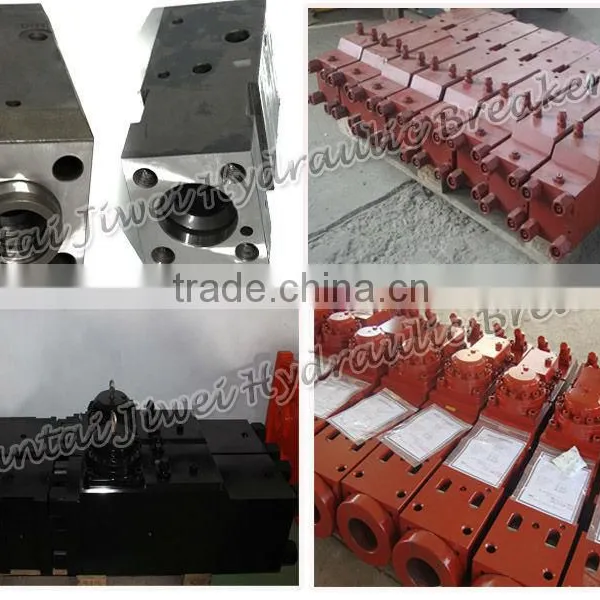

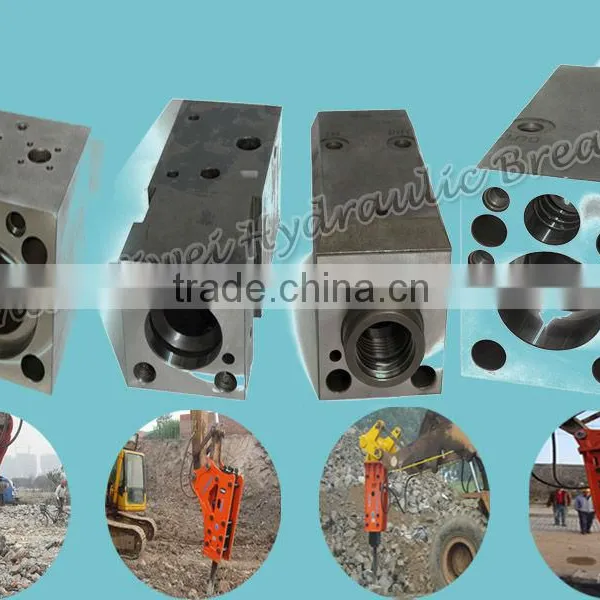

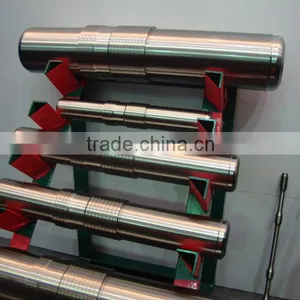

We are manufacturer of hydraulic breakers/hammers and replacement spare parts for hydraulic breakers of Soosan,Hanwoo,NPK,Toyo,Furukawa,montabert,rammer,atlas copco,MSB etc., The hydraulic breaker parts we have are: front head, back head,cylinder,chisel tool, seal kits ,piston, diaphragm, thrust bush,ring bush,front cover ,rod pin/chisel pin,stop pin,accumulator, through bolt,side bolt , bracket, upper cushion,lower cushion,damper ect.
We have 8 years experience in producing hydraulic hammer and spare parts ,we can also make and install excavator hydraulic kits/hammer lines/piping kits/hydraulic installation kits/breaker lines for hydraulic hammer,hydraulic shear,hydraulic crusher,quick coupler,demolition grab,power rammer etc.We can also supply other excavator parts.
We can produce more than 1000 types of chisels for hydraulc breakers for most world famous hydraulic breakers,tool diameter vary from 40mm to 200mm. the following are part of the models that we can produce hydraulic hammer chisel tools for:
5. Advanced Breaking Technology
6. Powerful Hydraulic System Increased the Impact of Nitrogen
Specifications:
| Model | Unit | HMB450 | HMB530 | HMB680 | HMB750 | HMB850 | HMB1000 | HMB1350 | HMB1400 | HMB1550 | HMB1650 |
| Weight | kg | 120 | 190 | 300 | 375 | 510 | 840 | 1510 | 2029 | 2900 | 3500 |
| Length | mm | 1000 | 1100 | 1300 | 1719 | 1737 | 1900 | 2300 | 2420 | 2620 | 3015 |
| Working Flow Rate | liter/min | 25-50 | 25-60 | 26-60 | 50-90 | 45-85 | 80-120 | 130-170 | 150-190 | 150-230 | 200-260 |
| Oil Relief Pressure | kg/cm2 | 160 | 170 | 170 | 170 | 190 | 190 | 210 | 210 | 230 | 240 |
| Working Pressure | kg/cm2 | 90-100 | 90-120 | 110-140 | 120-170 | 127-147 | 150-170 | 160-185 | 160-185 | 170-200 | 180-200 |
| Impact rate | bpm | 500-1000 | 500-1000 | 500-900 | 400-800 | 400-800 | 400-650 | 400-650 | 400-800 | 400-800 | 250-400 |
| Chisel Diameter | mm | 45 | 53 | 68 | 75 | 85 | 100 | 135 | 140 | 155 | 165 |
| Hose Diameter | inch | 1/2 | 1/2 | 1/2 | ‘1/2 | ’1/2 | ‘3/4 | 1 | 1 | 1 | 5/4 |
| Back head pressure | kg/cm2 | 16 | 16 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 |
| Accumulator Pressure | kg/cm2 | / | / | / | / | / | / | 60 | 60 | 60 | 60 |
| Suitable Carrier | ton | 1-1.5 | 2.5-4.5 | 4-7 | 6-9 | 7-14 | 10-15 | 18-25 | 20-30 | 27-36 | 30-45 |
1.What color can you produce ?
Red.If you need special, please advise.
2.How about the delivery time ?
Within 7-10 working days after receiving T/T payment.
3.What’s the MOQ and payment ?
MOQ is 1 set.
T/T, L/C, Escrow, west union is accepted. and other terms can also be negotiated.
4.Are you a manufacture?
Yes, our factory was established in 2009.
5.Can you produce according to customers’ design?
Sure,we are professional manufacturer,OEM is available.
6.Which country have you exported?
Canada, Australia, Peru, Egypt, Brazil, Mexico, Iran, South Africa,etc.

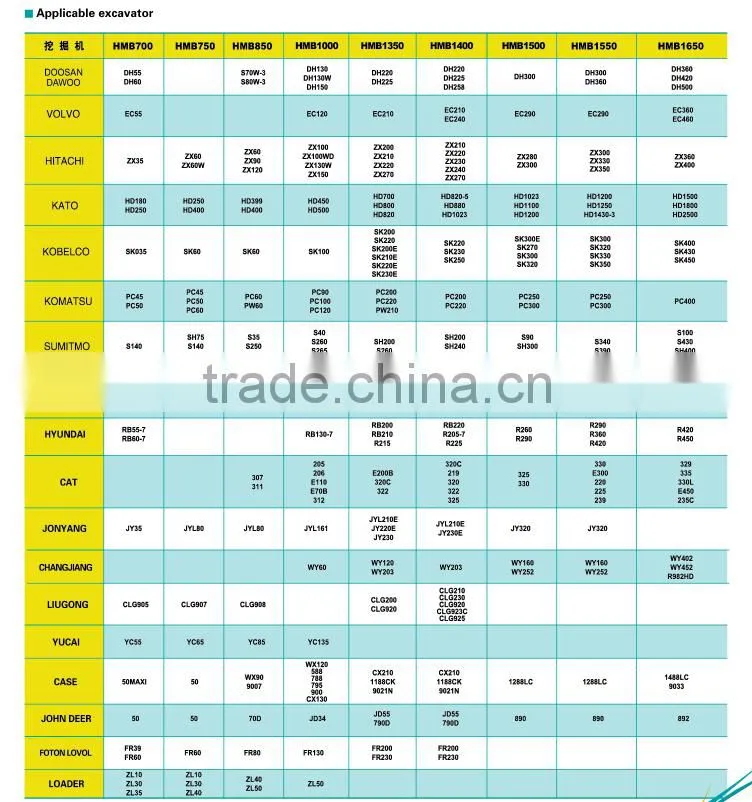

7.Are you sure that your product will fit my excavator?
Our breakers can be adapted to different excavators. Show me your model number, and we can give you best solution.
8.How about the package?
Standard wooden cases, or as customers' demands.
