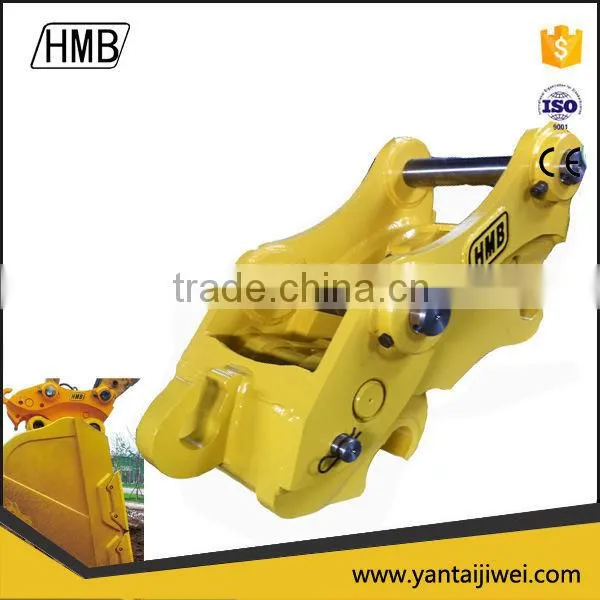

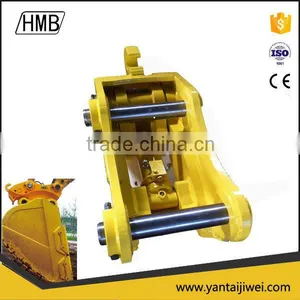

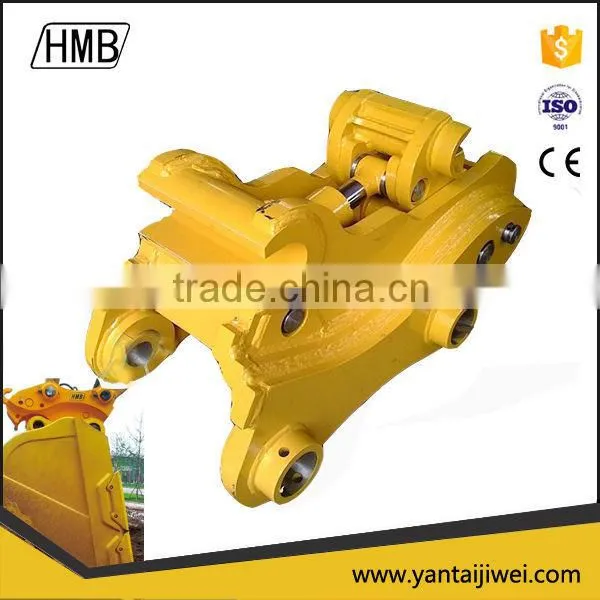

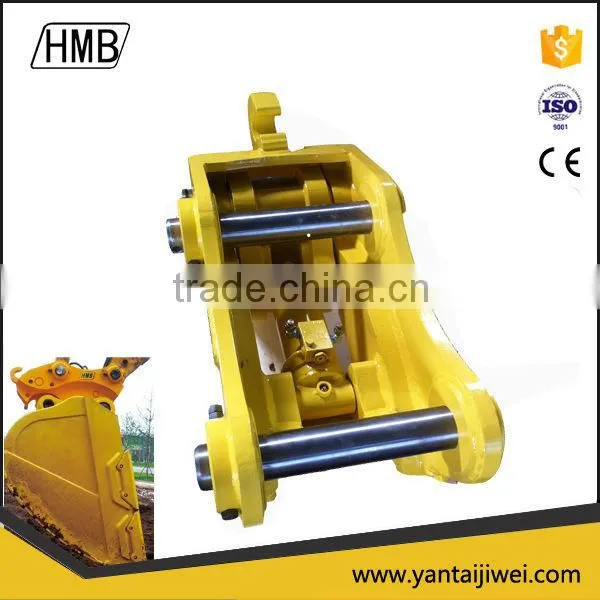

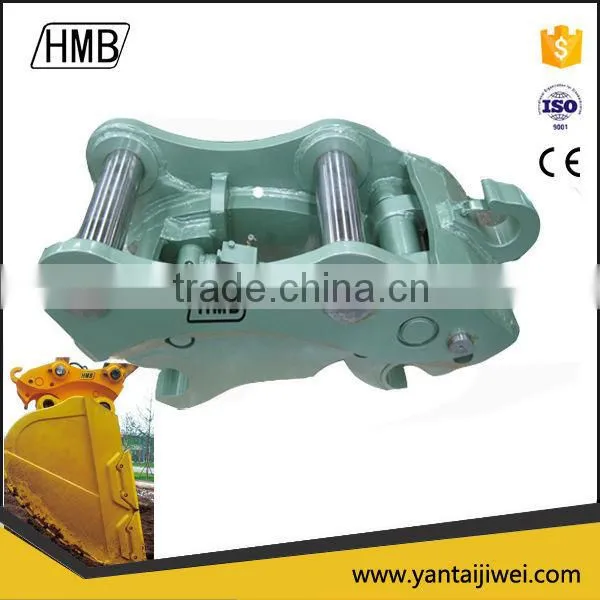

Quick coupler ,Excavator Bucket, bucket excavator attachment
Product Information:
Products model:
| MODEL | Unit | Mini | HMB02 | HMB04 | HMB06 | HMB08 | HMB08S | HMB10 | HMB17 |
| Operating Weight | Kg | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 |
| Overall Length(C) | mm | 300-450 | 520-542 | 581-610 | 760 | 920-955 | 950-1000 | 965-1100 | 1005-1150 |
| Overall Height(G) | mm | 225-270 | 312 | 318 | 400 | 512 | 512-540 | 585 | 560-615 |
| Overall Width(B) | mm | 150-250 | 260-266 | 265-283 | 351-454 | 450-483 | 445-493 | 543-572 | 602-666 |
| Forearm open Width(A) | mm | 82-180 | 155-172 | 180-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-480 |
| Retractable distance of oil cylinder (E) | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 560-650 |
| Pin Diameter | mm | 20-40 | 40-45 | 45-55 | 50-70 | 70-90 | 90 | 90-100 | 100-110 |
| Top to bottom pin distance (F) | mm | 170-190 | 200-210 | 205-220 | 240-255 | 300 | 320 | 350-370 | 370-380 |
| Pin to Pin Center Distance (D) | mm | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 520-630 |
| Working pressure | Kg/cm2 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
| Oil flow | l/min | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | 10-20 |
| Suitable excavator | ton | ‘1-4 | ’4-6 | ‘6-9 | ’10-16 | ‘18-25 | ’25-26 | ‘26-30 | 30-40 |
Details:
1). One Body Design
2). Versatility
3).Double Safety System
4).Competitive Price

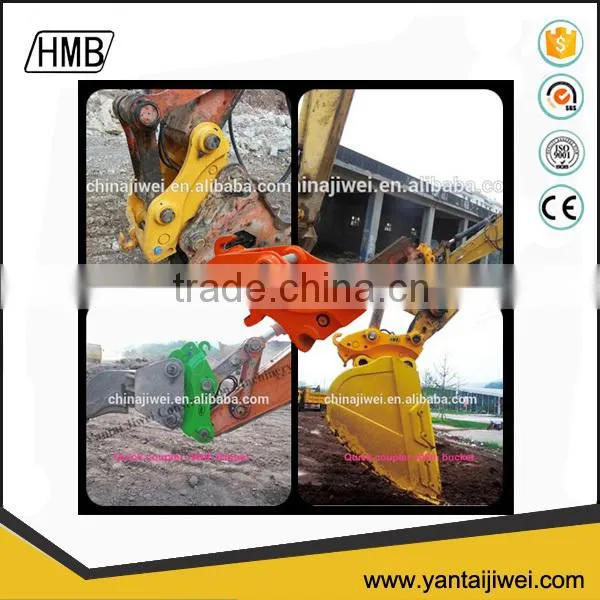

Application:
Our service:
1)7Days *24Hours hot line and email service
2)Your inquiry related to our products or prices will be replied in 24 hours
3)Well-Retrained and experience staffs to answer all your questions
4)OEM and ODM is available.
5)How to buy:
a. Let me know your excavator model
b. Let me know the operation weigh of your excavator
c. Let me know your ordering quantity
d. Let me know your destination port
6)Warranty: 1 year and For free techinical support all the time.
Company information:
Yantai Jiwei Construction Machinery Equipment Co., Ltdwas established in 2009. We are one of the leading manufacturer in China. We mainly manufacture hydraulic breaker, quick coupler and other attachments on excavators.
We registered HMB Brand in 2011. We are also ready to accept all kinds of OEM and ODM orders from home and abroad.
Any needs, please contact us. :-)
FAQ:
1.What color can you produce ?
Red.If you need special, please advise.
2.How about the delivery time ?
Within 7-10 working days after receiving T/T payment.
3.What’s the MOQ and payment ?
MOQ is 1 set.
T/T, L/C, Escrow, west union is accepted. and other terms can also be negotiated.
4.Are you a manufacture?
Yes, our factory was established in 2009.
5.Can you produce according to customers’ design?
Sure,we are professional manufacturer,OEM is available.
6.Which country have you exported?
Canada, Australia, Peru, Egypt, Brazil, Mexico, Iran, South Africa,etc.
7: Are you sure that your product will fit my excavator?
Our breakers can be adapted to different excavators. Show me your model number, and we can give you best solution.
8.How about the package?
Standard export package, plywood cases, or as customers' demands.
