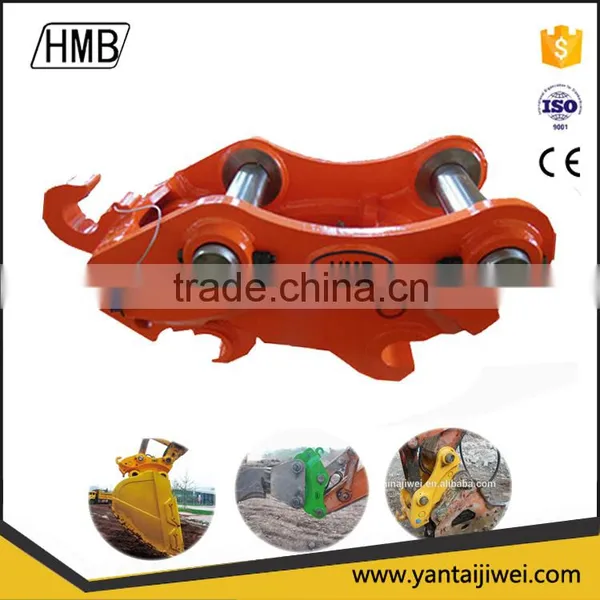

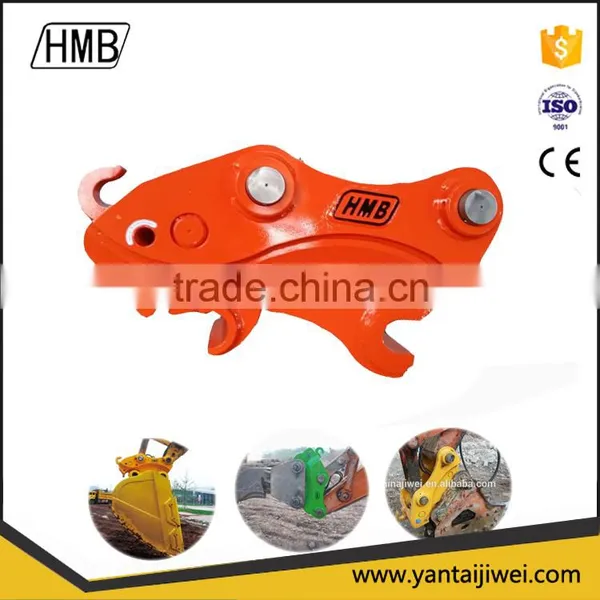

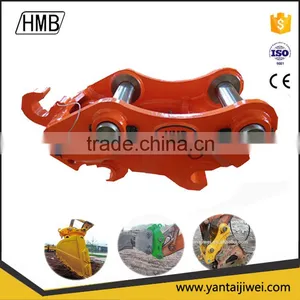

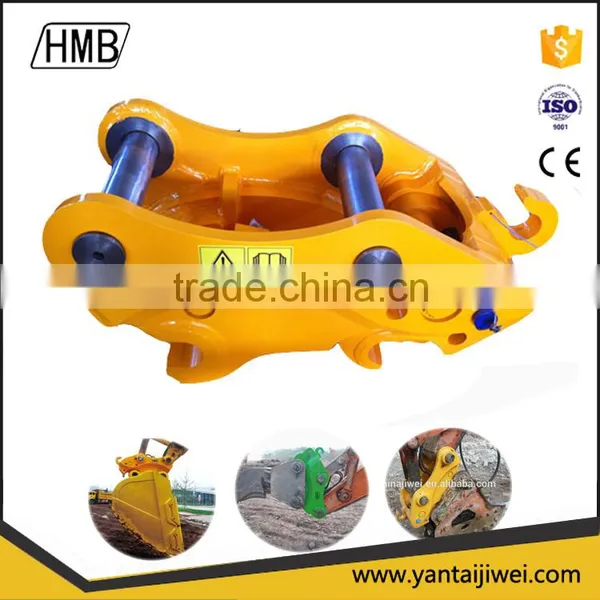

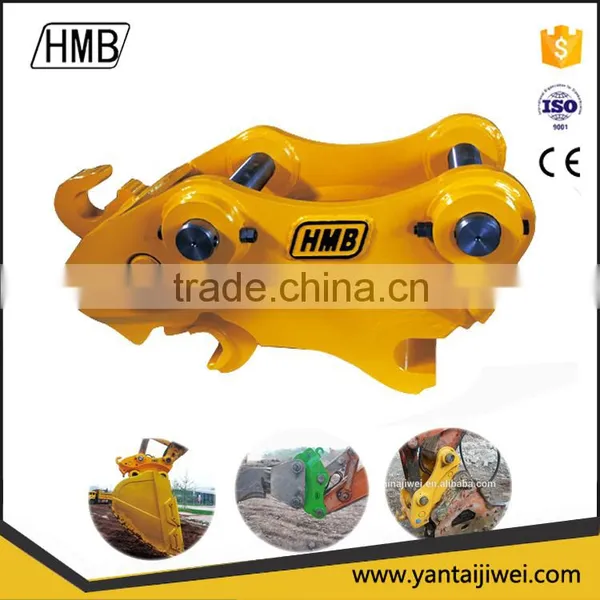

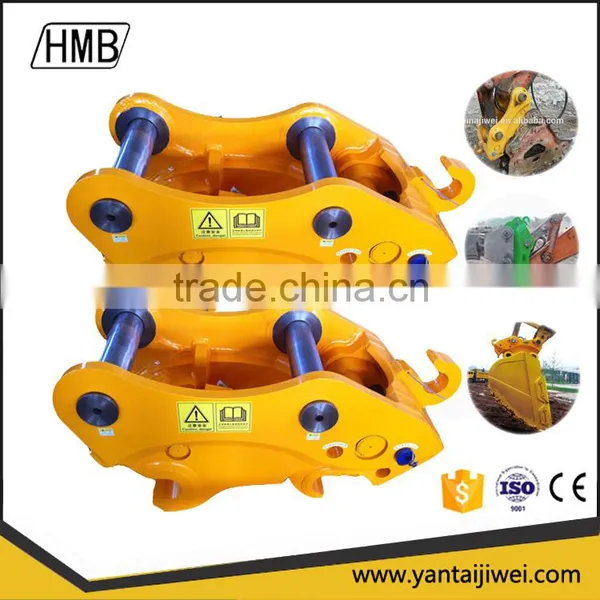

Hydraulic excavator bucket quick couplers for sales
Products model:
| MODEL | Unit | Mini | HMB02 | HMB04 | HMB06 | HMB08 | HMB08S | HMB10 | HMB17 |
| Operating Weight | Kg | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 |
| Overall Length(C) | mm | 300-450 | 520-542 | 581-610 | 760 | 920-955 | 950-1000 | 965-1100 | 1005-1150 |
| Overall Height(G) | mm | 225-270 | 312 | 318 | 400 | 512 | 512-540 | 585 | 560-615 |
| Overall Width(B) | mm | 150-250 | 260-266 | 265-283 | 351-454 | 450-483 | 445-493 | 543-572 | 602-666 |
| Forearm open Width(A) | mm | 82-180 | 155-172 | 180-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-480 |
| Retractable distance of oil cylinder (E) | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 560-650 |
| Pin Diameter | mm | 20-40 | 40-45 | 45-55 | 50-70 | 70-90 | 90 | 90-100 | 100-110 |
| Top to bottom pin distance (F) | mm | 170-190 | 200-210 | 205-220 | 240-255 | 300 | 320 | 350-370 | 370-380 |
| Pin to Pin Center Distance (D) | mm | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 520-630 |
| Working pressure | Kg/cm2 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
| Oil flow | l/min | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | ‘10-20 | 10-20 |
| Suitable excavator | ton | ‘1-4 | ’4-6 | ‘6-9 | ’10-16 | ‘18-25 | ’25-26 | ‘26-30 | 30-40 |
Details:
1). One Body Design
2). Versatility
3).Double Safety System
4).Competitive Price
Application:
Story of us
Located in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co., Ltd registered HMB Brand in 2011.
We started to develop oversea market in 2013.
With 8 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
Our products have been exported to many countries in the world including India, Saudi Arabia, Iran, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
Our service:
1)7Days *24Hours hot line and email service
2)Your inquiry related to our products or prices will be replied in 24 hours
3)Well-Retrained and experience staffs to answer all your questions
4)OEM and ODM is available.
5)How do you buy our product:
a. Let me know your excavator model
b. Let me know the operation weigh of your excavator
c. Let me know your ordering quantity
d. Let me know your destination port
Export package
Standard spare parts: two Chisel, two hoses, one spare seal kits, one Nitrogen bottle, one charging kit, one tool box and the User's Manual.
