Excavator

Name: Excavator
Brand: shenwa
SKU: 132822175
Availability: InStock

US$ 26,000 - 28,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

shenwa

Model Number:

sw-60C

Qingzhou Shenwa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name shenwa

Model Number sw-60C

Condition New

Moving Type Crawler Excavator

Bucket capacity 0.4m³

Maximum Digging Height 5300mm

Maximum Digging Depth 3300mm

Machine Weight 5800kg

Max Digging Radius 5700mm

Specifications

The microcomputer control;
Hydraulic steering;
Sliding folding front window;
Adopts hydraulic motor speed

Quick Details

Place of Origin: Shandong China (Mainland)	Brand Name: Shenwa	Model Number: SW-60C
Condition: New	Moving Type: Wheel Excavator	Operating Weight: 5800
Bucket capacity: 0.4m3	Maximum Digging Height: 5300mm	Maximum Digging Depth: 3300mm
Machine Weight: 5800kg	Max Digging Radius: 5700mm	Engine model: 4102
Max.swing angle of boom: 360°	Digging frequency: 3-5times/min

Packaging & Delivery

Packaging Detail:	Naked
Delivery Detail	30 days after the order is confirmed

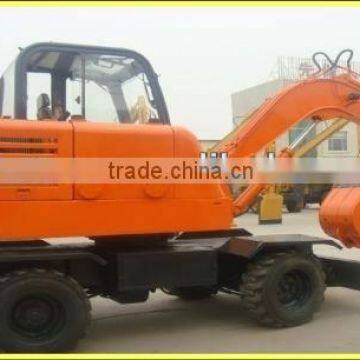

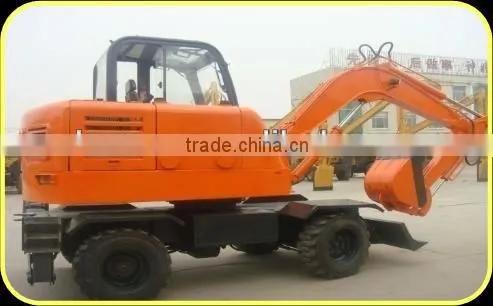

Shenwa Wheel Excavator

Model:SW-60C

Technical & Specifiction Parameter

Max. digging depth	3300mm
Max. digging height	5300mm
Max. digging radius	5700mm
Max. dumping height	3900mm
Engine model	WEICHAI 4102
Rated power	44kw
Total weight	5600kg
Bucket capacity	0.4m³
Hydraulic system working pressure	20MPa
Max. flux	63ml/r
Working efficiency	60-80m³/h
Digging frequency	3-5times/min
Gradeability	25%
Max. traction	27.4kn
Walking speed	<=35km/h
Max. swing angle of boom	360°
Overall dimension (LWH)	608019802870mm
Distance between axles	2000mm
Min. ground clearance	220mm
Ground clearance (Counterweight)	1000mm
