Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Mini Wheel Loader

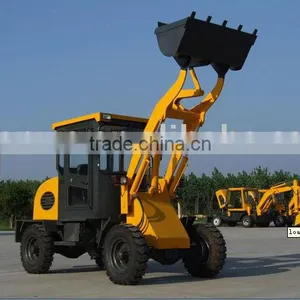

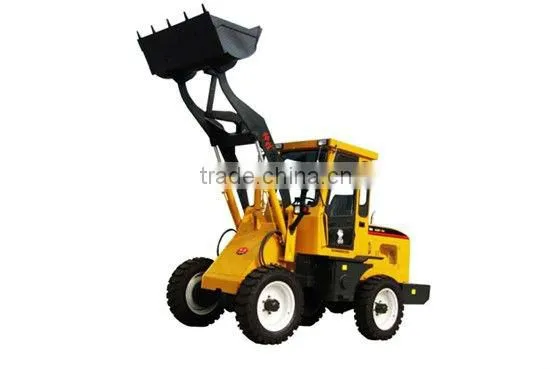

Mini Wheel Loader
US$ 5,600 - 5,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
shenwa
Model Number:
SZ-08
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
shenwa
Model Number
SZ-08
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
4300*1430*2250mm
Rated Load
800kg
Specifications
1 With humanized equipments2 Low fuel consumption
3.Low noise
4 Hydraulic dual-variable
5.Full hydraulic steering sys
Shenwa SZ-08 Mini loader
| SZ-08 LOADER | |
| WORKING RANGE | |
| MAX.DUMPING HEIGHT | 2400mm |
| MAX.DUMPING DISTANCE | 900mm |
| MAX.LIFTING HEIGHT | 3000mm |
| MIN.GROUND CLEARANCE | 200mm |
| DISTANCE BETWEEN AXLES | 1550mm |
| TREAD | 1200mm |
| OVERALL DIMENSION(L*W*H) | 4300*1430*2250mm |
| ENGING | |
| MODEL | Z124YAM |
| RATED POWER | 18.7KW |
| RATED REVOLUTION | 2200r/min |
| HYDRAULIC SYSTEM WORKING PRESSURE | 16Mpa |
| MAX.FLUX | 32ml/r |
| SPECIFICATIONS | |
| RATED LOADING MASS | 800Kg |
| GRADEABILITY | 25% |
| MIN.WALKING SPEED | 10km/h |
| LIFTING TIME OF MOVABLE ARM | 4.5s |
| SUMMATIONAL TIME | 10s |
| LIFTING TIME OF MOVABLE ARM | 3.0s |
| MAX.WALKING SPEED | 25km/h |
| MAX.GROUND CLEARANCE | 10kn |
| MIN.GROUND CLEARANCE | 3200mm |
