50 Wheel Loader
US$ 48,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
shenwa
Model Number:
SZ50
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
shenwa
Model Number
SZ50
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
7836*3010*3300mm
Rated Load
5000kg

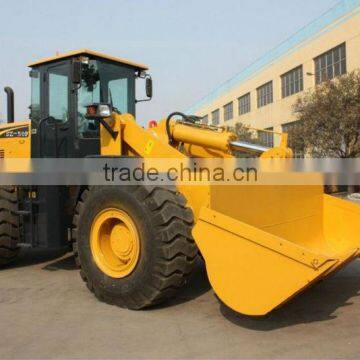

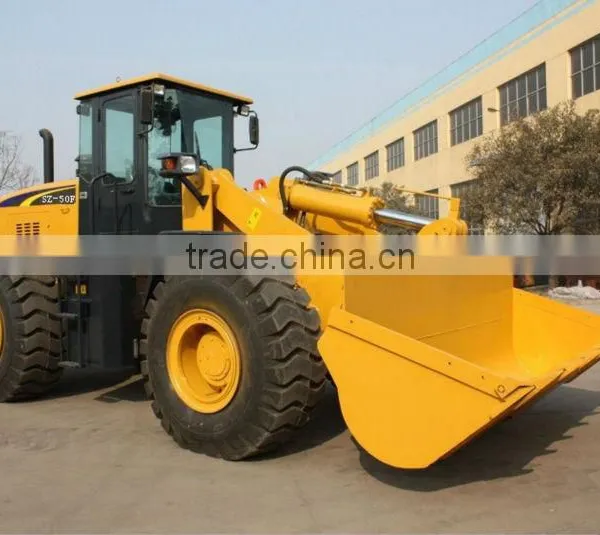

Shenwa SZ50 Wheel loader, 50 loader
3m3 Bucket Capacity with 5000kg Loading Weight
162kw Weichai STEYR engine
FEATURES |
| Streamlined appearance ,beautiful and elegant. |
| Weichai STEYR engine, rated power,162kw/2200rmp . |
Torque converter and counter-shaft transmission gearbox-Komatsu tecnology |
SPECIFICATIONS | |
| Rated capacity | 3m3 |
| Rated weight | 5000Kg |
| Operating weight | 16000Kg |
| Performance of bucket being set level | Yes |
| Static tilting load at full steering position | 98KN |
| Max breakout force | 172KN |
| Max drawbar pull | 159KN |
| Max grade ability | 30° |
| Total of three time:lifting,dumping, lowering | 11s |
| Max dump height | 3098mm |
| Max dump reach | 1198mm |
| Min ground clearance | 450mm |
| Wheel base | 3200mm |
| Overall dimensions(length*width*height) | 7836*3010*3300mm |
| Pattern | Inline,water cooled, dir inject,fourstrokees |
| Cylinder-bore*stroke | 6-126*130 |
| Max torsion | 779Nm |
| Model of engine | Weichai WD10G220E11 |
| Rated power | 162KW |
| Min fuel consuming rate | 214g/kw.h |
| Specified rotational speed | 2200r/min |
| Model of torque device | YJ375 |
| Pattern | 3-element,single stage |
| Number of great shift | 4 forward,4 revers |
| Max travel speed | 38km/h |
| Main reducer type | Spiral bevel gear, moderationof first stage |
| Pattern of wheelside moderation | Single stage planetary |
| Type size | 23.5-25 |
| Front type pressure | 392KPa |
| Rear type pressure | 343KPa |
| Pattern | Articulated and hydraulic steering,load sensing meets |
| Steering angle(each direction) | 35°C±1 |
| Min turning radius(outside of bucket) | 7268mm |
| Valve distributing working | DF32·2C |
| Working pumps | CBG3100 |
| Brake system | Air assisted oil type four wheel brake |
| Parking brake | Air cutting control inner expand hoof |
| Fuel capacity | 320L |
Pressure of working hydraulic system |
160 |
