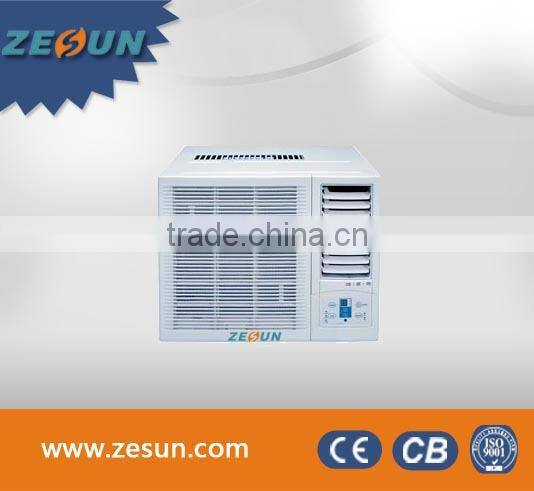

Room Compact Window Type Style Air Conditioniner,T3 Working Condition
Negotiable
MOQ: 500 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
ZESUN or OEM
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Room Compact Window Type Style Air Conditioning Units,T3 Working ConditionNegotiableMOQ: 500 Sets -
Window Type Style Air Conditioning Units,T3 Working ConditionNegotiableMOQ: 500 Sets
-
Window Type Style Air Conditioning Units,T3 Working ConditionNegotiableMOQ: 500 Sets
-
Home Use Window Type Style Air Conditioning Units,T3 Working ConditionNegotiableMOQ: 500 Sets
-
Home Use Mini Window Type Style Air Conditioning Units,T3 Working ConditionNegotiableMOQ: 500 Sets
Condition
New
Brand Name
ZESUN or OEM
Place of Origin
Guangdong, China
Use
Room
Power Source
Electrical
Power Type
DC
Type
Window Mounted Air Conditioners
Cooling/Heating
Cooling Only
Certification
CB, CE, EMC, Other, SASO, UL, CB, CE, EMC, RoHS, SASO, UL
Capacity (btu)
5000
EER
2.81
Power (W)
2530
Voltage (V)
220
Model Number
KC-18
Specifications
Professional OEM air conditioner manufacturersProvide high quality air conditioner with competitive prices
CE CB SASO SONCA
5000 BTU T3 Window Unit Type Air conditioner
Features:
1) High efficiency compressor
2) Hydrophilic fins with inner Threads copper tube
3)Quiet and Moden design
4)Remote Control
5)Sleep operation
6) Washable filter
7)Wide Voltage Range from 187V_240V
8)Option for auto restart function
9) humidity control
Specification:
| Technical Specifications (Window System) | ||||||
| Model No. | TAC-18CW/*T | TAC-18CHW/*T | TAC-24CW/*T | TAC-24CHW/*T | ||
| Type | Cooling only | Electric Heating | Cooling only | Electric Heating | ||
| Cooling capacity(T1) | W | 5,090 | 5,090 | 5,610 | 5,610 | |
| Cooling capacity(T3) | W | 4,320 | 4,320 | 4,870 | 4,870 | |
| Heating capacity(T1) | W | N.A | 3,330 | N.A | 3,330 | |
| EER for cooling(T1) | W/W | 2.82 | 2.82 | 2.59 | 2.59 | |
| EER for cooling(T3) | W/W | 1.97 | 1.97 | 1.93 | 1.93 | |
| Moisture removal | Liters/h | 1.9 | 1.9 | 2.1 | 2.1 | |
| Pressure | High(DP) | MPa | 3.0 | 3.0 | 3.0 | 3.0 |
| Low(SP) | MPa | 1.2 | 1.2 | 1.2 | 1.2 | |
| Indoor noise level | dB(A) | 55 | 55 | 55 | 55 | |
| Outdoor noise level | dB(A) | 61 | 61 | 62 | 62 | |
| Electrical Data | ||||||
| Power supply | ||||||
| Voltage Range | V | 198~242 | 198~242 | 198~242 | 198~242 | |
| Current | Cooling(T1) | A | 8.6 | 8.6 | 10.2 | 10.2 |
| Cooling(T3) | A | 10.3 | 10.3 | 11.8 | 11.8 | |
| Heating | A | N.A | 16.4 | N.A | 16.4 | |
| Power input | Cooling(T1) | W | 1800 | 1800 | 2165 | 2165 |
| Cooling(T3) | W | 2190 | 2190 | 2525 | 2525 | |
| Heating | W | N.A | 3590 | N.A | 3590 | |
| Max Current | Cooling | A | 11.2 | 11.2 | 13.3 | 13.3 |
| Heating | A | N.A | 21.3 | N.A | 21.3 | |
| Max Power input | Cooling | W | 2340 | 2340 | 2820 | 2820 |
| Heating | W | N.A | 4670 | N.A | 4670 | |
| Refrigerating System | ||||||
| Refrigerant/Charge | Gram | R22 | R22 | R22 | R22 | |
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | |
| Brand | GMCC | GMCC | GMCC | GMCC | ||
| Evaporator | Hydrophilic & Louver Fin; Innergroover tube type (φ7) | |||||
| Condenser | Louver or Corrugated Fin; Innergroover tube type (φ5) | |||||
| Expansion device | Capillary tube | |||||
| Defrosting system | Microcomputer controlled reverse system | |||||
| Others | ||||||
| Net dimensions (W x H x D) | mm | 660×677×430 | 660×677×430 | 660×677×430 | 660×677×430 | |
| Net weight | kg | 50 | 51 | 53 | 54 | |
| Packing dimensions (W x H x D) | mm | 740×795×468 | 740×795×468 | 740×795×468 | 740×795×468 | |
| Gross weight | kg | 54 | 55 | 57 | 58 | |
Remark:
1). Panels Optional.
2). Optional Function: Cool Only, Cool & Heat
3). Optional Refrigerant: R22, R410A
4). Optional Frequency: 50Hz, 60Hz
5). 1% free spare parts.
6). 5 / 3 years warranty for compressor / whole unit.
