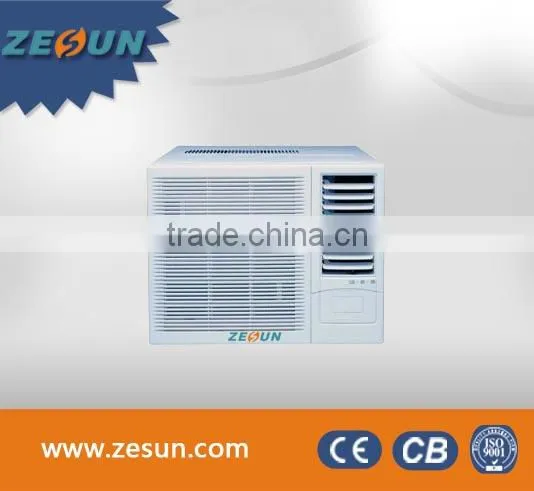

18000 BTU 220-240V/50HZ R22 Room Compact Window Type Style Air Conditioning
Negotiable
MOQ: 500 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
ZESUN or OEM
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18000 BTU 220-240V/50HZ R22 Room Compact Window Type Style Air Conditioning,Window AC Price,Air Conditioner TonNegotiableMOQ: 500 Sets -
18000 BTU 220-240V/50HZ R22 Room Compact Window Type Style Air Conditioning,Air Conditioner TonNegotiableMOQ: 500 Sets
-
5000 BTU 220-240V/50HZ R22 T3 Room Compact Window Type Style Air ConditioninNegotiableMOQ: 500 Sets
-
Brand-New Window Type Style Air Conditioniner ConditioningNegotiableMOQ: 500 Sets
-
Brand-New Cheap Window Type Style Air Conditioniner ConditioningNegotiableMOQ: 500 Sets
Condition
New
Brand Name
ZESUN or OEM
Place of Origin
Guangdong, China
Use
Room
Power Source
Electrical
Power Type
DC
Type
Window Mounted Air Conditioners
Cooling/Heating
Cooling Only
Certification
CB, CE, EMC, Other, SASO, UL, CB, CE, EMC, RoHS, SASO, UL
Capacity (btu)
18000
EER
2.81
Power (W)
2530
Voltage (V)
220
Model Number
KC-18
Specifications
Professional OEM air conditioner manufacturersProvide high quality air conditioner with competitive prices
CE CB SASO SONCA
18000 BTU Window Type Air conditioner
Features:
1) High efficiency compressor
2) Hydrophilic fins with inner Threads copper tube
3)Quiet and Moden design
4)Remote Control
5)Sleep operation
6) Washable filter
7)Wide Voltage Range from 187V_240V
8)Option for auto restart function
9) humidity control
Specification:
| Model | KC-18 | KC-24 | KC-30 | ||
| Power supply | Ph-V-Hz | 1Ph ,220-240V~,50Hz | 1Ph ,220-240V~,50Hz | 1Ph ,220-240V~,50Hz | |
| Cooling | Capacity | Btu/h | 18000 | 24000 | 30000 |
| Input | W | 2100 | 2928 | 3660 | |
| Rating current | A | 9.7 | 13.3 | 15.2 | |
| EER | W/W | 2.41 | 2.21 | 2.21 | |
| Max. input consumption | W | 2500 | 3500 | 4000 | |
| Max. current | A | 12 | 18 | 19 | |
| Compressor | Model | PH290X2C-4FT1 | QP407PAA | QP442PAD | |
| Type | ROTARY | ROTARY | ROTARY | ||
| Brand | TOSHIBA | LG | LG | ||
| Capacitor | uF | 35 | 60 | 50 | |
| Evaporator | a.Number of rows | 2 | 3 | 3 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | 21x13.37 | 25.4x22 | |
| c.Fin spacing | mm | 1.3 | 1.3 | 1.3 | |
| d.Fin type (code) | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | innergroove tube | Innergroove tube | Innergroove tube | |
| f.Coil length x height x width | mm | 390x378x26.74 | 390x378x40.11 | 360x381x40.11 | |
| g.Number of circuits | 4 | 4 | 2 | ||
| Condenser | a.Number of rows | 1 | 2 | 2 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | 19.5x11.6 | 19.5x11.6 | |
| c.Fin spacing | mm | 1.3 | 1.2 | 1.2 | |
| d.Fin type (code) | Unhydrophilic aluminium | Unhydrophilic aluminium | Unhydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | φ7,Innergroove tube | φ5,Innergroove tube | φ5,Innergroove tube | |
| f.Coil length x height x width | mm | 692x399x13.37 | 677x390x23.2 | 677x390x23.2 | |
| g.Number of circuits | 2 | 3 | 3 | ||
| Refrigerant type | kg | R22/0.5 | R22/0.75 | R22/0.73 | |
| Design pressure | MPa | 2.6/1.0 | 2.6/1.0 | 2.6/1.0 | |
| Thermostat type | Mechanical control | Mechanical control | Mechanical control | ||
| Operation temp | indoor(cooling/heating) | °C | 17-32/--- | 17-32/--- | 17-32/--- |
| outdoor(cooling/heating) | °C | 18-43/--- | 18-43/--- | 18-43/--- | |
| Application area | m2 | 23-39 | 31-51 | 34-57 | |
| Dimension(W*D*H) | mm | 660x680x428 | 660x680x428 | 660x680x428 | |
| Packing (W*D*H) | mm | 725x795x475 | 725x795x475 | 725x795x475 | |
| Net/Gross weight | Kg | 48/50 | 58/62 | 59/63.5 | |
| Qty’per 20’ /40’ /40'HQ | 113/225/225 | 113/225/225 | 113/225/225 | ||
Remark:
1). Panels Optional.
2). Optional Function: Cool Only, Cool & Heat
3). Optional Refrigerant: R22, R410A
4). Optional Frequency: 50Hz, 60Hz
5). 1% free spare parts.
6). 5 / 3 years warranty for compressor / whole unit.
