Home > Industrial Equipment & Components > Refrigeration Equipment > Industrial Air Conditioner > 18000 BTU 2 HP Horsepower 220-240V/50HZ R22 Low Power Consumption Window Type Air Conditioning,The Chinese Air Conditioning

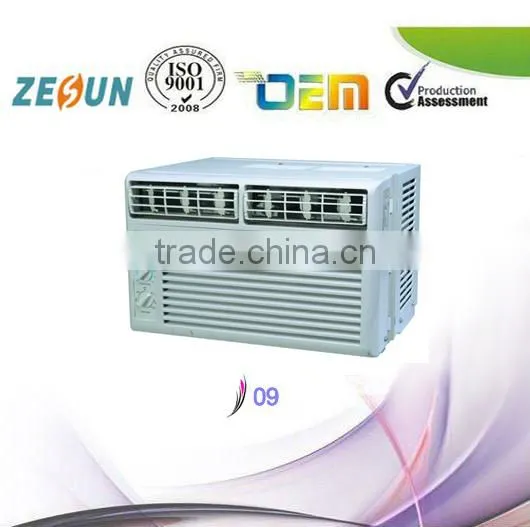

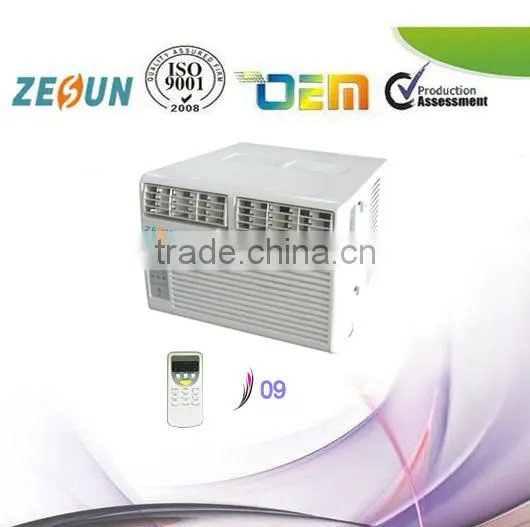

18000 BTU 2 HP Horsepower 220-240V/50HZ R22 Low Power Consumption Window Type Air Conditioning,The Chinese Air Conditioning
Negotiable
MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
ZESUN or OEM
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18000 BTU 2 HP Horsepower 220-240V/50HZ R22 Low Power Consumption Window Type Air ConditioningNegotiableMOQ: 500 Sets -
18000 BTU 2 HP Horsepower 220-240V/50HZ R22 Low Power Consumption Room Mini Window Type Air ConditioningNegotiableMOQ: 500 Sets
-
18000 BTU 2 HP Horsepower 220-240V/50HZ R22 Brand Name Room Mini Window Type Air ConditioningNegotiableMOQ: 500 Sets
-
Low Energy 18000 BTU 220-240V/50HZ R22 Brand Name Room Window Type Air Conditioning,Desert Air ConditionerNegotiableMOQ: 500 Sets
-
Low Energy 18000 BTU 220-240V/50HZ R22 Brand Name Room Window Type Air Conditioner Power SaverNegotiableMOQ: 500 Sets
Condition
New
Brand Name
ZESUN or OEM
Place of Origin
Guangdong, China
Use
Room
Power Source
Electrical
Power Type
DC
Type
Window Mounted Air Conditioners
Cooling/Heating
Cooling Only
Certification
CB, CE, EMC, Other, SASO, UL, CB, CE, EMC, RoHS, SASO, UL
Capacity (btu)
18000
COP
3.2
EER
3.2
Power (W)
5100
Voltage (V)
220
Model Number
KC-51
18000 BTU 2 Ton Window Type Air conditioner
Features:
1) High efficiency compressor
2) Hydrophilic fins with inner Threads copper tube
3)Quiet and Moden design
4)Remote Control
5)Sleep operation
6) Washable filter
7)Wide Voltage Range from 187V_240V
8)Option for auto restart function
9) humidity control
Specification:
| Model | KC-18 | KC-24 | KC-30 | ||
| Power supply | Ph-V-Hz | 1Ph ,220-240V~,50Hz | 1Ph ,220-240V~,50Hz | 1Ph ,220-240V~,50Hz | |
| Cooling | Capacity | Btu/h | 18000 | 24000 | 30000 |
| Input | W | 2100 | 2928 | 3660 | |
| Rating current | A | 9.7 | 13.3 | 15.2 | |
| EER | W/W | 2.41 | 2.21 | 2.21 | |
| Max. input consumption | W | 2500 | 3500 | 4000 | |
| Max. current | A | 12 | 18 | 19 | |
| Compressor | Model | PH290X2C-4FT1 | QP407PAA | QP442PAD | |
| Type | ROTARY | ROTARY | ROTARY | ||
| Brand | TOSHIBA | LG | LG | ||
| Capacitor | uF | 35 | 60 | 50 | |
| Evaporator | a.Number of rows | 2 | 3 | 3 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | 21x13.37 | 25.4x22 | |
| c.Fin spacing | mm | 1.3 | 1.3 | 1.3 | |
| d.Fin type (code) | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | innergroove tube | Innergroove tube | Innergroove tube | |
| f.Coil length x height x width | mm | 390x378x26.74 | 390x378x40.11 | 360x381x40.11 | |
| g.Number of circuits | 4 | 4 | 2 | ||
| Condenser | a.Number of rows | 1 | 2 | 2 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | 19.5x11.6 | 19.5x11.6 | |
| c.Fin spacing | mm | 1.3 | 1.2 | 1.2 | |
| d.Fin type (code) | Unhydrophilic aluminium | Unhydrophilic aluminium | Unhydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | φ7,Innergroove tube | φ5,Innergroove tube | φ5,Innergroove tube | |
| f.Coil length x height x width | mm | 692x399x13.37 | 677x390x23.2 | 677x390x23.2 | |
| g.Number of circuits | 2 | 3 | 3 | ||
| Refrigerant type | kg | R22/0.5 | R22/0.75 | R22/0.73 | |
| Design pressure | MPa | 2.6/1.0 | 2.6/1.0 | 2.6/1.0 | |
| Thermostat type | Mechanical control | Mechanical control | Mechanical control | ||
| Operation temp | indoor(cooling/heating) | °C | 17-32/--- | 17-32/--- | 17-32/--- |
| outdoor(cooling/heating) | °C | 18-43/--- | 18-43/--- | 18-43/--- | |
| Application area | m2 | 23-39 | 31-51 | 34-57 | |
| Dimension(W*D*H) | mm | 660x680x428 | 660x680x428 | 660x680x428 | |
| Packing (W*D*H) | mm | 725x795x475 | 725x795x475 | 725x795x475 | |
| Net/Gross weight | Kg | 48/50 | 58/62 | 59/63.5 | |
| Qty’per 20’ /40’ /40'HQ | 113/225/225 | 113/225/225 | 113/225/225 | ||
Remark:
1). Panels Optional.
2). Optional Function: Cool Only, Cool & Heat
3). Optional Refrigerant: R22, R410A
4). Optional Frequency: 50Hz, 60Hz
5). 1% free spare parts.
6). 5 / 3 years warranty for compressor / whole unit.
