Specifications

1) Reliable quality---the defective rate below 0.05%.
2) Five years warranty for compressors and three years for whole units

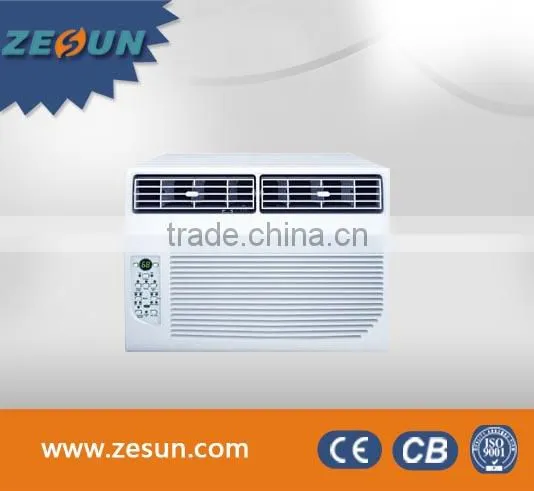

9000 BTU Window Type Air Conditioner Wholesale

1) Reliable quality---the defective rate below 0.05%.
2) Five years warranty for compressors and three years for whole units respectively.
3) Delivery: Within 45days after confirming the L/C .
4) Certificate--- CE, RHOS,C-TICK, EMC, BV, ISO9001,SAA,CB,TUV,SASO,GS,UL, etc..
5) Compressor Brand: MITSUBISHI, PANASONIC, TOSHIBA, HITACHI
6) 1% free parts of the total FOB amount.
7)OEM service.



Specification:





Model			KC-07	KC-09	KC-12
Power supply		Ph-V-Hz	1Ph ,220-240V~,50Hz	1Ph ,220-240V~,50Hz	220-240V~ 50Hz, 1Ph
Cooling	Capacity	Btu/h	7000	9000	12000
	Input	W	850	1030	1500
	Rating current	A	3.8	4.5	6.8
	EER	W/W	2.41	2.41	2.34
Compressor	Model		PH120X1CY-4BGDE2	PH150M1B-4DZD2	PH215M2C-4FT
	Type		ROTARY	ROTARY	ROTARY
	Brand		TOSHIBA	TOSHIBA	TOSHIBA
	Capacitor	uF	25	30	35
Condenser	a.Number of rows		3	3	1
	b.Tube pitch(a)x row pitch(b)	mm	19.5x11.6	19.5x11.6	19.5x11.6
	c.Fin spacing	mm	1.3	1.3	1.3
	d.Fin type (code)		UnHydrophilic aluminium	UnHydrophilic aluminium	Unhydrophilic aluminium
	e.Tube outside dia.and type	mm	Φ5,innergroove tube	Φ5 ,innergroove tube	Φ5 ,innergroove tube
	f.Coil length x height x width	mm	370x331x34.8	370x331x34.8	621x351x11.6
	g.Number of circuits		2	2	1
Refrigerant type		kg	R22/0.26	R22/0.28	R22/0.4
Design pressure		MPa	2.6/1.0	2.6/1.0	2.6/1.0
Operation temp	indoor(cooling/heating)	°C	17-32/---	17-32/---	17-32/---
	outdoor(cooling/heating)	°C	18-43/---	18-43/---	18-43/---
Application area		m2	10-17	12-21	18-29
Dimension(W*D*H)		mm	450x535x346	450x535x346	600x560x380
Packing   (W*D*H)		mm	495x580x435	495x580x435	685x620x430
Net/Gross weight		Kg	25/27	26/27.5	43/47
Qty’per 20’ /40’ /40'HQ			220/480/576	220/480/576	135/285/342
