Backhoe Loader
US$ 36,000 - 38,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SHENWA
Model Number:
SZ40-15
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
SHENWA
Model Number
SZ40-15
Place of Origin
Shandong, China
Type
Backhoe Loader
Moving Type
Wheel Loader
Rated Load
5500kg
Certification
ISO9001

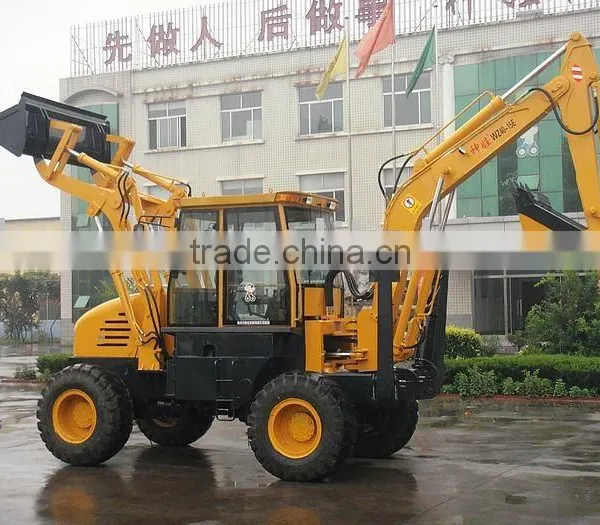

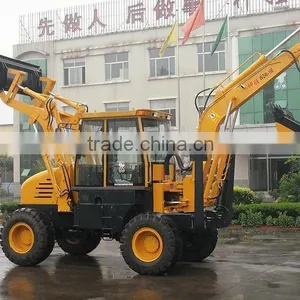

Shenwa SZ40-15, Backhoe loader
74kw Cummins engine
0.4 cbm excavator bucket
1.5T loading weight
| TECHNICAL | PARAMETERS |
|---|---|
| Max.Digging Depth | 3000mm |
| Max.Digging Height | 5600mm |
| Max.Digging Radius | 5200mm |
| Max.Digging Height | 4300mm |
| Bucket Capacity | 0.4m3 |
| Working Efficiency | 30-60m3/h |
| Working Times | 4-7times/min |
| Max. Hauling Force | 29kn |
| Max. Swing Angle of Boom | 180° |
| Max.Dumping Height | 2900mm |
| Min. Rotary Radius | 5000mm |
| Max.Dumping Distance | 950mm |
| Rated Loading Mass | 1500kg |
| Lifting Time of Movable Arm | 3.5s |
| Falling Time of Movable Arm | 2.5s |
| Summational Time | 7.0s |
| Max. Breakout Force | 10.5kn |
| Model | 4BTA3.9-C100 |
| Rated Power | 74kw |
| Rated Revolution | 2400r/min |
| Working Pressure | 28MPa |
| Max.Flux | 63ml/r |
| Total Weight | 5500kg |
| Gradeability | 25% |
| Walking Speed | ≤39km/h |
| Distance Between Axles | 2700mm |
| Min. Ground Clearance | 250mm |
| Overall Dimension(L×W×H) | 7600×2005×2700mm |
