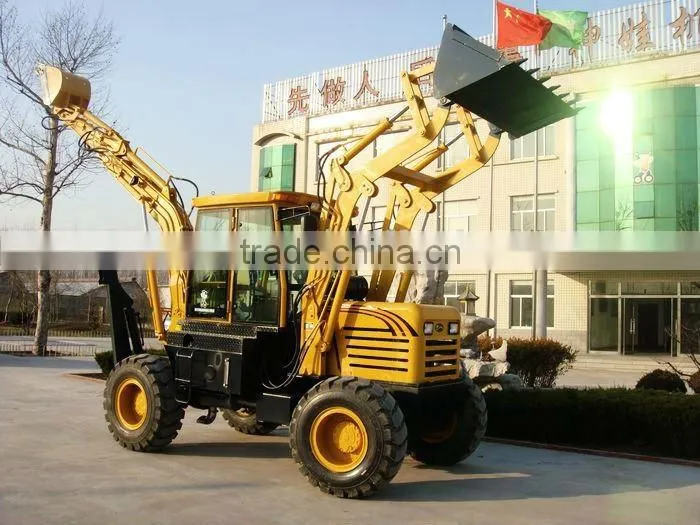

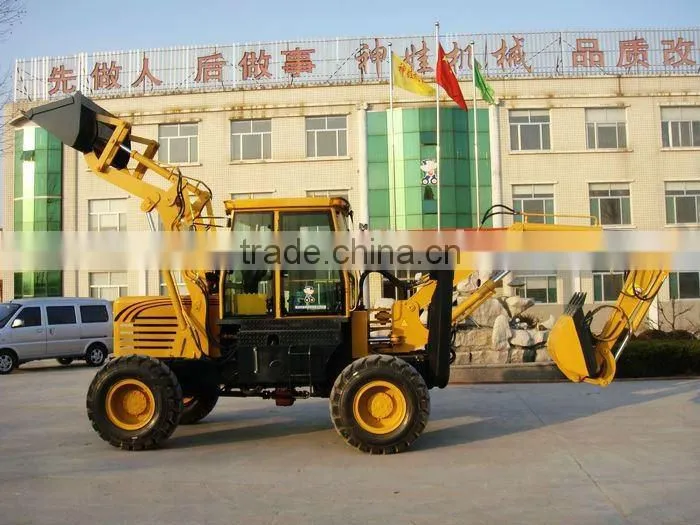

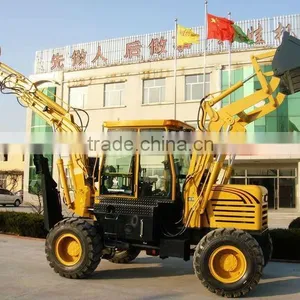

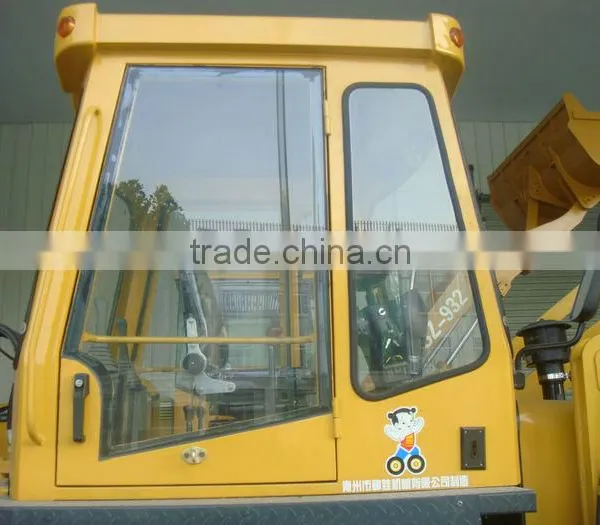

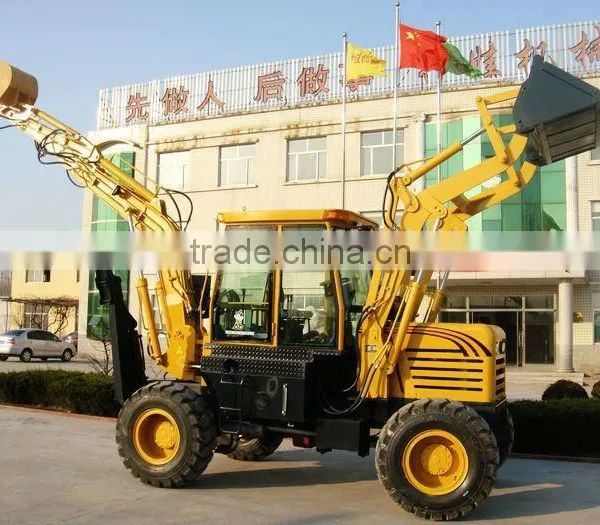

Hot Sale! Backhoe Loader
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
ShenWa
Model Number:
SZ40-15E
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4*4 Backhoe LoaderUS$ 45,000 - 55,000MOQ: 1 Set -
Four Wheels Drive Small Backhoe,backhoe LoaderUS$ 15,000 - 23,000MOQ: 1 Set
-
SW40-15E WHEEL BACKHOE LOADERUS$ 47,000 - 47,000MOQ: 1 Set
-
SZ40-15E Backhoe Loader,backhoe,digger and LoaderNegotiableMOQ: 1 Set
-
Cheap Xugong Backhoe Loader New!!NegotiableMOQ: 1 Set
Condition
New
Brand Name
ShenWa
Model Number
SZ40-15E
Place of Origin
Shandong, China
Type
Backhoe Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
7600*2005*2700
Rated Load
1500kg
After-sales Service Provided
Overseas service center available
Specifications
1.Backet capacity:0.4m32.Digger capacity:3000mm
3.Loading capacity:1500kg
4.Name: mini backhoe loader quote
Name: mini backhoe loader quote
Model |
SW40-15E |
|
|
Excavator
|
Max.digging height(mm) |
3000 |
Max.digging radius(mm) |
5200 |
|
Max dumping Height(mm) |
4300 |
|
Max.digging depth(mm) |
3000 |
|
Bucket capacity |
0.4m³ |
|
Working Efficiency |
30-60m3/h |
|
Max traction force |
29 KN |
|
Engine |
Engine model |
4BTA3.9-C100 |
Engine Brand |
Cummins |
|
rated power |
74KW |
|
Hydraulic system working pressure |
28MPA |
|
Working Range |
Total weight |
5500kg |
Max flux |
63ml/r |
|
Grade ability |
25% |
|
Overall Dimension (l*w*h) |
7600×2005×2700mm |
|
Min ground clearance |
250mm |
|
working efficiency |
60-80m³/n |
|
Working speed |
≤39km/h |
|
|
Loader
|
Max.Dumping Height |
2900mm |
Max.Dumping Distance |
950mm |
|
Rated Loading Mass |
1500kg |
|
Lifting Time Of Movable Arm |
3.5s |
|
Descending Time Of Movable Arm |
2.5s |
|
Maximum Lifting Force |
10.5kn |
|
